Maximize Ground Clearance on Your Dodge One-Ton Build
Serious off-road builds on a Dodge one-ton platform need more than a modest lift to clear oversized tires. The Skyjacker SKYD800CKS-H suspension system delivers 7 to 8 inches of lift for 1974.5 to 1993 Dodge one-ton trucks, pairing new leaf springs and U-bolt kits with Hydro shocks for controlled articulation at extreme ride heights. The SKYD800CKS-H is engineered to correct pinion angle and preserve steering geometry despite the aggressive lift height, giving builders a dependable foundation for large tire and wheel packages. Every SKYD800CKS-H kit ships complete with the mounting hardware needed for a full front and rear installation.
Key Features
- Delivers 7 to 8 inches of front and rear lift for Dodge one-ton trucks
- Paired with Skyjacker Hydro shocks for controlled ride at extreme height
- Includes front leaf springs engineered for the SKYD800CKS-H application
- Front and rear U-bolt kits sized for factory axle tubes
- Rear lift block corrects pinion angle for smooth driveline operation
- Backed by Skyjacker's limited lifetime warranty
Fitment Table
| Year Range | Make | Model |
|---|---|---|
| 1974-1993 | Dodge | W300 |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | D800CKS-H |
| Brand | Skyjacker |
| Lift Height | 7 to 8 inch |
| Shock Type | Hydro |
| UPC | Not Published |

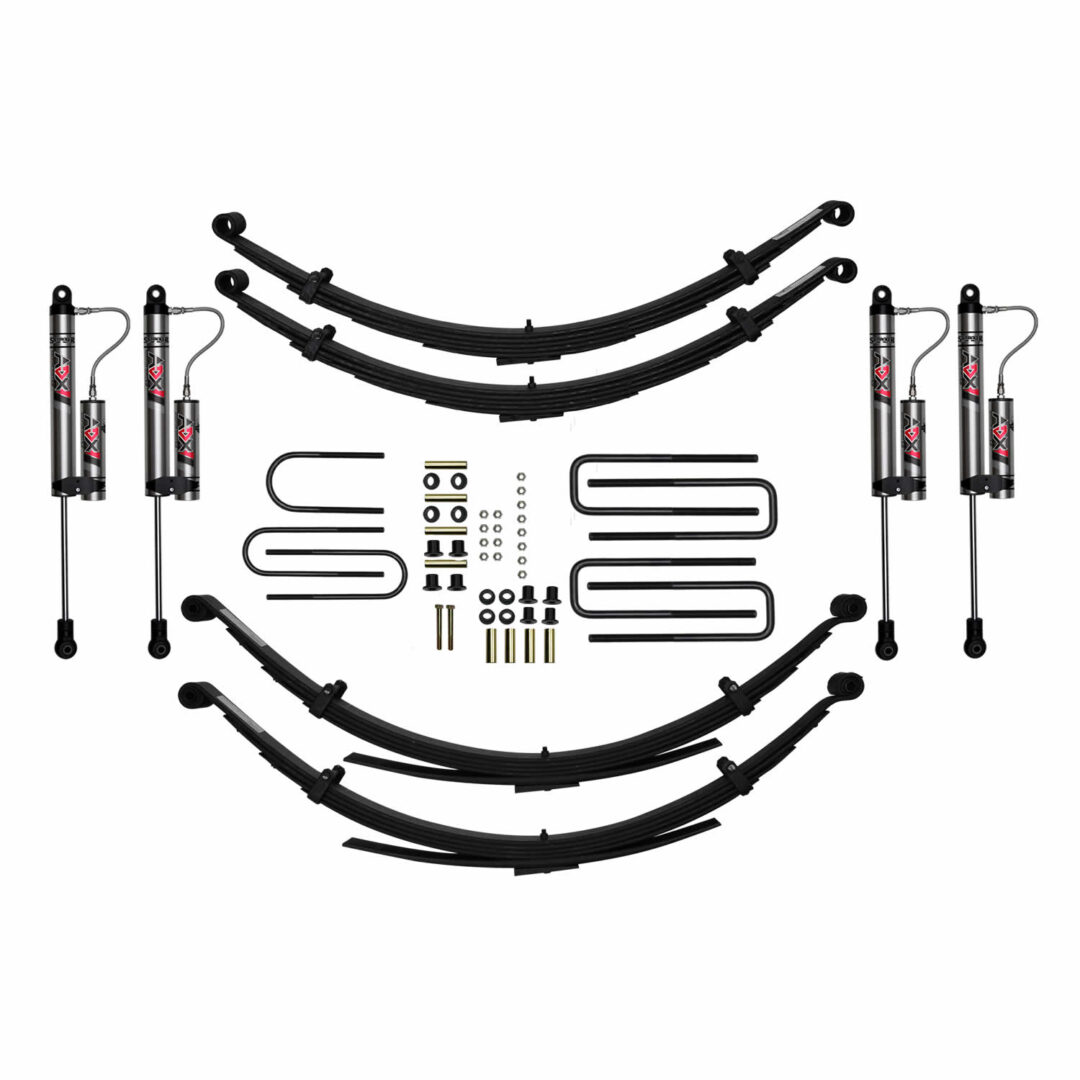

What's Included
- Front leaf springs
- Front and rear U-bolt kits
- Front spring bushing kit
- Rear lift block
- Hydro shocks
About Skyjacker
Skyjacker has engineered suspension lift systems in Louisiana since 1970, testing every kit including extreme lift systems like the SKYD800CKS-H to hold up to heavy off-road and towing demands.
Related Parts
- Skyjacker 3-4 inch lift kit for Dodge one-ton trucks (SKYD400CK-H)
FAQ
What is the SKYD800CKS-H?The SKYD800CKS-H is a Skyjacker suspension system that delivers 7 to 8 inches of lift for 1974.5 to 1993 Dodge one-ton trucks. It includes leaf springs, U-bolt kits, and Hydro shocks for a controlled ride at extreme lift height.
Does the SKYD800CKS-H require a pitman arm change?Some Dodge applications require an adjustable drag link or pitman arm at this lift height; check the SKYD800CKS-H install guide for your specific year.
What tire size does the SKYD800CKS-H support?The SKYD800CKS-H is designed to clear significantly larger tires than stock due to its 7 to 8 inch lift height.
Does the SKYD800CKS-H include shocks?Yes, the SKYD800CKS-H includes Skyjacker Hydro shocks matched to the lift height.
Will brake lines need to be replaced with the SKYD800CKS-H?Yes, extended brake lines are typically required at this lift height and should be ordered separately for the SKYD800CKS-H.
Is an alignment needed after installing the SKYD800CKS-H?Yes, a professional alignment is required after installing the SKYD800CKS-H.
What warranty covers the SKYD800CKS-H?The SKYD800CKS-H is backed by Skyjacker's limited lifetime warranty against manufacturing defects.
Can the SKYD800CKS-H be installed without a lift?A vehicle lift or jack stands and a floor jack are needed to safely install the SKYD800CKS-H.
Install Instructions
- Park on level ground, set the parking brake, and block the wheels.
- Raise the front of the vehicle and support with jack stands.
- Remove the front tires, shocks, and OEM leaf springs.
- Install the new Skyjacker front leaf springs and bushing kit.
- Raise the rear of the vehicle and support with jack stands.
- Remove the rear U-bolts and install the Skyjacker lift block and new U-bolts.
- Install the Hydro shocks front and rear.
- Lower the vehicle, torque all hardware, and schedule a professional alignment.
Prop 65 Warning
This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
