Build a Durable 8AN Fuel Line

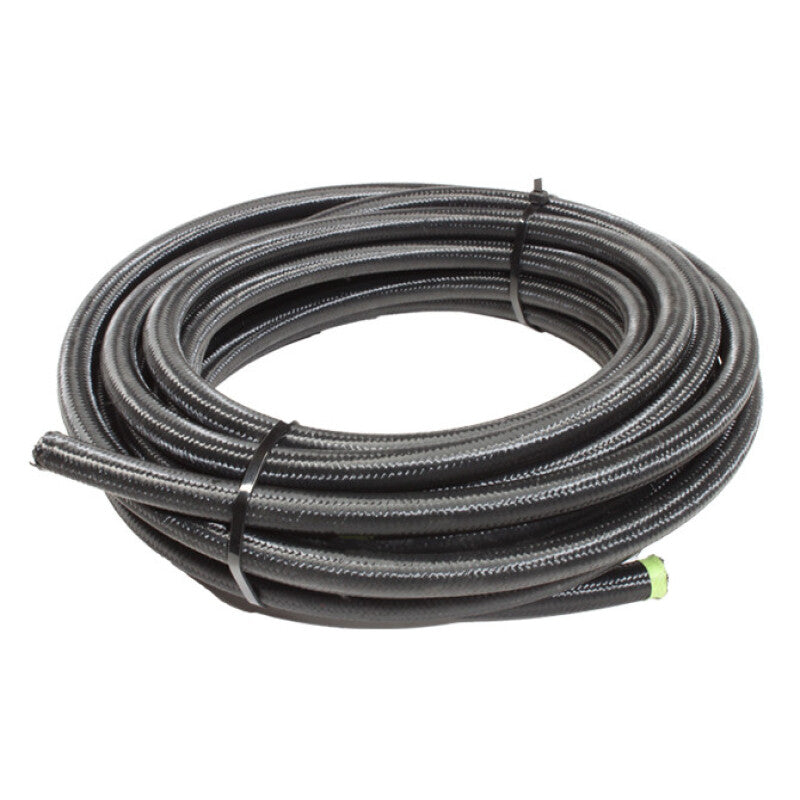

Snow Performance SNF-60830B provides 30 ft of cut to length 8AN hose for a custom fuel delivery system. Its PTFE liner is protected by stainless steel braid and a black nylon outer cover.
Key Features
- PTFE inner liner resists breakdown from common automotive fuels
- Stainless steel braid reinforces the hose
- Black nylon outer cover protects the braid and provides a clean appearance
- Compatible with gasoline, E85, E100, methanol, and diesel fuel
- Cut to length design supports custom routing
Fitment
| Fitment Scope | Application Requirements |
|---|---|
| Universal | Fuel systems that use 8AN PTFE hose and compatible PTFE hose ends |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | SNF-60830B |
| Hose Size | 8AN |
| Length | 30 ft |
| Inner Liner | PTFE |
| Reinforcement | Stainless steel braid |
| Outer Cover | Black nylon |
| Fuel Compatibility | Gasoline, E85, E100, methanol, and diesel |
What's Included
- One 30 ft coil of 8AN black nylon braided stainless PTFE hose
About Snow Performance
Snow Performance supplies fuel delivery components and accessories for performance automotive systems.
FAQ
What is the SNF-60830B?It is a 30 ft coil of universal 8AN PTFE fuel hose with stainless steel reinforcement and a black nylon cover.
Is this hose vehicle specific?No. It is a universal cut to length hose for compatible custom fuel systems.
Which fuels are compatible with this hose?The PTFE liner is compatible with gasoline, E85, E100, methanol, and diesel fuel.
Are hose ends included?No. The package contains the hose only, so compatible PTFE hose ends are required.
Can the hose be cut to a custom length?Yes. Measure the route and cut the hose squarely with a fine tooth saw or suitable snips.
Why is a PTFE liner used?PTFE provides chemical resistance and helps reduce fuel vapor odor compared with rubber lined hose.
What tools are needed for assembly?A secured vise, protective vise jaws, tape, a marker, a fine tooth saw or snips, pliers, lubricant, and AN wrenches are recommended.
Which fittings should be used?Use fittings and sleeves designed for 8AN PTFE hose, then follow the fitting instructions for correct assembly.
Installation Instructions
- Measure the required hose route and mark the cut location.
- Wrap tape around the cut area to control the stainless braid.
- Secure the hose in protected vise jaws and make a straight cut with a fine tooth saw or suitable snips.
- Fit the socket over the hose, remove the tape, and reshape the hose end carefully if needed.
- Press the ferrule onto the PTFE tube and confirm that no braid is trapped between the ferrule and tube.
- Lubricate the ferrule, hose end, and fitting nipple, then insert the fitting with a twisting motion.
- Thread the socket and fitting together, align the threads, and tighten with AN wrenches until approximately 1 mm remains between the socket and fitting.
- Inspect the assembled line and pressure test the fuel system for leaks before operation.
