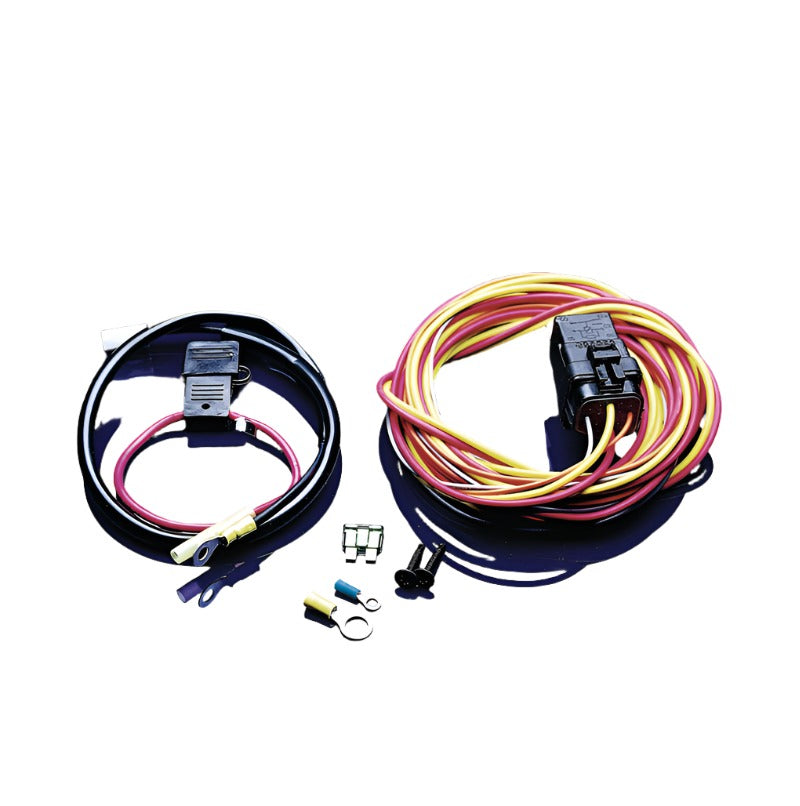

The SPAL Fan Harness With Relay, catalog part number FRH, is a universal wiring component for compatible SPAL electric-fan systems. Match every connector, pinout, wire rating, relay or controller interface, and electrical requirement before installation.
Fitment
| Application Type | Universal by exact dimensions and system requirements |
|---|---|
| Required Verification | Part number, dimensions, voltage, current draw, airflow direction, mounting interface, connector, controller, and available clearance |
Specifications
| Brand | SPAL |
|---|---|
| Catalog Part Number | FRH |
| Product Type | Fan Wiring Harnesses |
| Fitment Type | Universal by exact specifications |
| Condition | New |
What's Included
One new SPAL wiring harness or adapter identified by the catalog part number shown. Fans, sensors, controllers, relays, fuses, switches, and additional wiring are included only when expressly stated.
About SPAL
SPAL Automotive develops brushed and brushless electric fans, controls, harnesses, sensors, and mounting accessories for vehicle and equipment cooling systems. Product selection depends on the exact electrical, dimensional, airflow, and mounting requirements.
Related SPAL Products
- Shop all SPAL cooling products
- SPAL Jumper Harness
- SPAL Jumper Harness w/Metri-Pack Connector
- SPAL SBL-TS-HARN Jumper Harness for Brushless Fans
Frequently Asked Questions
Which SPAL products work with harness FRH?
Use it only with the exact fan, sensor, relay, or controller interfaces identified by SPAL. Connector appearance alone does not confirm electrical compatibility.
Does this harness replace the need for a fuse or relay?
Not unless SPAL expressly identifies those functions as integrated. Size the fuse, relay, wire, and ground path for the fan load and the current SPAL wiring instructions.
What should be checked before powering the fan?
Confirm polarity, pinout, connector engagement, fuse protection, wire routing, ground integrity, and clearance from heat, moisture, sharp edges, and moving parts.
Installation
Follow the current SPAL instructions for catalog part number FRH. Disconnect electrical power, protect the circuit with the specified fuse and relay or controller, verify polarity and airflow direction, secure all mounting points, route wiring away from heat and moving parts, and test fan operation through the complete temperature range. Professional installation is recommended.
