SPAL 300W 11in Drop-In Brushless Fan w/Jumper Harness

11-Inch Drop-In Brushless Fan for Tight Radiator Shroud Builds

The SPAL SPL30107059-PKG is a 300-watt brushless puller fan built for 11-inch shroud drop-in installations where reliable variable-speed cooling is needed in a compact package. Producing 1,500 peak CFM with SPAL's signature IP68 and IP6K9K sealed motor, SPL30107059-PKG manages cooling loads efficiently at approximately 25 amps peak on a 12V system. It includes a jumper harness for streamlined connection to the SPAL Plus Series temperature sensor and harness ecosystem.

Key Features

• 300-watt brushless motor with automatic variable-speed control, approximately 25 amps at peak
• 1,500 peak CFM airflow at maximum operating temperature
• 11-inch diameter, drop-in mount sits partially inside the shroud
• IP68 and IP6K9K sealed motor for protection against water immersion and high-pressure spray
• Includes jumper harness for SPAL Plus Series sensor system connection
• Curved blade design for efficient airflow in compact 11-inch applications
• Integrated EMC filters and built-in electrical protection in the motor
• Requires SPAL Plus Series temperature sensor and SBL-YAZ-PT10 pigtail harness (sold separately)

Specifications

What's Included

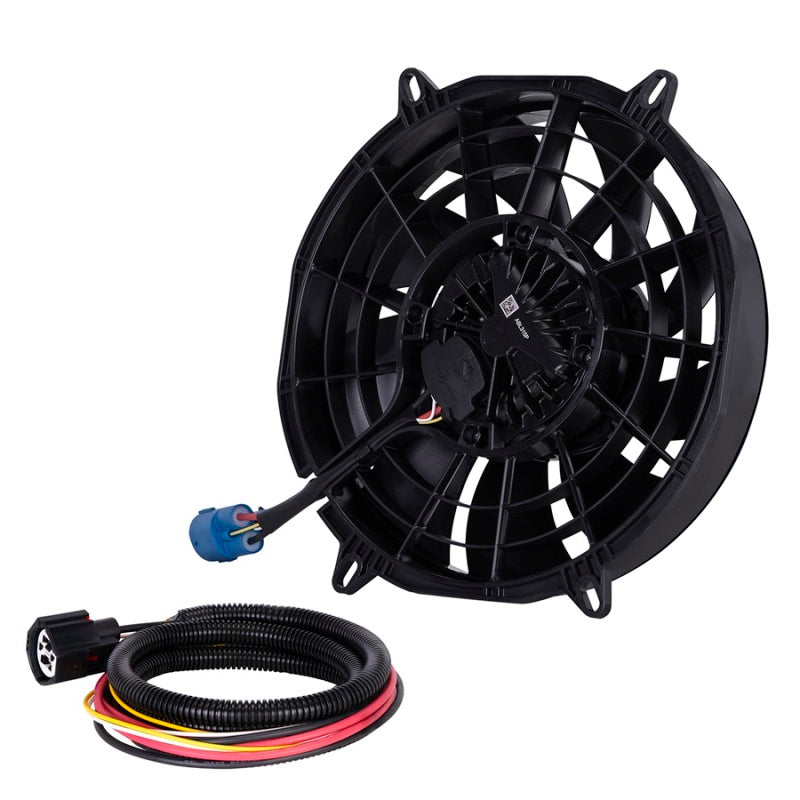

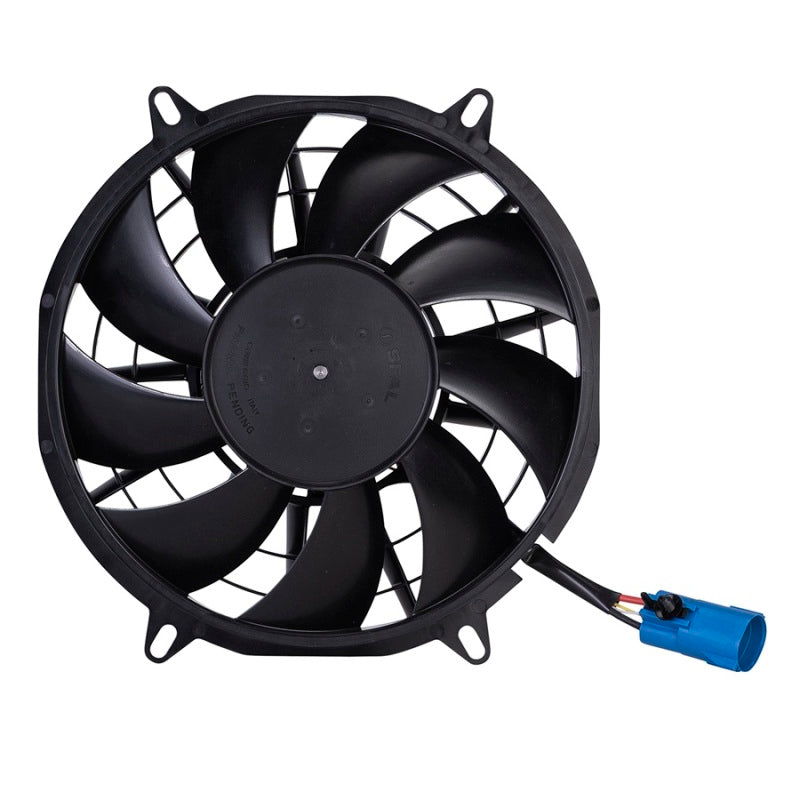

• 1x SPAL SPL30107059-PKG 300W 11-inch Plus Series brushless puller fan

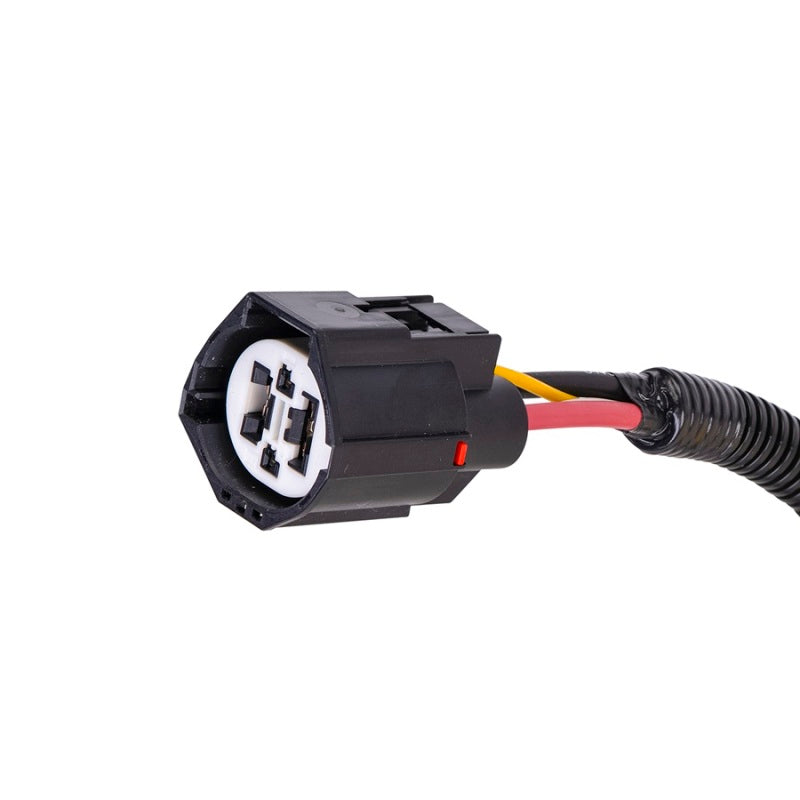

• Jumper harness for SPAL Plus Series sensor wiring

About SPAL

SPAL Automotive has been engineering high-performance electric fans for OEM and aftermarket applications since 1959. Based in Italy with manufacturing operations worldwide, SPAL supplies cooling solutions to automotive, motorsport, and industrial markets across the globe. The Plus Series brushless fan line represents SPAL's most advanced offering for custom cooling builds, combining sealed motor technology with variable-speed control for efficiency and reliability unmatched by conventional brushed fans.

Frequently Asked Questions

The 11-inch SPAL brushless fan is ideal for auxiliary cooling applications including transmission coolers, power steering coolers, intercoolers, and smaller custom radiator builds where a full-size fan is not practical. It is also used in tight-space primary radiator setups on compact and subcompact platforms.

This fan requires a SPAL Plus Series temperature sensor such as the SBL-TS-165P (140F to 165F), SBL-TS-185P, SBL-TS-195P, or SBL-TS-215P depending on your target coolant operating temperature. All sensors are sold separately.

You need the SBL-YAZ-PT10 pigtail harness to plug into the fan connector, and the SBL-TS-HARN to connect the temperature sensor to the pigtail. Both harnesses are required for each fan and are sold separately in addition to the included jumper harness.

No. The SPL30107059-PKG is a Plus Series fan and requires Plus Series sensors and harnesses. The older Nuova series components use a different connector and wiring protocol and are not interchangeable with Plus Series fans.

Drop-in style fans require the shroud opening to have sufficient depth behind the radiator face to accommodate the fan body extending inside the shroud. Measure available depth carefully before selecting a drop-in fan. If depth is limited, a flush mount fan of comparable diameter may be a better fit.

The SPAL Plus Series brushless fans are designed primarily for radiator pull applications. For intercooler spray control, the fan's variable-speed temperature-driven control may not align with intercooler spray logic unless you use the manual override blue wire with a separate controller.

A 30-amp inline fuse near the battery is appropriate for the SPL30107059-PKG drawing up to 25 amps at peak. Use 10-gauge wire for power and ground runs and ensure connections are weatherproofed for long-term reliability.

Yes. The brushless motor in the Plus Series fans is designed for extended variable-speed operation. At low speeds below the peak thermal demand, the motor runs cooler and more efficiently than at full load. Continuous duty at low speed is within the motor's design parameters.

Installation Instructions

1. Confirm the shroud opening is 11 inches and there is enough depth behind the shroud face for the drop-in fan body.
2. Position the fan with the motor facing away from the cooler core (puller orientation).
3. Secure the fan to the shroud through the mounting tab pattern using appropriate fasteners.

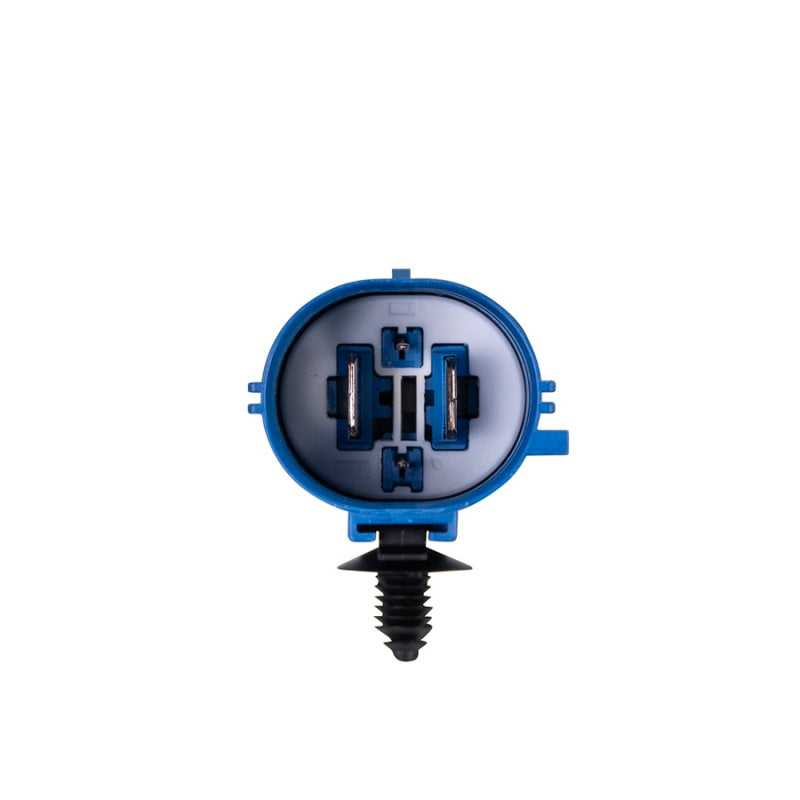

4. Connect the SBL-YAZ-PT10 pigtail harness to the fan connector.
5. Attach the SBL-TS-HARN harness between the pigtail and the Plus Series temperature sensor.
6. Thread the temperature sensor into a 3/8-inch NPT port in the cooling system.
7. Secure all wiring away from heat and rotating components using zip ties or loom.
8. Run power and ground in 10-gauge wire with a 30-amp inline fuse near the battery.
9. Start the engine, allow it to reach operating temperature, and confirm the fan activates at the sensor threshold.
10. Inspect all connections and mounting hardware after the first drive cycle.
