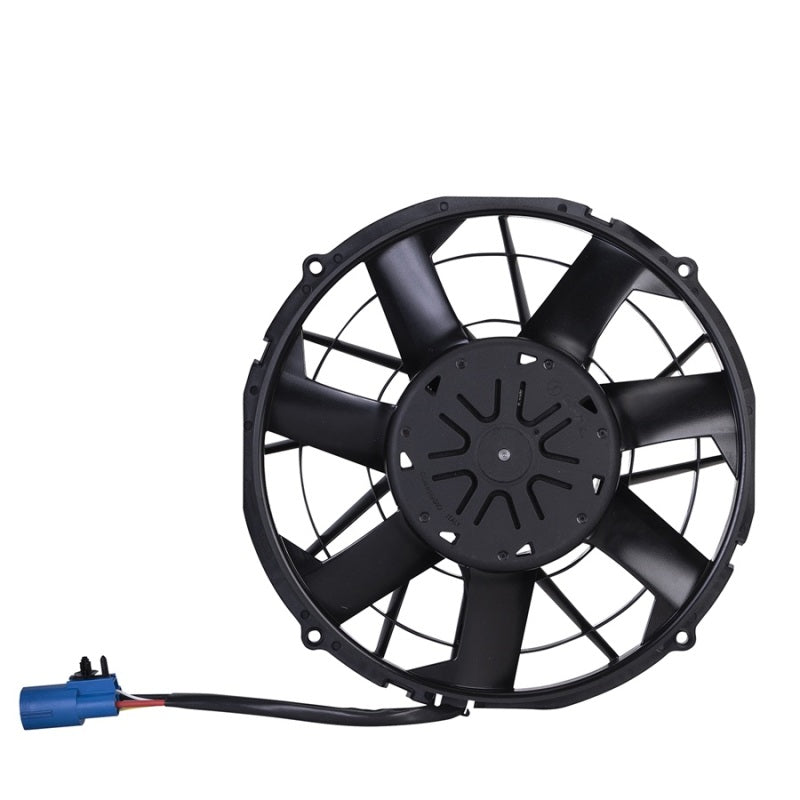

SPAL 300W 12in Drop-In Brushless Fan w/Jumper Harness

Compact 300W Brushless Power for 12-Inch Radiator Shroud Builds

The SPAL SPL30107087-PKG is a 300-watt brushless puller fan sized for 12-inch shroud applications where a sealed, variable-speed cooling solution is needed in a smaller footprint. With 1,802 peak CFM and SPAL's IP68 and IP6K9K motor protection, SPL30107087-PKG handles demanding underhood environments while consuming only about 25 amps at peak on a 12V system. The included jumper harness connects directly to the SPAL Plus Series sensor wiring system.

Key Features

• 300-watt brushless motor with automatic variable-speed control, approximately 25 amps at peak
• 1,802 peak CFM at full operating temperature
• 12-inch diameter, drop-in mount design sits partially inside the shroud
• IP68 and IP6K9K sealed motor for water immersion and pressure-spray protection

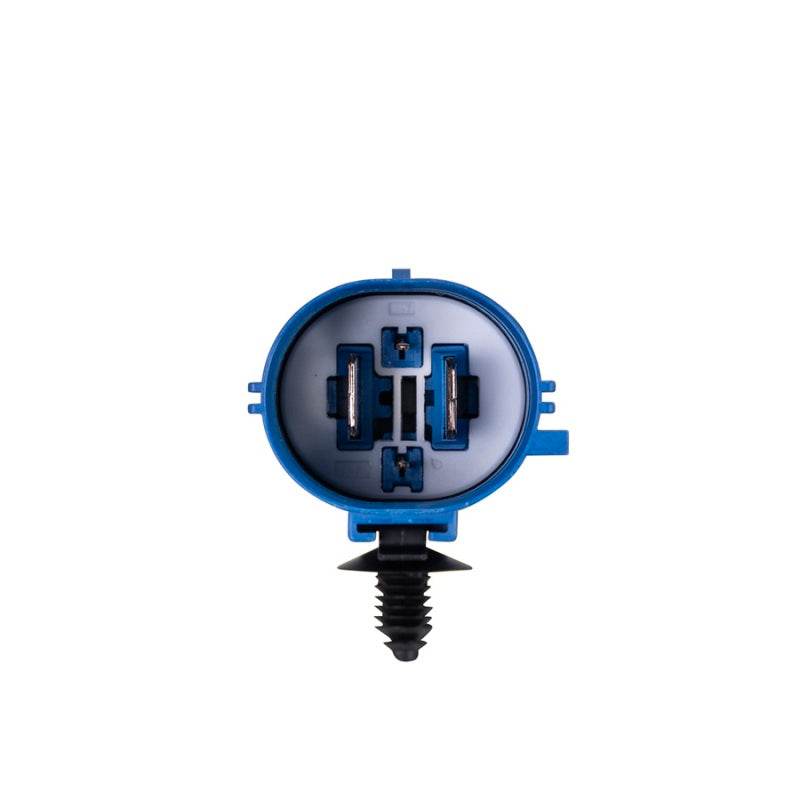

• Includes jumper harness for SPAL Plus Series sensor system connection
• Straight blade design optimized for the 12-inch shroud opening
• Integrated EMC filters and built-in motor protection
• Requires SPAL Plus Series temperature sensor and SBL-YAZ-PT10 pigtail harness (sold separately)

Specifications

What's Included

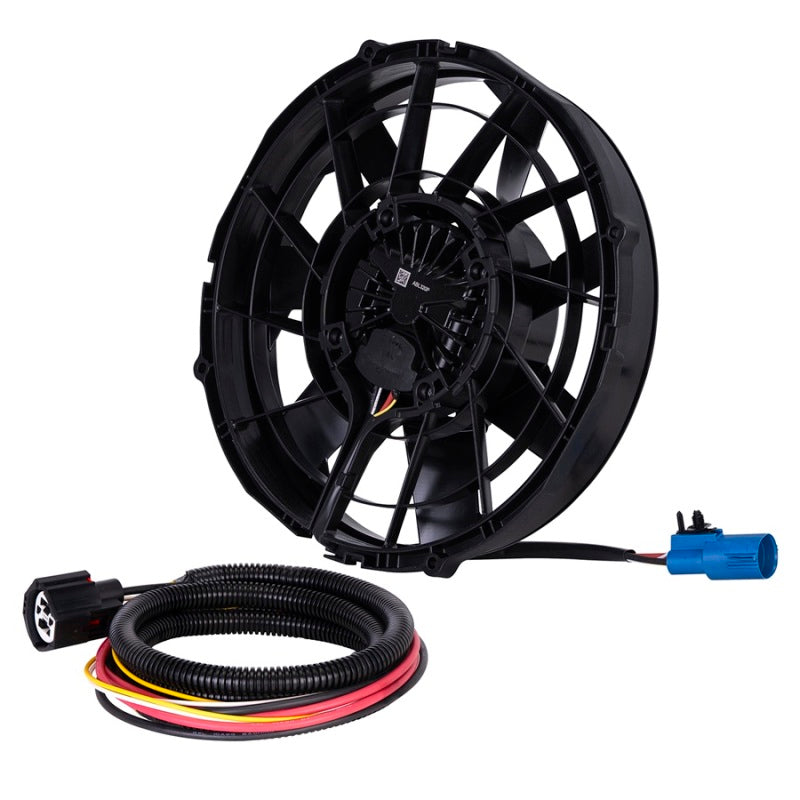

• 1x SPAL SPL30107087-PKG 300W 12-inch Plus Series brushless puller fan

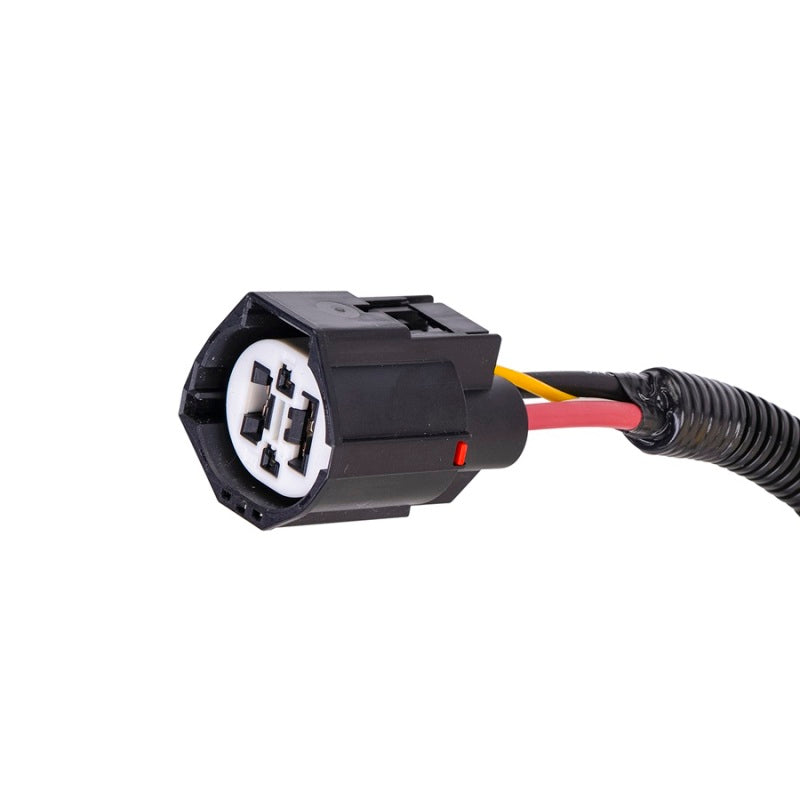

• Jumper harness for SPAL Plus Series sensor wiring

About SPAL

SPAL Automotive has been engineering high-performance electric fans for OEM and aftermarket applications since 1959. Based in Italy with manufacturing operations worldwide, SPAL supplies cooling solutions to automotive, motorsport, and industrial markets across the globe. The Plus Series brushless fan line represents SPAL's most advanced offering for custom cooling builds, combining sealed motor technology with variable-speed control for efficiency and reliability unmatched by conventional brushed fans.

Frequently Asked Questions

The SPL30107087-PKG works well for smaller radiator cores, auxiliary coolers such as transmission and power steering oil coolers, intercooler sprayers, and any custom cooling application where a 12-inch shroud opening is available. It is commonly used in compact cars, sport compacts, and custom builds with limited space.

This fan requires a SPAL Plus Series temperature sensor (SBL-TS-165P, SBL-TS-185P, SBL-TS-195P, or SBL-TS-215P). Choose the sensor range that matches your engine's typical coolant operating temperature. All sensors are sold separately.

You need the SBL-YAZ-PT10 pigtail harness to connect to the fan, and the SBL-TS-HARN to wire the temperature sensor to the pigtail. Both are required per fan installation and are sold separately from the fan and jumper harness package.

No. The Plus Series fans (SPL30107087-PKG) require the Plus Series sensor and harness. The Nuova series sensor connectors are not compatible with Plus Series fans. Always use Plus Series components together.

Drop-in fans require a shroud with sufficient depth for the fan body to partially recess inside. Surface mount fans sit flat on the shroud face and are better for shallow installations. For the 12-inch category, check whether your shroud depth can accommodate the drop-in profile before ordering.

Minimum 10-gauge wire is recommended for power and ground runs. The 300W motor draws up to 25 amps, so a 30-amp inline fuse near the battery is appropriate. Use weatherproof connectors and route wiring away from heat sources for reliable long-term operation.

Yes. The SPAL Plus Series system is fully self-contained with the temperature sensor controlling fan speed. It can be added to any vehicle regardless of whether the original design used an electric fan, as long as you install the temperature sensor in a compatible coolant fitting and run appropriate wiring.

Below the low-temperature threshold of the sensor the fan does not run. As coolant temperature rises into the sensor's operating range, the fan begins to spin and increases speed as temperature climbs. At the high threshold the fan reaches maximum speed. This proportional control reduces electrical load and fan noise at lower temperatures.

Installation Instructions

1. Confirm the shroud has a 12-inch opening and enough depth to accommodate the drop-in fan body.
2. Position the fan with the motor facing away from the radiator (puller orientation).
3. Secure mounting tabs to the shroud with appropriate fasteners.
4. Connect the SBL-YAZ-PT10 pigtail harness to the fan connector.
5. Attach the SBL-TS-HARN harness between the pigtail and the temperature sensor.
6. Thread the temperature sensor into a 3/8-inch NPT port in the radiator or cooling system.
7. Route all wiring away from exhaust and moving components and secure with loom or zip ties.
8. Run power and ground in 10-gauge wire with a 30-amp inline fuse close to the battery terminal.
9. Run the engine to operating temperature and confirm the fan activates correctly.
10. Check all fasteners and connections after the first heat soak and test drive.
