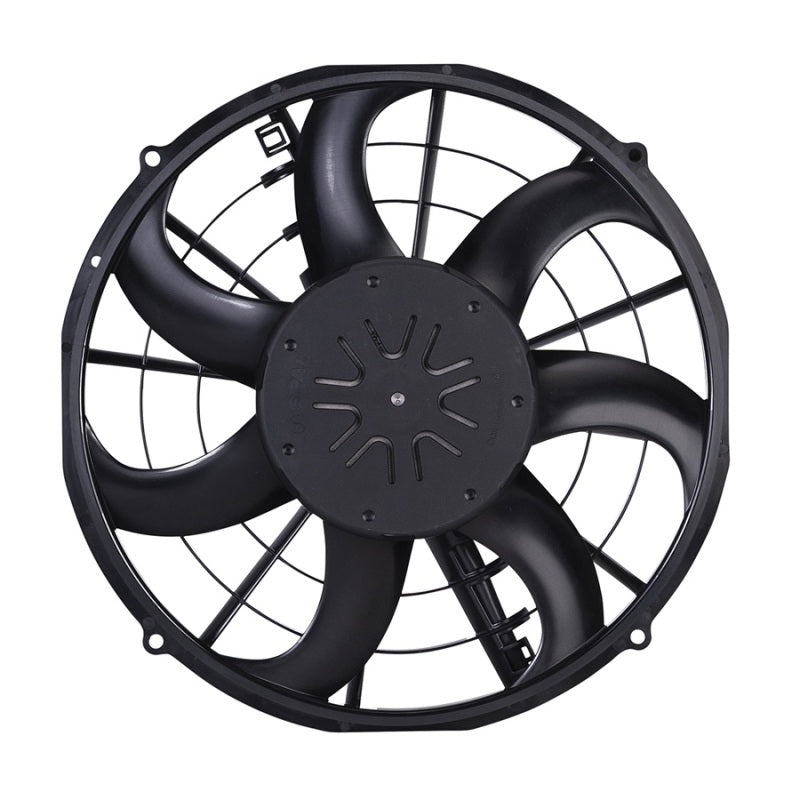

Proven 300W Brushless Cooling in a 14-Inch Drop-In Format
The SPAL SPL30107103-PKG is a 300-watt brushless puller fan designed for 14-inch shroud drop-in installations where reliable variable-speed cooling is the priority. Producing 2,036 peak CFM with a sealed IP68 and IP6K9K motor, SPL30107103-PKG delivers dependable performance in street, off-road, and mild performance applications without the high amp draw of the 500W series. The jumper harness is included for straightforward connection to the SPAL Plus Series temperature sensor and harness system.
Key Features
- 300-watt brushless motor with variable-speed control, drawing approximately 25 amps at peak on 12V
- 2,036 peak CFM airflow at maximum operating temperature
- 14-inch diameter, drop-in mount style sits partially inside the shroud
- IP68 and IP6K9K sealed motor protects against water immersion and high-pressure spray
- Includes jumper harness for plug-and-play SPAL Plus Series sensor system integration
- Straight blade design for efficient airflow in 14-inch shroud applications
- EMC filters and integrated electrical protection in the motor
- Requires SPAL Plus Series temperature sensor and SBL-YAZ-PT10 pigtail harness (sold separately)
Specifications
| Detail | Value |
|---|---|
| Part Number | SPL30107103-PKG |
| Brand | SPAL |
| Series | Plus Series |
| Motor Type | Brushless |
| Motor Wattage | 300W |
| Fan Diameter | 14 inches |
| Peak Airflow | 2,036 CFM |
| Mount Style | Drop-In (sits inside shroud) |
| Depth / Thickness | 3.10 inches |
| Blade Style | Straight |
| Voltage | 12V DC |
| Max Amp Draw | ~25A at peak |
| IP Rating | IP68 and IP6K9K |
| Flow Direction | Puller |
| Includes | Fan and Jumper Harness |
What's Included

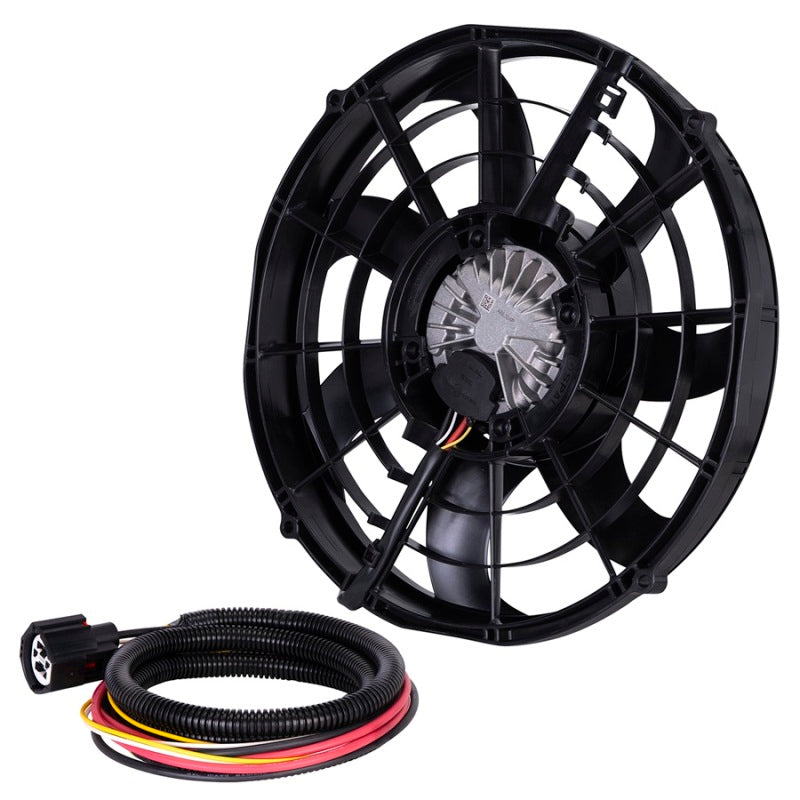

- 1x SPAL SPL30107103-PKG 300W 14-inch Plus Series brushless puller fan

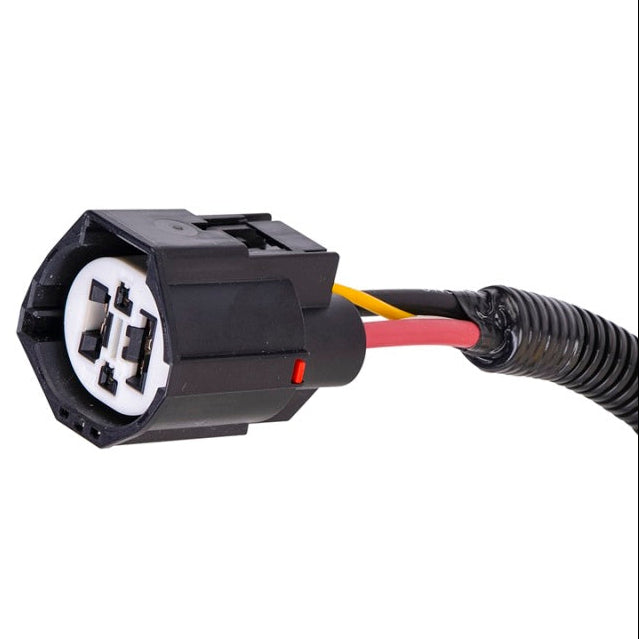

- Jumper harness for SPAL Plus Series sensor wiring
About SPAL
SPAL Automotive has been engineering high-performance electric fans for OEM and aftermarket applications since 1959. Based in Italy with manufacturing operations worldwide, SPAL supplies cooling solutions to automotive, motorsport, and industrial markets across the globe. The Plus Series brushless fan line represents SPAL's most advanced offering for custom cooling builds, combining sealed motor technology with variable-speed control for efficiency and reliability unmatched by conventional brushed fans.
Frequently Asked Questions
What is the difference between the 300W and 500W SPAL 14-inch brushless fans?The 300W SPL30107103-PKG draws approximately 25 amps at peak and delivers 2,036 CFM. The 500W model draws approximately 41.67 amps and delivers 2,395 CFM. The 300W model is sufficient for most street and moderate performance cooling applications and puts less demand on the charging system.
What temperature sensor is needed for the SPL30107103-PKG?This fan requires a SPAL Plus Series temperature sensor such as the SBL-TS-165P, SBL-TS-185P, SBL-TS-195P, or SBL-TS-215P. The correct model depends on your engine's coolant operating temperature target. All sensors are sold separately.
What harnesses does the SPAL 300W 14-inch drop-in fan require?You need the SBL-YAZ-PT10 pigtail harness to plug into the fan connector, and the SBL-TS-HARN to connect the temperature sensor to the pigtail. Both are required per fan and are sold separately. The included jumper harness in the package connects these components together.
Is the SPL30107103-PKG a replacement for my OEM pusher or puller fan blade?The SPAL Plus Series brushless fans are designed for custom shroud applications and are not direct OEM blade replacements. They require a shroud opening that matches the fan's mounting tab pattern and sufficient depth for the drop-in style body.
How deep must my shroud be to accommodate the 14-inch SPAL drop-in fan?The SPL30107103-PKG has a depth of 3.10 inches. Your shroud must provide at least this amount of clearance between the radiator core face and any mounting surface or crossmember behind the shroud to fit this fan correctly.
Can I wire the SPAL brushless fan to turn on and off like a standard relay-controlled fan?SPAL brushless fans require the Plus Series sensor and harness system to operate. They are not compatible with simple on/off relay switching alone. The temperature sensor controls the variable-speed output and is required for safe operation. An override switch using the blue wire can force full speed when needed.
How long is the warranty on the SPAL Plus Series brushless fan?SPAL offers a manufacturer warranty on the Plus Series brushless fans covering defects in materials and workmanship. Contact SPAL Automotive or your authorized SPAL distributor for the specific warranty terms applicable to your region and application.
Does the SPAL 14-inch brushless fan work with older Nuova series harnesses?No. The Plus Series fans use a different connector and are not compatible with the older Nuova series harnesses or temperature sensors. Ensure you are ordering SBL-TS-XXP (Plus Series) sensors and the correct Plus Series harness kit.
Installation Instructions
- Verify your shroud opening is 14 inches and has at least 3.10 inches of depth clearance for the drop-in fan body.
- Place the fan in the shroud opening with the motor facing away from the radiator core.
- Mark and secure mounting tabs using appropriate hardware for your shroud material.

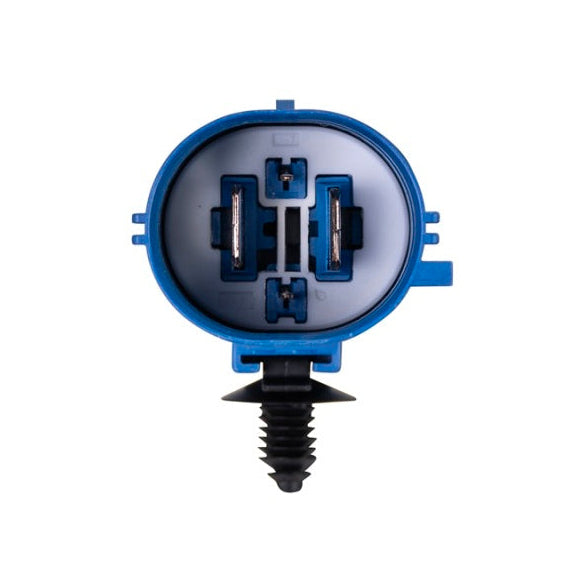

- Connect the SBL-YAZ-PT10 pigtail harness to the fan's connector.
- Connect the SBL-TS-HARN between the pigtail and your Plus Series temperature sensor.
- Install the temperature sensor in a 3/8-inch NPT port in your radiator or inline fitting.
- Route all wiring away from heat and moving parts, secure with zip ties or loom.
- Run power and ground in a minimum 10-gauge wire with an inline 30-amp fuse near the battery.
- Start the engine and allow coolant to reach operating temperature to verify correct fan activation.
- Inspect all mounting fasteners and wiring connections after the first heat cycle.
