Create a Serviceable 2 Inch Exhaust Connection

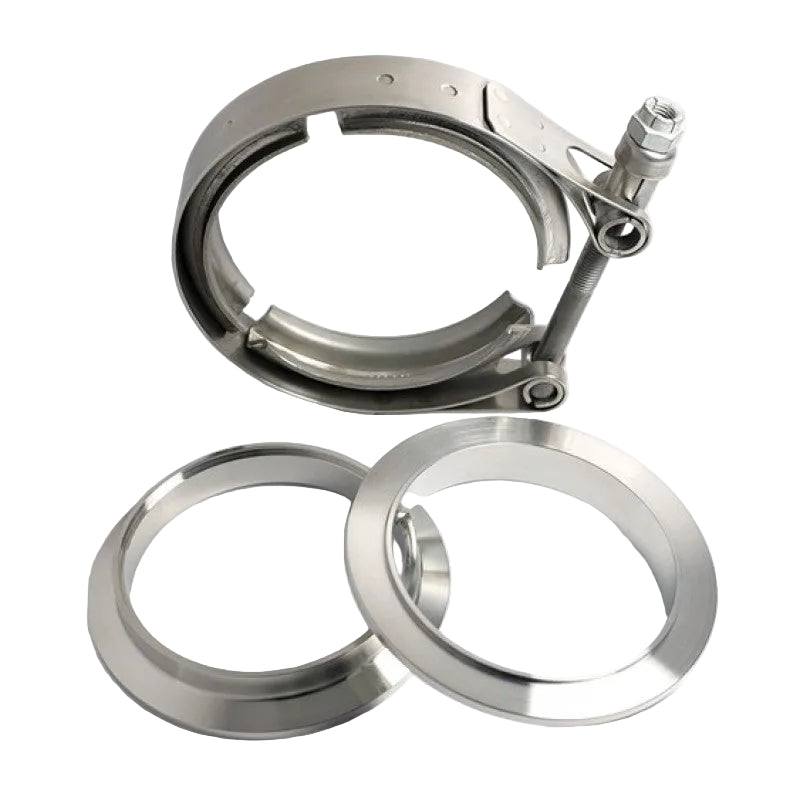

Stainless Bros 603-05010-0002 joins compatible 2 inch exhaust sections with two SS304 flanges and a removable V-band clamp. The assembly supports custom fabrication where the connected sections must be separated for service or modification.
Key Features
- SS304 stainless steel construction for custom exhaust fabrication
- V-band design secures two mating flanges with one clamp
- Two inch size matches compatible exhaust tubing
- Removable clamp allows the joined sections to be separated after fabrication
Fitment
| Application | Compatibility Requirement |
|---|---|
| Universal custom exhaust and fabrication applications | Compatible 2 inch tubing and space for a weld-on V-band connection |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 603-05010-0002 |
| Product type | V-band exhaust assembly |
| Material | SS304 stainless steel |
| Nominal tube size | 2 inches |
| Connection type | Clamp secured mating flanges |
What's Included
- Two SS304 V-band flanges
- One V-band clamp
About Stainless Bros
Stainless Bros supplies stainless steel tubing, bends, flanges, clamps, and related components for custom exhaust and fabrication projects.
Related Parts
FAQ
What is the 603-05010-0002?It is a universal 2 inch SS304 V-band exhaust assembly supplied with two mating flanges and one clamp.
Is this assembly vehicle specific?No. Compatibility depends on the tubing size, available installation space, and layout of the fabricated exhaust system.
What tube size does it fit?The assembly is sized for compatible 2 inch exhaust tubing.
What material is used?The assembly uses SS304 stainless steel components.
How many flanges are included?Two mating V-band flanges are included.
Is the clamp included?Yes. One V-band clamp is included with the two flanges.
Does installation require fabrication?Yes. The flanges must be aligned and joined to compatible tubing as part of a custom fabricated exhaust assembly.
What should be checked before installation?Confirm the tubing diameter, flange alignment, available clearance, and access to the clamp before welding.
Installation Instructions
- Confirm that both exhaust sections use compatible 2 inch tubing.
- Position the two mating flanges on the sections to be joined.
- Install the clamp temporarily to hold the flange faces in alignment.
- Verify exhaust routing, clearances, and service access before welding.
- Have a qualified fabricator weld each flange to its exhaust section.
- Allow the assembly to cool, then inspect the flange alignment and clamp engagement.
- Tighten the clamp securely and inspect the connection before operating the vehicle.
