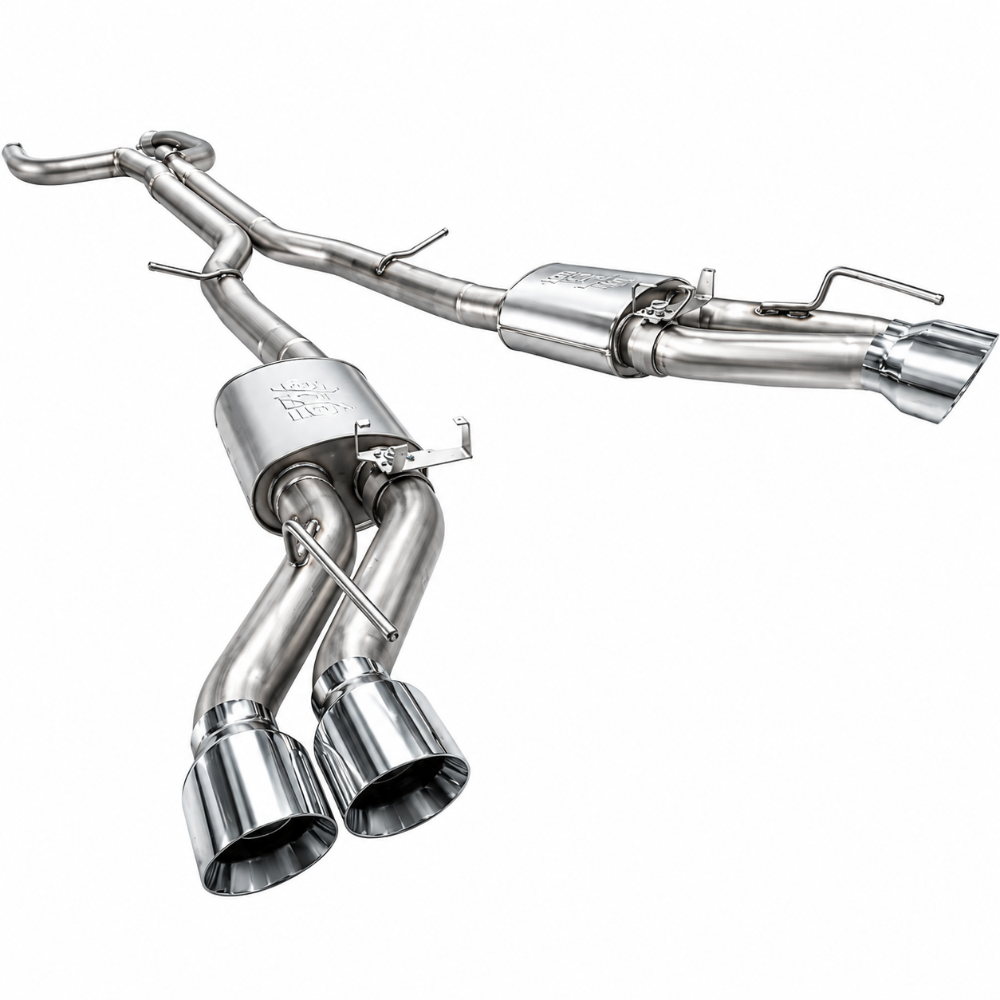

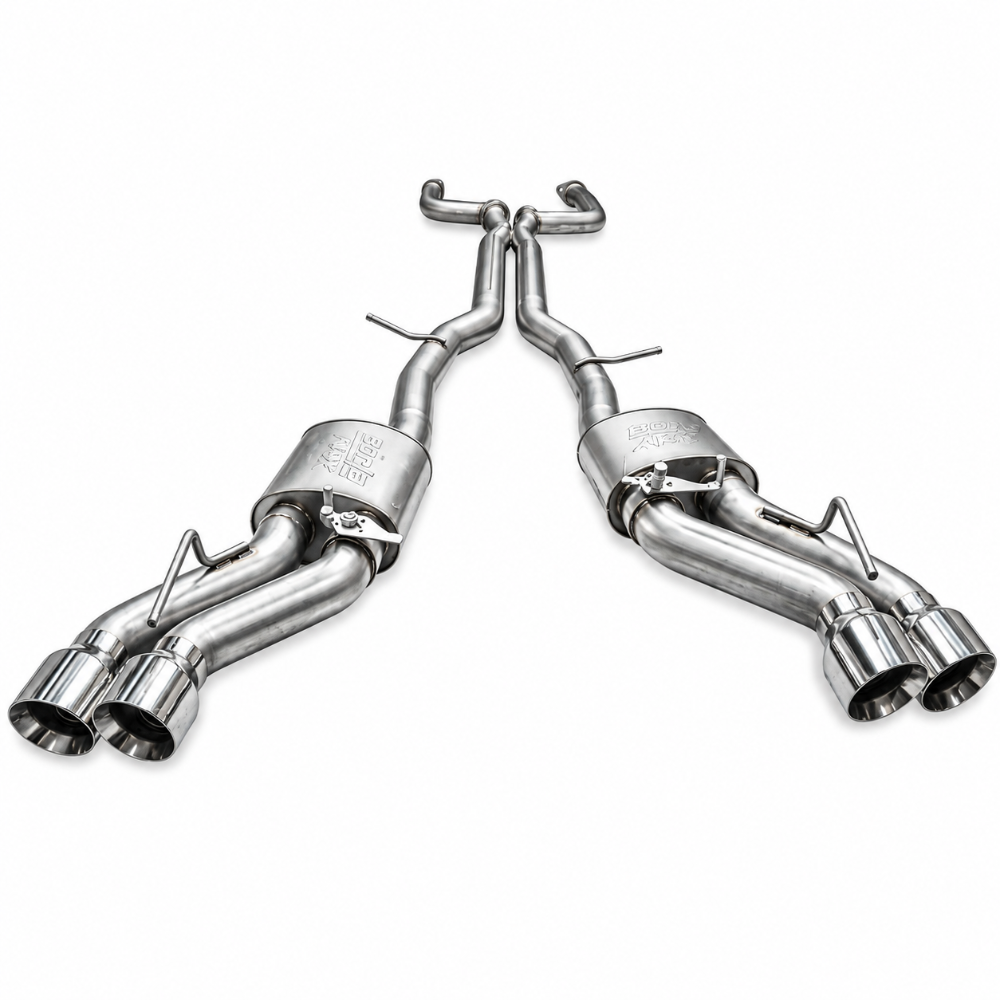

The Stainless Works CT5V22CB is a full cat-back exhaust system built specifically for the 2022-2026 Cadillac CT5-V Blackwing with the supercharged 6.2L V8. Constructed from 3-inch 304 stainless steel mandrel-bent tubing with an X-pipe crossover and dual muffler assemblies, the CT5V22CB unlocks the full acoustic and performance potential of the supercharged LT4 while retaining all four factory drive mode exhaust valve functions (Stealth, Tour, Sport, Track). Finished with quad 4.5-inch slash-cut tips in polished or black chrome, it fills the factory rear bumper cutouts perfectly. Handmade to order in Streetsboro, Ohio and backed by a lifetime warranty.
What's Included
- Right and left lead pipes
- X-pipe crossover assembly
- Right and left muffler lead pipes
- Right and left muffler assemblies
- 4 quad slash-cut tips (polished stainless or black chrome, per variant ordered)
- 8 x 3-inch stainless clamps
- Installation instructions
Active Exhaust Valve Retention
The CT5V22CB is engineered to work with the CT5-V Blackwing's factory active exhaust valve system. All four drive mode sound profiles (Stealth, Tour, Sport, and Track) remain fully functional after installation. You get the aggressive exhaust note at wide-open throttle without losing the quiet cruising behavior in Stealth mode that makes the Blackwing a legitimate daily driver.
X-Pipe Crossover Design
The X-pipe crossover balances exhaust pulses between the two cylinder banks, improving scavenging efficiency and delivering a smoother, more linear power curve across the RPM range. Compared to an H-pipe design, the X-pipe configuration produces a higher-pitched, more refined exhaust tone at full throttle, which suits the character of the supercharged LT4 engine.
Fitment for 2022-2026 Cadillac CT5-V Blackwing
This system fits the 2022-2026 Cadillac CT5-V Blackwing only with the 6.2L supercharged V8. It is not compatible with the standard CT5-V (twin-turbo 3.0L) or any other CT5 trim level. The system is compatible with both the OEM factory headers and Stainless Works long-tube headers for the Blackwing platform.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| 2022 | Cadillac | CT5-V | Blackwing | 6.2L Supercharged V8 |
| 2023 | Cadillac | CT5-V | Blackwing | 6.2L Supercharged V8 |
| 2024 | Cadillac | CT5-V | Blackwing | 6.2L Supercharged V8 |
| 2025 | Cadillac | CT5-V | Blackwing | 6.2L Supercharged V8 |
| 2026 | Cadillac | CT5-V | Blackwing | 6.2L Supercharged V8 |
Full Specifications
| Specification | Detail |
|---|---|
| Part Number | CT5V22CB |
| System Type | Cat-Back, Dual Exhaust with X-Pipe |
| Pipe Diameter | 3 in. |
| Material | 304 Stainless Steel, Mandrel-Bent |
| Crossover Type | X-Pipe |
| Tip Size | 4.5 in. Quad Slash-Cut |
| Tip Finish | Polished Stainless or Black Chrome (per variant) |
| Active Exhaust Valve Retention | Yes, all four factory drive modes retained |
| Installation Type | Bolt-On, No Welding Required |
| Hardware Included | Yes, complete with 8 x 3-inch clamps |
| Header Compatibility | OEM factory headers and Stainless Works long-tube headers |
| Country of Origin | Made in USA (Streetsboro, Ohio) |
| Warranty | Lifetime Warranty |
| Build Time | Built to order, approximately 4 weeks |
Not Street Legal in California
The CT5V22CB is a performance cat-back exhaust system. It does not carry a CARB Executive Order number and is not legal for street use in California or other states that have adopted CARB emissions standards. It is intended for track use or street use in non-CARB states. Check your local regulations before ordering.
Warranty and Factory Coverage
Stainless Works backs the CT5V22CB with a lifetime warranty covering defects in materials and workmanship. Under the federal Magnuson-Moss Warranty Act, installing an aftermarket exhaust system cannot void your factory warranty unless the dealer can prove the exhaust directly caused the specific failure being claimed.
Compare: CT5V22CB Cat-Back vs. CT5V22AB Axle-Back
Stainless Works offers two bolt-on exhaust options for the 2022-2026 CT5-V Blackwing. The CT5V22CB replaces the full exhaust from the factory mid-pipes back, delivering maximum flow and the most dramatic sound upgrade. The CT5V22AB axle-back retains the OEM mid-pipes and replaces only the rear section, providing a more subtle upgrade at a lower price point. Both retain active exhaust valve operation.
| Part Number | System Type | Coverage |
|---|---|---|
| CT5V22CB | Cat-Back | Full system from mid-pipe back, maximum flow and tone |
| CT5V22AB | Axle-Back | Rear section only, retains OEM mid-pipes, subtler upgrade |
About Stainless Works
Stainless Works has been handcrafting performance exhaust systems in Streetsboro, Ohio since 1989. Every system is built to order from 304 stainless steel using CNC mandrel bending and full TIG welding. The lifetime warranty backs every product they make. Stainless Works builds for road racing, drag racing, and high-performance street applications, and their fitment engineering is done in-house on actual production vehicles.
Frequently Asked Questions
Does the CT5V22CB fit the standard CT5-V (twin-turbo 3.0L), or only the Blackwing?
The CT5V22CB fits the CT5-V Blackwing with the 6.2L supercharged V8 only. The standard CT5-V uses a twin-turbocharged 3.0L inline-six with a completely different exhaust routing and requires a separate system.
Will the CT5V22CB work with the factory active exhaust valves?
Yes. The system is specifically engineered to retain full compatibility with the CT5-V Blackwing's active exhaust valve system. All four factory drive mode profiles (Stealth, Tour, Sport, Track) operate exactly as they do from the factory.
Does the CT5V22CB require welding or cutting for installation?
No. This is a complete bolt-on system using 3-inch band clamps at all connection points. No cutting, welding, or drilling is required.
How long does it take to get the CT5V22CB?
Stainless Works builds each system to order. Current lead time is approximately four weeks from the date of order. Plan accordingly if you have a track event or installation appointment scheduled.
What is the difference between the polished tip and black chrome tip variant?
Both variants are mechanically identical. The only difference is the tip finish. Polished tips have a bright mirror finish. Black chrome tips have a dark satin finish that coordinates with darker exterior colors and Blackwing badging. Both are 4.5-inch quad slash-cut.
Is the CT5V22CB compatible with Stainless Works long-tube headers?
Yes. The system is designed to connect to either the factory OEM headers or Stainless Works long-tube headers for the Blackwing platform. Both configurations are supported without modification.
Is the CT5V22CB legal in California?
No. The CT5V22CB does not carry a CARB Executive Order number and is not street legal in California or other CARB-adopting states. It is intended for track use or use in states where it is permitted.
Will installing the CT5V22CB void my Cadillac factory warranty?
Under the federal Magnuson-Moss Warranty Act, a dealer cannot void your factory warranty simply because you installed an aftermarket exhaust. They must prove the aftermarket part directly caused the specific failure being claimed. The exhaust does not affect engine, transmission, or drivetrain warranty coverage unless a direct causal link is established.
