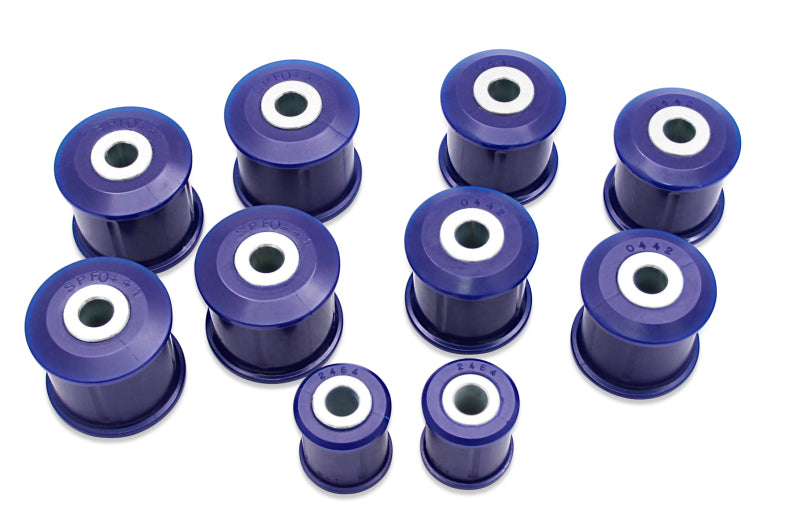

The SuperPro KIT097K is a comprehensive rear suspension bushing kit for 1998-2007 Lexus LX470 and Toyota Land Cruiser. Combining the rear Panhard rod bushing, lower trailing arm bushings, and upper trailing arm bushings in a single kit, KIT097K addresses the most common rear suspension wear points in one purchase. SuperPro polyurethane delivers greater longevity and more precise axle location than factory rubber, improving straight-line tracking and cornering stability on and off road.
Fitment
KIT097K fits the following vehicles:
- 1998-2007 Lexus LX470
- 1998-2007 Toyota Land Cruiser
Kit Contents and Specifications
| Component | Detail |
|---|---|
| Part Number | KIT097K |
| Rear Panhard Rod Bush Kit | Included |
| Rear Trailing Arm Lower Bush Kit | Included |
| Rear Trailing Arm Upper Bush Kit | Included |
| Material | SuperPro Polyurethane |
| Color | Yellow (standard) |
| Hardware | Included where applicable |
| Warranty | Lifetime on polyurethane bushings |
| Prop 65 | Yes |
Key Features
- Full rear bushing solution in a single kit, consolidating three separate SuperPro kits
- SuperPro polyurethane formulation resists oil, ozone, and UV degradation far better than OEM rubber
- Tighter axle location reduces rear wander on highways and during off-road articulation
- Lifetime warranty on all polyurethane components
- Direct replacement dimensions for OEM hardware, no modifications required
- Engineered and tested in Australia specifically for LX470 and Land Cruiser platforms
Installation Notes
KIT097K requires removal of the rear trailing arms and Panhard rod for bushing press-out and press-in. Standard bushing press tools are needed. Apply SuperPro grease (supplied) to bushing interiors before installation. Torque all hardware to manufacturer specification with suspension at ride height. A rear wheel alignment is recommended after installation to verify axle positioning.
Frequently Asked Questions
- What is included in KIT097K? The kit includes rear Panhard rod bushings, rear trailing arm lower bushings, and rear trailing arm upper bushings, covering all primary rear suspension pivot points for 1998-2007 Lexus LX470 and Land Cruiser.
- Do polyurethane bushings make the ride harsher? SuperPro's formulation is engineered to balance performance and ride quality. KIT097K is designed for the LX470's intended use range including light off-road, so harshness increase is minimal compared to worn OEM bushings.
- Is a press required to install these bushings? Yes, the trailing arm and Panhard rod bushings require a hydraulic or manual press to remove and install. Some bushings may be bonded; always refer to the included SuperPro instruction sheet.
- Does the Magnuson-Moss Warranty Act apply to suspension bushing replacements? Yes. Under the Magnuson-Moss Warranty Act, installing aftermarket suspension bushings such as KIT097K does not void your vehicle's factory powertrain or chassis warranty, provided the parts are installed correctly and do not cause damage.
- Is alignment needed after installing KIT097K? Rear alignment check is strongly recommended since the Panhard rod and trailing arm positions directly affect rear axle centering. SuperPro recommends checking alignment torque with suspension loaded at ride height.
