Anchor the Front Sway Bar Where It Belongs

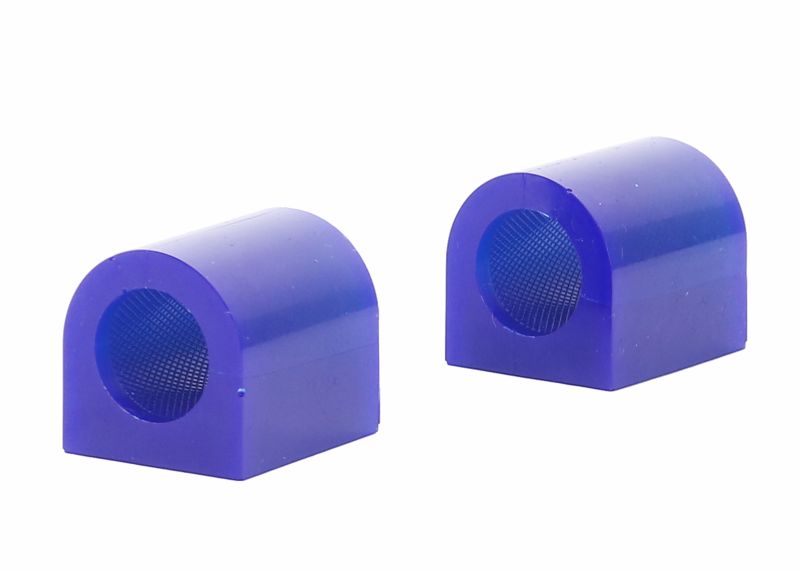

This SuperPro SPF0521-21K kit replaces the front sway bar to chassis mount bushings on rear wheel drive Volvo 240 series cars that run a 21mm front bar. The polyurethane bushings locate the bar in the original factory mounts and use grease retention grooves, so bar movement stays controlled instead of being absorbed by soft rubber.
Key Features
- Replaces the front sway bar to chassis mount bushings on Volvo 200 and 260 series models
- Sized for a 21mm front sway bar so bar clamping stays correct
- Made from SuperPro proprietary polyurethane rather than soft OE rubber
- Designed for the factory mount and hardware locations with no generic saddle needed
- Grease retention technology keeps lubricant at the bar for quiet operation
- Restores sway bar response that is lost as the original mount bushings wear and deform
- Supplied as a set for both front bar mounting positions
- Backed by the SuperPro limited lifetime warranty to the original purchaser
- Exact manufacturer part number: SPF0521-21K
Fitment
| Vehicle Application | Position | Requirement |
|---|---|---|
| 1990-1993 Volvo 240 | Front | 21mm front sway bar |
| 1975-1984 Volvo 242 | Front | 21mm front sway bar |
| 1975-1989 Volvo 244 | Front | 21mm front sway bar |
| 1975-1989 Volvo 245 | Front | 21mm front sway bar |
| 1976-1981 Volvo 262 | Front | 21mm front sway bar |
| 1976-1982 Volvo 264 | Front | 21mm front sway bar |
| 1976-1981 Volvo 265 | Front | 21mm front sway bar |
Measure the front sway bar before ordering. The SPF0521-21K kit fits a 21mm bar only, and Volvo used several bar diameters across these model years, so a 19mm or 23mm bar needs the matching SuperPro kit. The kit covers the bar to chassis mount bushings and does not include the sway bar, mounting brackets, end link bushings or fasteners.
Specifications
| Detail | Value |
|---|---|
| Brand | SuperPro |
| Manufacturer part number | SPF0521-21K |
| Product type | Front sway bar mount bushing kit |
| Position | Front |
| Sway bar diameter | 21mm |
| Material | Proprietary polyurethane |
| Lubrication | Grease retention grooves in the bushing bore |
| Mounting | Factory sway bar to chassis mount locations |
| Barcode | 9317745703228 |
| Warranty | Limited lifetime to the original purchaser |
What's Included

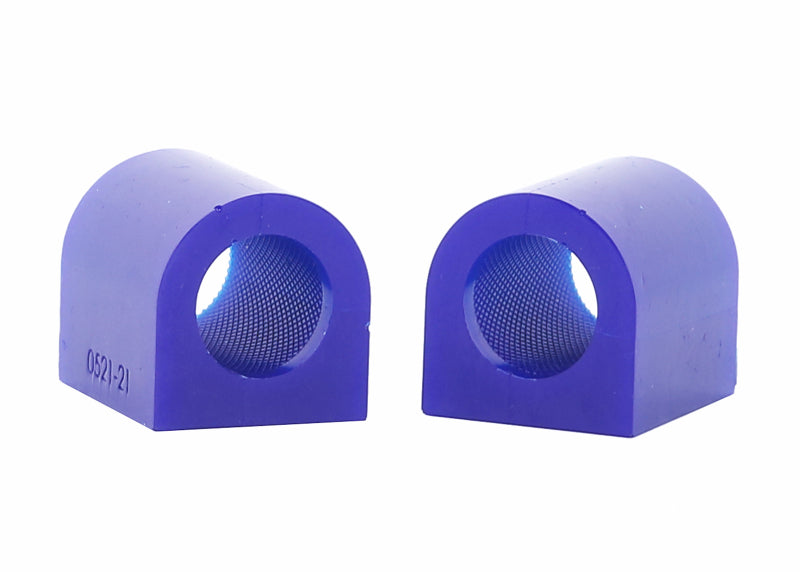

- SuperPro SPF0521-21K front sway bar mount bushings for one 21mm front sway bar installation
About SuperPro
SuperPro builds polyurethane suspension bushings and alignment parts for road and competition use, with a catalogue that covers older rear wheel drive platforms as well as current vehicles. Each bushing is designed for the factory mount it replaces, and the polyurethane formula is chosen to resist deflection, oil, ozone and temperature change.
Related Parts
FAQ
What is the SPF0521-21K?It is the SuperPro front sway bar to chassis mount bushing kit for Volvo 200 and 260 series cars fitted with a 21mm front bar.
How do I confirm my car needs the 21mm version?Measure the diameter of the front sway bar at the mounting point with a caliper. Volvo fitted several diameters across these years, and only a 21mm bar matches this kit.
Which Volvo models are covered?The application list covers the 240, 242, 244, 245, 262, 264 and 265 across the model years shown in the fitment table.
Does the kit fit the end links as well?No. It replaces the bar to chassis mount bushings. Sway bar end link bushings are a separate part number.
Are the original brackets reused?Yes. The bushings are shaped for the factory mount and bracket, so the original brackets and fasteners are refitted over the new bushings.
Will polyurethane make the car harsher?The bushings reduce sway bar deflection rather than firming the springs, so the change shows up as steadier body control and sharper turn in rather than a harsher ride.
Do the bushings need periodic greasing?No. The bushing bores retain the supplied grease, so scheduled regreasing is not part of normal service.
What warranty applies?SuperPro covers this bushing range with a limited lifetime warranty to the original purchaser, excluding installation error and impact damage.
How long does the job take?Most owners complete both front mounts in about one hour with hand tools once the car is safely supported.
Installation Instructions
- Park the car on a level surface, apply the parking brake, chock the rear wheels and raise and support the front of the car safely on stands.
- Locate the front sway bar mounts on the chassis rails and clean dirt and corrosion away from the brackets.
- Support the sway bar, then remove the mount bracket fasteners on one side.
- Withdraw the bracket and remove the worn rubber mount bushing from the bar.
- Clean the bar surface and the bracket seat, and inspect the bar for wear ridges, corrosion or damage.
- Apply the supplied grease to the bore of the new SPF0521-21K bushing and fit it to the bar with the split seated as designed.
- Refit the bracket over the bushing and start the fasteners by hand.
- Repeat the process on the opposite mount so both bushings are fitted before final tightening.
- Torque the bracket fasteners to the Volvo service specification and confirm the bar can rotate in the bushings without binding.
- Lower the car, road test it and recheck the bracket fasteners after the first short drive.
