Take the Slack Out of a 29mm Front Bar

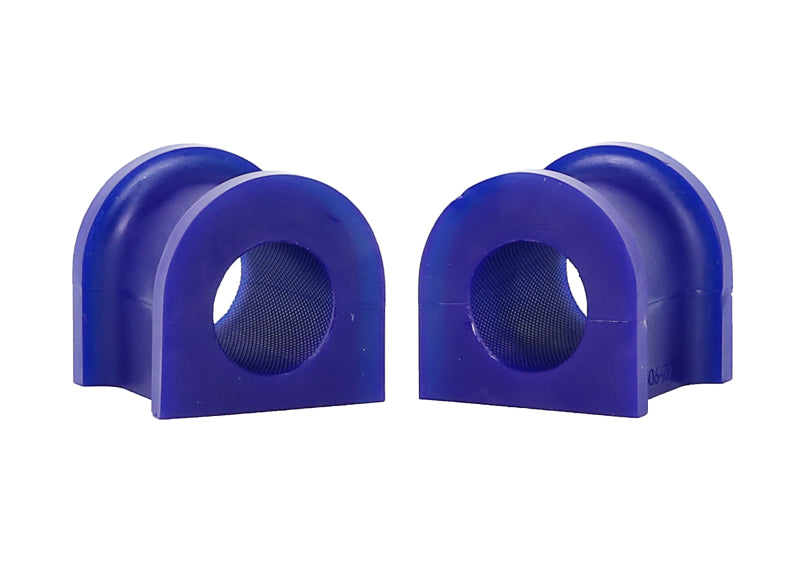

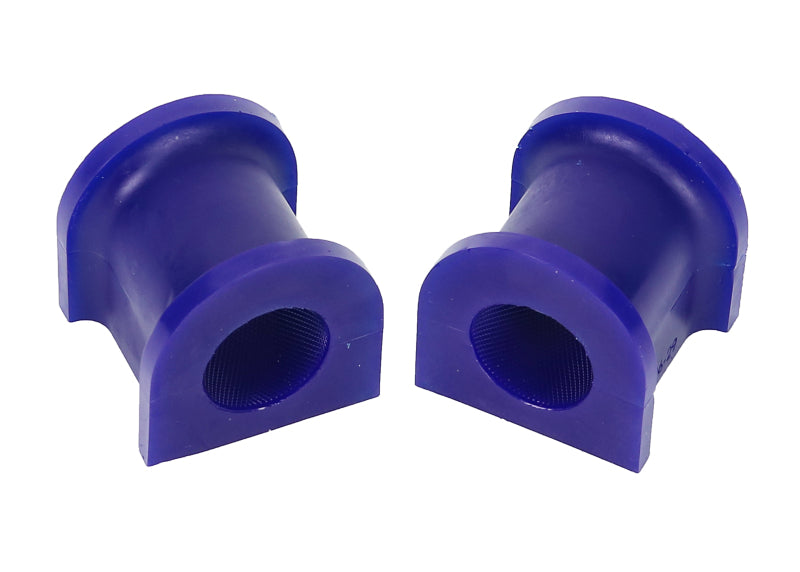

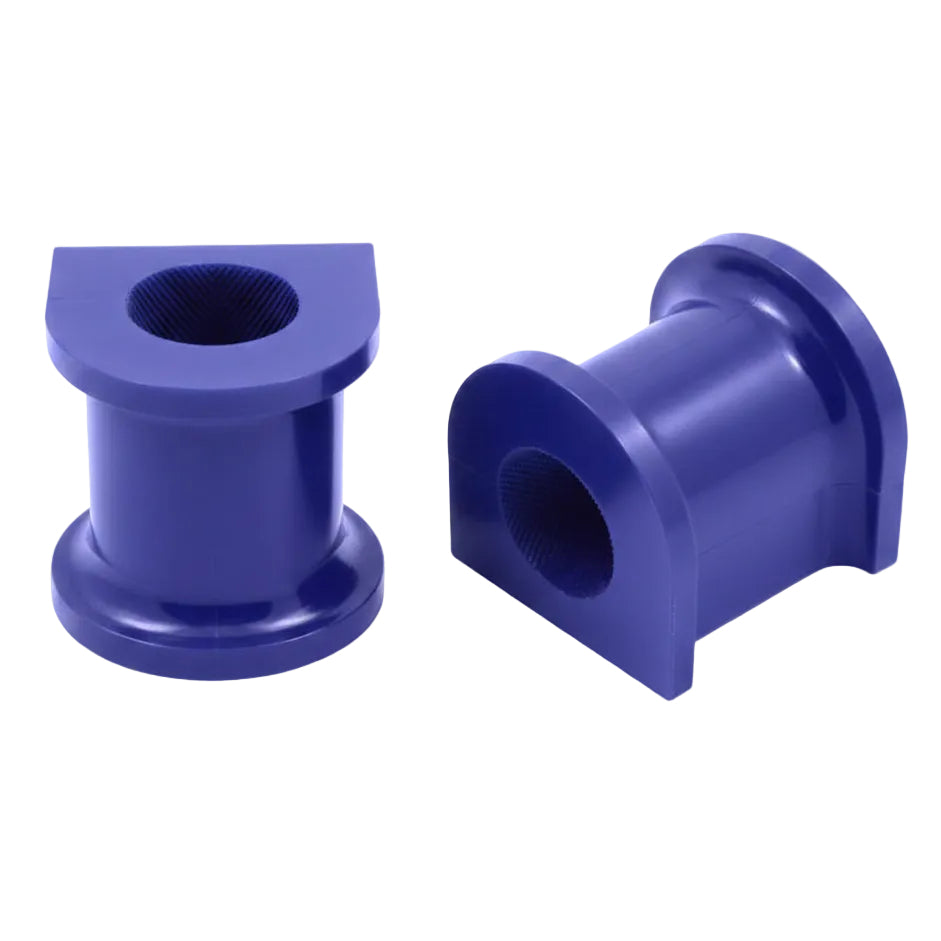

This SuperPro SPF2506-29K pair replaces the front sway bar mount bushings on Toyota trucks and sport utility models that use a 29mm front bar. The matte blue polyurethane bushings conform to the existing factory sway bar mounts, so play and deflection at the mount are reduced without changing the bar or the brackets.
Key Features
- Replaces the front sway bar mount bushings on 29mm factory bars
- Supplied as a pair so both front mounting positions are renewed together
- Durable polyurethane construction engineered to match or exceed the original bushing quality
- Matte blue finish that identifies the SuperPro bushing at a glance
- Reduces play and deflection at the mount for better roll resistance and steadier handling
- Adaptable profile that conforms to the existing sway bar mounts with no modification
- Resists wear, distortion and deterioration better than the original rubber bushing
- Backed by the SuperPro limited lifetime warranty to the original purchaser
- Exact manufacturer part number: SPF2506-29K
Fitment
| Vehicle Application | Position | Requirement |
|---|---|---|
| 2005-2023 Toyota Tacoma | Front | 29mm front sway bar |
| 2003-2009 Toyota 4Runner | Front | 29mm front sway bar |
| 2007-2009 Toyota FJ Cruiser | Front | 29mm front sway bar |
| 2003-2009 Lexus GX470 | Front | 29mm front sway bar |
Measure the front sway bar before ordering because SuperPro supplies this mount bushing in several diameters and a 30mm bar will not seat correctly in the 29mm SPF2506-29K bushing. The pair covers the bar mount bushings only and does not include the sway bar, mount brackets, end links or fasteners.
Specifications
| Detail | Value |
|---|---|
| Brand | SuperPro |
| Manufacturer part number | SPF2506-29K |
| Product type | Front sway bar mount bushing kit |
| Position | Front |
| Sway bar diameter | 29mm |
| Quantity | Pair |
| Material | Polyurethane |
| Finish | Matte blue |
| Fitment style | Direct replacement in the existing sway bar mounts |
| Installation time | Approximately 1 to 2 hours |
| Skill level | Light to moderate mechanical skill |
| Origin | Developed and manufactured in Australia |
| Barcode | 9317745714118 |
| Warranty | Limited lifetime to the original purchaser |
What's Included
- Two SuperPro SPF2506-29K 29mm front sway bar mount bushings
About SuperPro
SuperPro develops and manufactures polyurethane suspension bushings in Australia for road, tow and off road use. The catalogue is built around bushings that reuse the factory mount, and the polyurethane formula is selected for abrasion resistance and stable performance under load.
Related Parts
FAQ
What is the SPF2506-29K?It is the SuperPro front sway bar mount bushing pair for Toyota and Lexus models running a 29mm front bar.
How many bushings come in the package?Two bushings are supplied, which covers both front sway bar mounting positions on one vehicle.
How do I confirm the bar diameter?Measure the bar with a caliper at the mounting point. A 29mm reading matches this pair, while a 30mm bar needs the larger version of the same mount bushing.
Which vehicles are covered?The verified applications are the 2005 to 2023 Tacoma, the 2003 to 2009 4Runner, the 2007 to 2009 FJ Cruiser and the 2003 to 2009 Lexus GX470.
Do the factory brackets get reused?Yes. The bushing profile conforms to the existing mount, so the original brackets and fasteners are refitted over the new bushings.
What is the matte blue colour for?The finish identifies the SuperPro polyurethane bushing and makes the part easy to recognise during later service work.
How long does installation take?Plan on roughly one to two hours for the pair, depending on access, corrosion at the brackets and whether the truck is lifted.
Will this change the ride quality?The bushings tighten the connection between bar and chassis, so the result is more consistent roll control rather than a firmer spring rate.
What warranty applies?SuperPro covers this bushing range with a limited lifetime warranty to the original purchaser for manufacturing defects.
Installation Instructions
- Park the vehicle on a level surface, apply the parking brake, chock the rear wheels and raise and support the front safely on stands.
- Locate the two front sway bar mount brackets on the chassis and clean away dirt, gravel and corrosion.
- Support the sway bar so it cannot drop, then remove the fasteners from the first mount bracket.
- Remove the bracket and slide the worn bushing off the bar.
- Clean the bar at the mounting position and inspect it for wear steps, deep corrosion or damage.
- Apply a suitable suspension grease to the bore of the new bushing and fit it to the bar with the split closed against the bar.
- Refit the bracket over the bushing and start the fasteners by hand.
- Repeat the same steps on the second mount so both SPF2506-29K bushings are in place before final tightening.
- Torque all bracket fasteners to the vehicle manufacturer specification and check that the bar rotates in the bushings without binding.
- Lower the vehicle, road test it and recheck the bracket fasteners after the first short drive.
