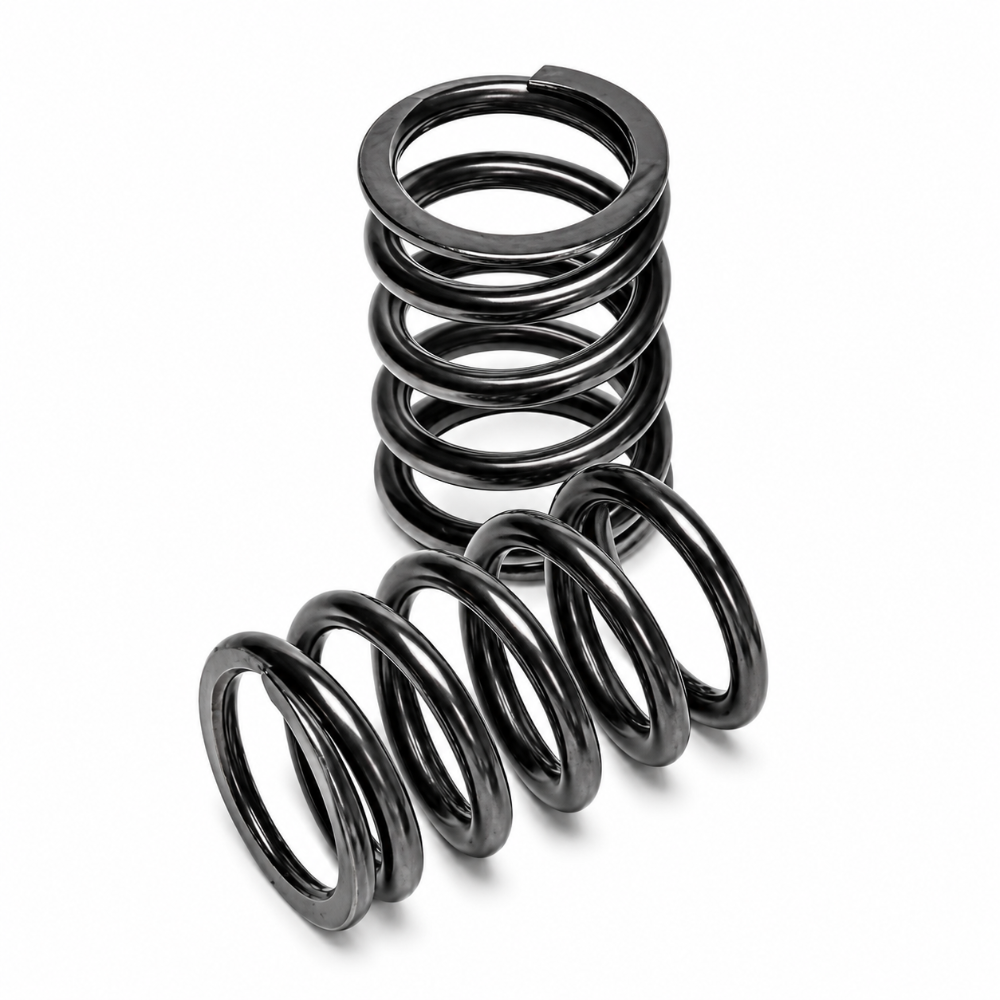

High-Revving Chrome Silicon Valve Spring for 4AGE 20V, 1.8T AEB, and 2.7T APB Engine Builds
When your valve train is the limiting factor in your build, the Supertech SPTSPR-A2095 single intake valve spring delivers the precision-engineered solution serious engine builders demand. Made from premium Superclean Chrome Silicon Vanadium Steel alloy, this spring is designed to withstand the extreme temperature cycling and high-RPM harmonics of performance and race applications where stock springs fail. Whether you are rebuilding a Toyota 4AGE 20V Black Top or Silver Top, or working on a Volkswagen/Audi 1.8T AEB or 2.7T APB cylinder head, the SPTSPR-A2095 provides consistent seat pressure and precise open pressure to eliminate float and valve bounce at high RPM.
Key Features
- Chrome Silicon Vanadium Steel alloy construction for superior fatigue resistance at high RPM
- Computer-designed spring geometry ensures wire stress stays within safe fatigue limits at all times
- Harmonics analysis integrated into design for stable spring behavior through the full RPM range
- 54 lbs seat pressure at 36.60mm installed height for consistent valve seating
- 123 lbs open pressure at 10.5mm for positive valve control under aggressive cam profiles
- 13.60mm maximum lift rating accommodates performance and motorsport camshafts
- 23.00mm coil bind point provides safe clearance margin with high-lift cams
- 6.70 lbs/mm spring rate delivers linear, predictable spring behavior throughout the lift curve
- Compatible with RET-TC50/T1 titanium retainers and SS-3021 seat locators
- Sold individually for precision replacement or per-cylinder sourcing flexibility
- Sold as a Drop Ship item direct from authorized Supertech distribution
Specifications
| Detail | Value |
|---|---|
| Part Number | SPTSPR-A2095 |
| Brand | Supertech Performance |
| Spring Type | Single (Intake Only) |
| Outer Spring OD | 20.60 mm |
| Outer Spring ID | 14.40 mm |
| Seat Pressure | 54 lbs at 36.60 mm |
| Open Pressure | 123 lbs at 10.5 mm |
| Maximum Lift | 13.60 mm |
| Coil Bind | 23.00 mm |
| Spring Rate | 6.70 lbs/mm |
| Recommended Retainer | RET-TC50/T1 |
| Recommended Seat Locator | SS-3021 |
| Quantity | 1 (Single Spring) |
| Engine Application | Toyota 4AGE 20V, VW/Audi 1.8T AEB, Audi 2.7T APB |
| UPC | N/A (individual engine component) |
What's Included
- (1) Supertech SPTSPR-A2095 Single Intake Valve Spring
About Supertech Performance
Supertech Performance has been engineering precision engine components for motorsport and high-performance street use since 1991. Every Supertech valve spring undergoes computer-modeled stress and harmonic analysis to ensure consistent performance under the most demanding race conditions. Their Chrome Silicon Vanadium Steel alloy is used by top engine builders worldwide competing in drag racing, road racing, and time attack. Supertech is the specification choice for builders who cannot afford valve float or spring failure at high RPM.
Frequently Asked Questions
Does the SPTSPR-A2095 fit Toyota Corolla AE111 engines with the 4AGE 20V Black Top?Yes. The SPTSPR-A2095 is designed specifically for the Toyota 4AGE 20V engine family including the AE111 Black Top used in 1995-2000 Toyota Corolla GT-S models. It matches the OE spring seat dimensions and works with the factory valve guide and retainer seat locations.
Does this spring work with the 4AGE 20V Silver Top in the AE101 Corolla?Yes. The SPTSPR-A2095 is compatible with both the Silver Top (AE101) and Black Top (AE111) versions of the 4AGE 20V engine. Both versions share the same valve seat dimensions and installed height that this spring is designed around.
Can the SPTSPR-A2095 be used in a VW Golf or Jetta with a 1.8T AEB engine?Yes. This spring is specifically engineered for the VW/Audi 1.8T AEB engine code, which powers a range of MK4-era VW Golf, Jetta, Passat, and Audi A4 and TT models. It is an intake-only spring and should be paired with the correct retainer and seat locator for the AEB head.
What retainer does the SPTSPR-A2095 require?Supertech recommends the RET-TC50/T1 titanium retainer with this spring. The SS-3021 seat locator is also recommended for proper installed height on both Toyota and VW/Audi applications.
How many springs do I need for a full set on the 4AGE 20V?The Toyota 4AGE 20V has 20 valves total but this spring is for intake valves only. The AE111 Black Top engine uses 20 intake valves and 20 exhaust valves. You will need 20 intake valve springs for a full intake set. Purchase in the required quantity individually or consider the full kit SPRK-A2095 for a complete spring and retainer package.
Is the SPTSPR-A2095 compatible with the Audi 2.7T APB twin-turbo engine?Yes. The Audi 2.7T APB engine, found in the B5 Audi S4 and A6 models, shares compatible valve seat dimensions with the 1.8T AEB and uses the same SPTSPR-A2095 spring for intake valve applications. The 2.7T 30V has 30 intake valves total, so plan your order quantity accordingly.
What is the difference between SPTSPR-A2095 and SPRK-A2095-BT or SPRK-A2095-ST?The SPTSPR-A2095 is a single spring sold individually. The SPRK-A2095-BT and SPRK-A2095-ST are complete kits that include a full set of springs, titanium retainers, and seat locators for the 4AGE 20V Black Top and Silver Top respectively. If you only need replacement springs without retainers, the single SPTSPR-A2095 is the correct part number.
Does this spring have a warranty?Supertech Performance backs this valve spring with their standard manufacturer warranty covering defects in material and workmanship. As a precision engine component, correct installation to factory torque specifications and proper retainer/seat locator pairing are required for warranty to be valid.
Is the SPTSPR-A2095 eligible for same-day shipping?This item ships as a Drop Ship order directly through authorized Supertech distribution channels. Lead times vary based on distribution availability. Contact our team for current availability and estimated ship time before ordering if timing is critical to your build schedule.
Installation Instructions
- Remove the cylinder head and disassemble the valve train according to the manufacturer service manual for your specific engine application.
- Use a valve spring compressor tool to safely compress and remove the existing intake valve springs, retainers, and keepers from each intake valve location.
- Inspect the valve stem and guide for wear or damage before installation.
- Install the SS-3021 seat locators on the valve stem if upgrading the full spring package.
- Position the SPTSPR-A2095 spring over the valve stem and onto the seat locator.
- Compress the spring using the valve spring compressor and install the RET-TC50/T1 titanium retainer onto the valve stem.
- Insert the keeper locks to secure the retainer to the valve stem and slowly release the spring compressor.
- Verify each spring is fully seated and retainers are properly locked before reassembling the cylinder head.
- Check installed height measurement against specifications (36.60mm target) and verify clearance to coil bind at maximum lift.
- Complete cylinder head reassembly and torque to manufacturer specifications.
