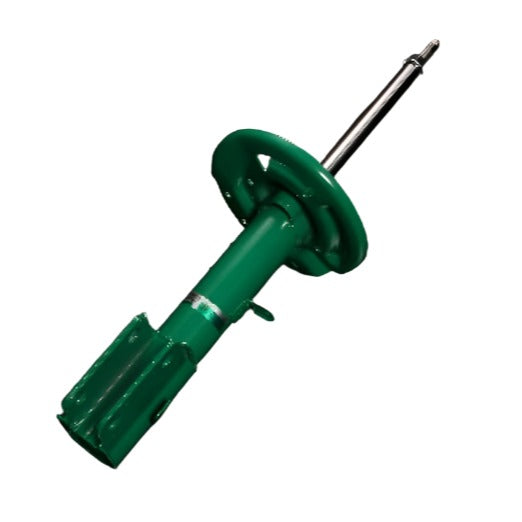

Factory-Fit Damping Upgrade for the 2015 and newer Ford Mustang (S550)
The VSGC0-B1MS2-L brings Tein's EnduraPro Plus OE-shape damper technology to the 2015 and newer Ford Mustang (S550) front left position, giving drivers a direct bolt-in shock upgrade that keeps the factory spring and ride height in place. OE-shape shock absorbers designed to reuse the vehicle's original spring and upper mount, sharing an identical lower spring seat shape to the factory unit. The sealed structure keeps manufacturing costs efficient without compromising damping quality. Fortified installation points and a reinforced shell case versus OE add durability, and the larger shell case diameter increases oil capacity and long-term durability. The Hydraulic Bump Stopper (H.B.S.) converts full-stroke impact into thermal energy, reducing disturbance to the vehicle and stress on the damper. A twin-tube damper system provides a longer stroke and smaller repulsive force for high ride comfort, smooth low-speed behavior, and stable high-speed control. High-performance damper oil maintains stable viscosity across temperature ranges, resists foaming and cavitation, and is built for spirited street driving. The TEIN-Green powder coating uses a patented two-layer, one-bake method (Japanese patent 4347712) with no harmful solvents. EnduraPro Plus versions add damping force adjustment (compression and rebound simultaneously) via an adjustment dial, and are EDFC-compatible on applicable vehicles (verify compatibility per vehicle). The VSGC0-B1MS2-L is built for daily drivers and street-performance owners who want improved damper control without moving to a full coilover system.
Key Features
- OE-shape design reuses the factory spring and, on most applications, the factory upper mount (VSGC0-B1MS2-L)
- Twin-tube damper construction for a longer stroke, smoother low-speed ride, and stable high-speed control
- Hydraulic Bump Stopper (H.B.S.) converts full-stroke impact into thermal energy to reduce harshness
- Fortified installation points and a larger-diameter shell case versus OE for added durability and oil capacity
- High-performance damper oil resists foaming and cavitation across a wide temperature range
- TEIN-Green two-layer, one-bake powder coating (Japanese patent 4347712) for long-term corrosion resistance
- Damping force adjustment dial on the VSGC0-B1MS2-L lets you tune compression and rebound simultaneously
- EDFC-compatible on applicable vehicles for electronic damping control
Specifications
| Detail | Value |
|---|---|
| Position | Front Left |
| Damping Adjustment | Yes (compression/rebound simultaneous) |
| Spring Compatibility | Reuses OE spring |
| Sold As | Single shock |
| Finish | TEIN-Green powder coat |
What's Included
- 1x Tein EnduraPro Plus front left shock (VSGC0-B1MS2-L)
- Mounting hardware included with the damper
About Tein
Tein has engineered suspension products in Japan since 1988, supplying OE-shape and coilover dampers to street, track, and drift applications worldwide. The EnduraPro and EnduraPro Plus lines are built for drivers who want a direct factory-style replacement shock with Tein's damper tuning and TEIN-Green powder coating, without switching to a full coilover system.
Related Parts
- Tein VSGC0-B1MS2-R (Front Right EnduraPro Plus Shock)
- Tein VSGC1-B1MS2 (Rear EnduraPro Plus Shock)
FAQ
What is the VSGC0-B1MS2-L?The VSGC0-B1MS2-L is a Tein EnduraPro Plus OE-shape shock absorber engineered as a direct-fit replacement for the 2015 and newer Ford Mustang (S550) front left position. It reuses the factory spring and upper mount and installs using the same lower spring seat shape as the original equipment shock.
Does the VSGC0-B1MS2-L work with my factory springs?Yes. The VSGC0-B1MS2-L is designed as an OE-shape replacement, meaning it reuses your vehicle's factory spring and, on most applications, the factory upper mount as well.
Is the VSGC0-B1MS2-L sold as a single shock or a full kit?The VSGC0-B1MS2-L is sold individually as a single shock, so confirm quantity needed for your vehicle before ordering.
Will the VSGC0-B1MS2-L lower my ride height?No. The EnduraPro platform is designed to maintain a ride height close to factory when paired with the OE spring, unlike a coilover kit.
Does the VSGC0-B1MS2-L include a damping adjustment dial?Yes. EnduraPro Plus units like the VSGC0-B1MS2-L include a damping force adjustment dial that adjusts compression and rebound simultaneously.
What is the Hydraulic Bump Stopper on the VSGC0-B1MS2-L?The H.B.S. converts full-stroke impact energy into heat, reducing harshness and reducing stress on the damper internals during hard compression events.
Is the VSGC0-B1MS2-L EDFC compatible?On applicable vehicles the VSGC0-B1MS2-L can work with Tein's EDFC electronic damping control, though compatibility should be verified for your specific chassis.
How is the VSGC0-B1MS2-L finished for corrosion resistance?The shell case uses Tein's patented TEIN-Green two-layer, one-bake powder coating process, which improves resistance to corrosion and coating degradation over time.
Install Instructions
- Raise and safely support the vehicle, then remove the wheel on the side being serviced for the VSGC0-B1MS2-L.
- Disconnect any sway bar end link, brake line bracket, or ABS sensor wiring attached to the factory shock assembly.
- Support the spring and upper mount assembly, then remove the lower shock bolt and upper mount fasteners.
- Transfer the factory spring and upper mount to the VSGC0-B1MS2-L using the same lower spring seat orientation as the original shock.
- Install the assembled unit into the vehicle, torque all fasteners to factory specification, and reconnect any brackets or sensors.
- Reinstall the wheel, lower the vehicle, and check ride height and alignment before returning to normal driving.
