Correct Radius Arm Angle After a 4 Inch Lift

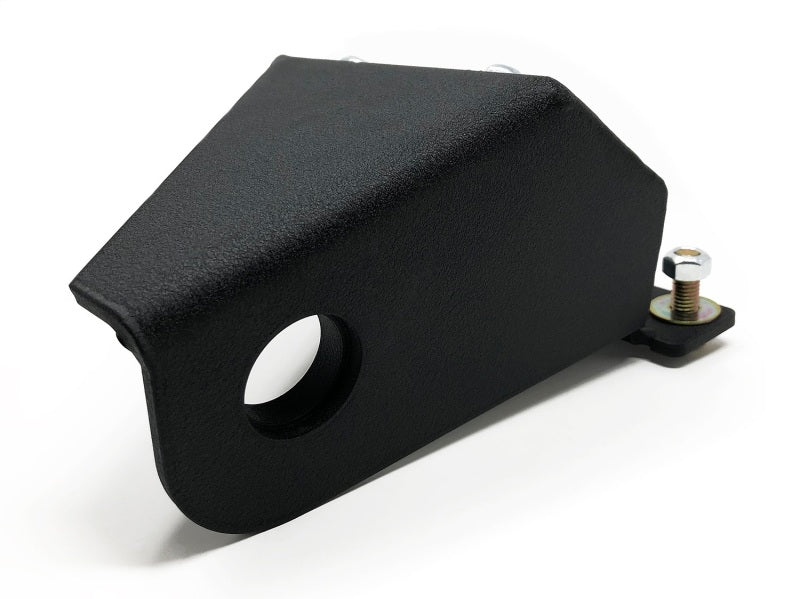

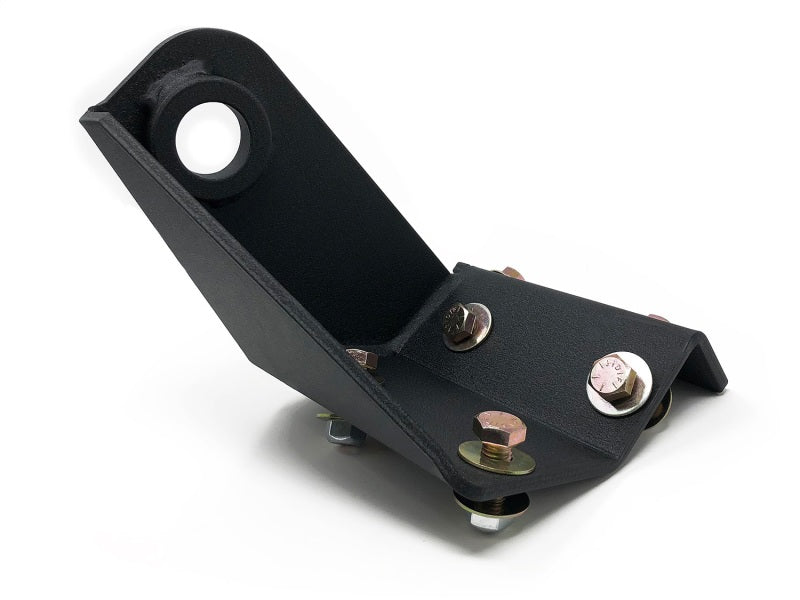

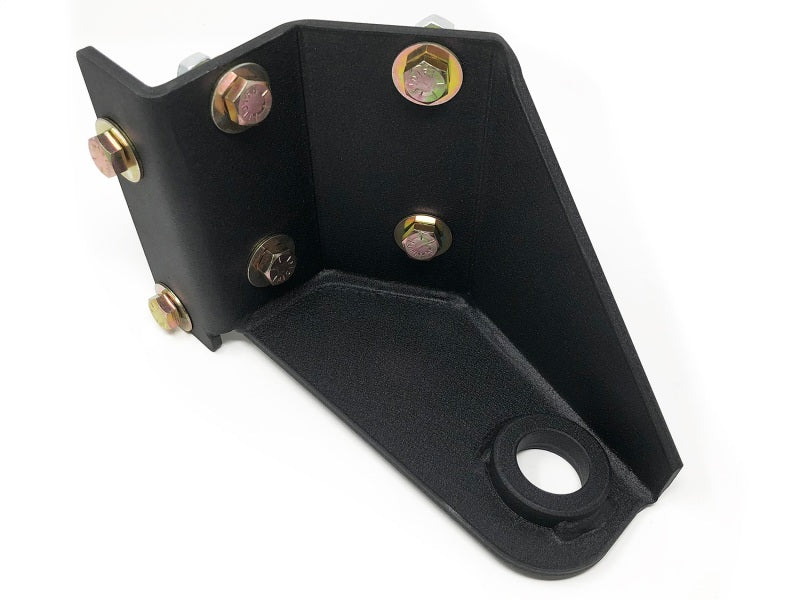

A taller front lift on a 1973-1979 F-150 or Bronco changes the radius arm angle at the frame, which can bind the arm and affect ride quality. Tuff Country's 20744 relocation brackets drop the radius arm mounting point 4 in. to restore proper geometry.
Key Features
- Relocates the radius arm frame mounting point 4 in.
- Bolts to the factory frame rail, no welding required
- Sold as a pair for both sides
- Designed specifically for the 1973-1979 F-150 and Bronco 4WD platform
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1973-1979 | Ford | F-150 | |
| 1974-1979 | Ford | Bronco | |
| 1974 | Ford | Bronco | Base |
| 1975-1979 | Ford | Bronco | Custom |
| 1975 | Ford | Bronco | Northland |
| 1978 | Ford | Bronco | Northland |
| 1975 | Ford | Bronco | Ranger |
| 1978-1979 | Ford | Bronco | Ranger XLT |
| 1975-1977 | Ford | Bronco | Sport |
| 1973 | Ford | Bronco | Wagon |
| 1977-1978 | Ford | F-150 | Base |
| 1977-1979 | Ford | F-150 | Custom |
| 1977-1978 | Ford | F-150 | Northland |
| 1977-1979 | Ford | F-150 | Ranger |
| 1978-1979 | Ford | F-150 | Ranger Lariat |
| 1977-1979 | Ford | F-150 | Ranger XLT |
| 1977 | Ford | F-150 | XLT |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 20744 |
| Drop amount | 4 in. |
| Quantity | Pair |
| Installation | Bolt-on to factory frame rail |
What's Included

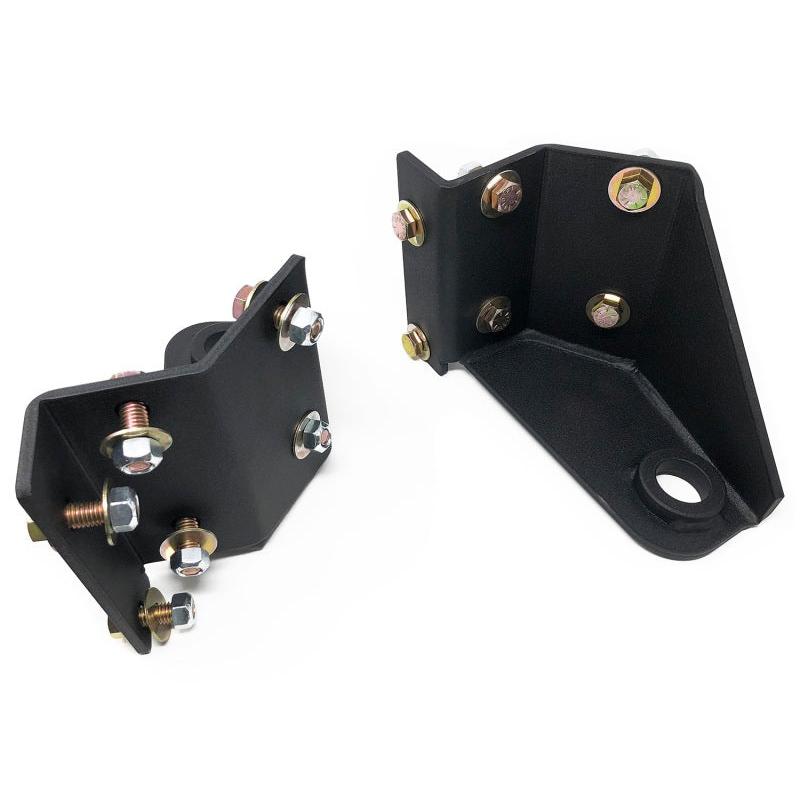

- 2 radius arm drop brackets
- Mounting hardware
About Tuff Country
Tuff Country EZ-Ride Suspension has manufactured American-made lift kits, leveling kits, traction bars, and suspension hardware for trucks and SUVs since the 1970s. Tuff Country components are engineered as bolt-on or direct-fit upgrades that work with the factory suspension geometry, and most kits carry a limited lifetime warranty on original components.
FAQ
Why is a radius arm bracket needed after a lift?A taller lift changes the radius arm's angle at the frame, and the bracket relocates the mount to correct that angle.
Does installation require welding?No, these brackets bolt to the factory frame rail.
How much does this bracket drop the radius arm mount?4 in. from the stock location.
Are these brackets sold individually or as a pair?As a pair, covering both sides.
Does this bracket fit a 2WD F-150?No, this part number is for the 4WD F-150 and Bronco platform.
Is this bracket compatible with any lift height?It is designed to correct geometry for lifts in the range Tuff Country's own kits use on this platform, verify compatibility with your specific lift height.
What is included in the kit?The pair of brackets and the mounting hardware needed to bolt them to the frame.
Can this bracket be used with a non-Tuff Country lift kit?It is designed for radius arm geometry correction and may be compatible with other lift kits producing a similar amount of lift, verify fitment before ordering.
Installation Instructions
- Support the vehicle and remove the front wheels for access.
- Disconnect the radius arm from its factory frame mounting point.
- Install the new relocation bracket onto the frame rail using the supplied hardware.
- Reconnect the radius arm to the new, relocated mounting point on the bracket.
- Torque all hardware to specification and check alignment before returning to normal driving.
