Increase front suspension geometry control with a complete tubular upper and lower arm package.

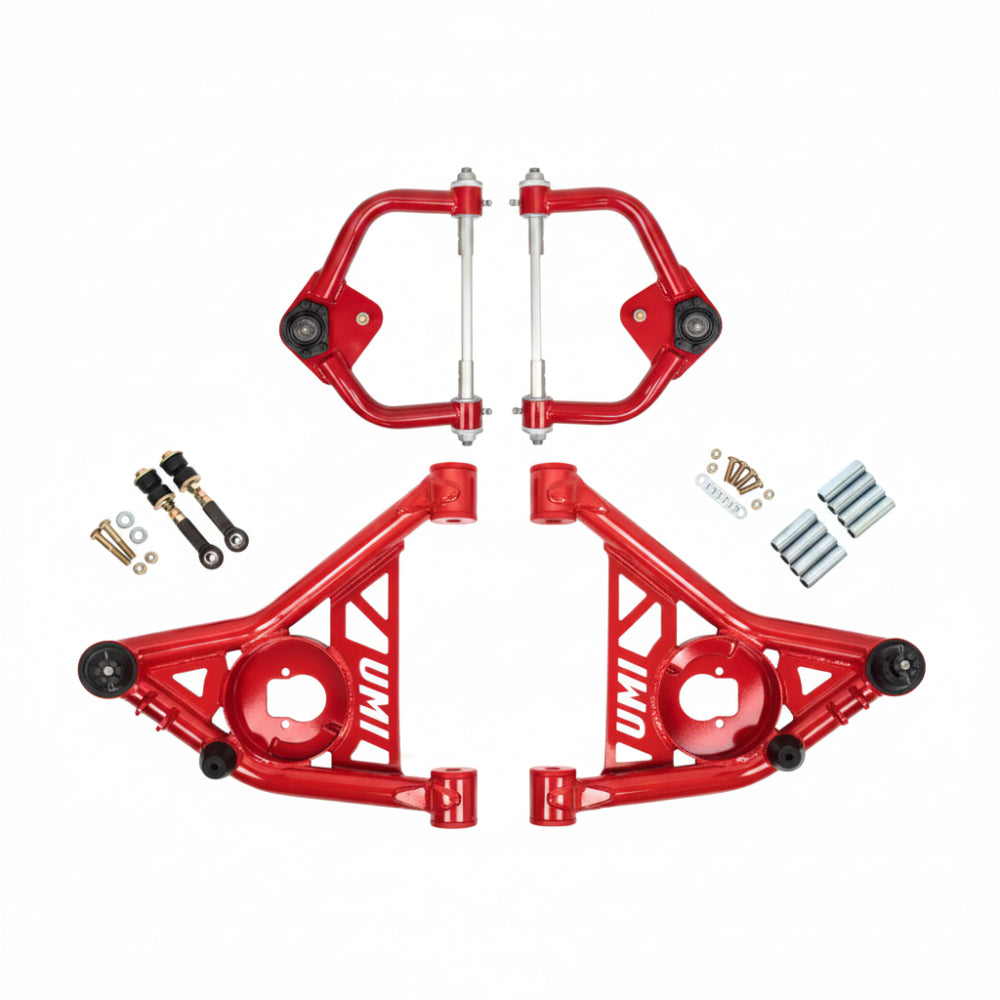

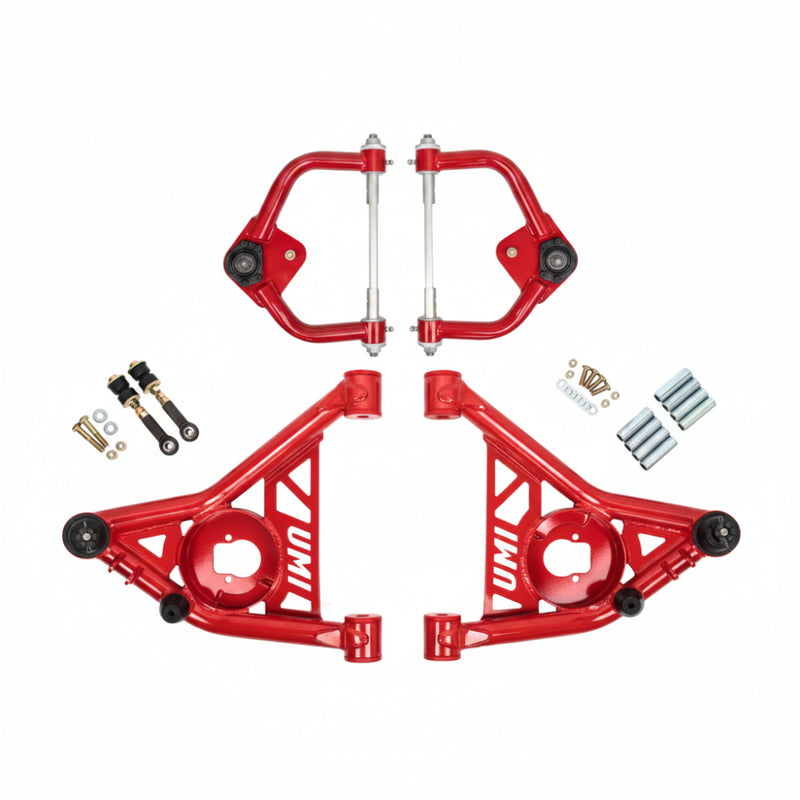

UMI Performance part 265153-R pairs red powder coated upper and lower control arms for second generation GM F-body vehicles.
Key Features
- For 265153-R, tubular mild steel construction with red powder coat
- Upper and lower control arms supplied as pairs
- Chromoly offset upper cross shafts
- Delrin upper bushings and polyurethane lower bushings
- 5 to 7 degrees of positive caster design range
- Standard height ball joints and double shear sway bar end link mounts
Fitment
| Years | Make | Model | Position |
|---|---|---|---|
| 1970-1981 | Chevrolet | Camaro | Front upper and lower |
| 1970-1981 | Pontiac | Firebird | Front upper and lower |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 265153-R |
| Position | Front upper and lower |
| Material | DOM mild steel tubing |
| Finish | Red powder coat |
| Caster Range | 5 to 7 degrees positive |
| Camber Range | 0 to 2.5 degrees negative |
| Adjustment | Non-adjustable |
| Hardware | Mounting hardware sold separately |
What's Included
- 265153-R: Pair of UMI 2651 lower control arms
- Pair of UMI 2653 upper control arms
- Ball joints
- Polyurethane bump stops
- Lower spring buckets
- Double shear sway bar end link mounts
About UMI Performance
UMI Performance manufactures American made chassis and suspension components in Philipsburg, Pennsylvania.
FAQ
What is the 265153-R?It is the exact manufacturer part number for this upper and lower control arm kit.
Which vehicles fit this kit?It is verified for 1970-1981 Chevrolet Camaro and Pontiac Firebird applications.
What color is the finish?This version has UMI red powder coat.
Are upper and lower arms included?Yes. The kit includes a pair of each.
Is mounting hardware included?No. Order the correct year specific hardware separately.
Which bushings are used?The upper arms use Delrin bushings and the lower arms use polyurethane bushings.
Are the ball joints tall or standard height?The supplied ball joints are standard height.
Is an alignment required?Yes. Complete a professional wheel alignment after installation.
Installation Instructions
- Before installing 265153-R, select the correct separate mounting hardware, 1/2 inch for 1970-1974 or 14 mm for 1975-1981 lower arms.
- Remove the original arms and install the upper and lower assemblies using the correct service procedure and torque values.
- Verify spring seating and sway bar end link alignment, then complete a professional wheel alignment.
