USA Standard Axle Shaft For 68-72 Chevelle & 70 Camaro

Bolt-In Strength for Your Classic GM 12-Bolt Muscle Car Rear End

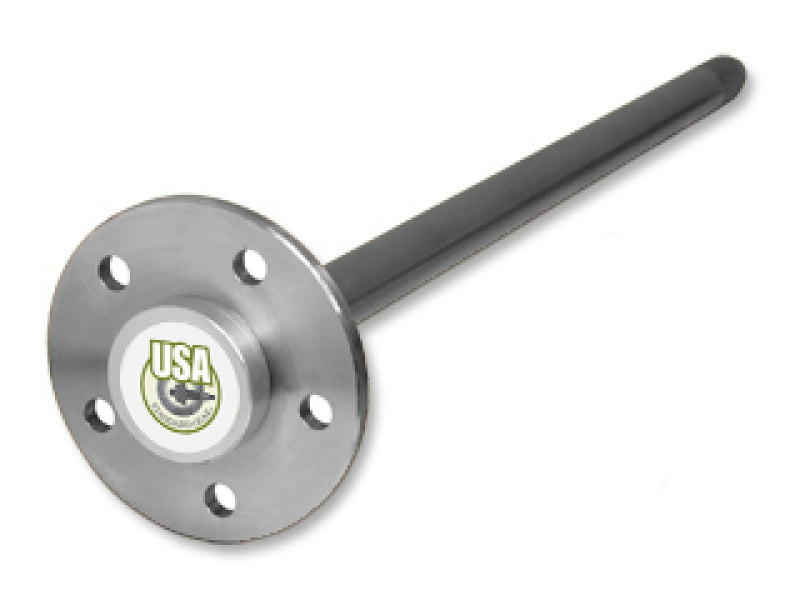

The ZA G3969285 is a direct-fit replacement axle shaft engineered specifically for the GM 8.875" 12-bolt passenger car rear axle found in 1968-1972 Chevrolet Chevelle and 1970 Camaro applications. USA Standard Gear manufactures this shaft from 1541H alloy steel — a manganese-boron alloy known for superior fatigue resistance and toughness compared to standard 1040 carbon steel. At 30-1/8" (30.125") in length with a 30-spline count, the ZA G3969285 restores your C-clip-style 12-bolt to factory dimensions while delivering upgraded material quality that holds up under spirited street driving and weekend strip use alike.

The shaft is double-drilled to accept both OEM press-in wheel studs and 1/2" screw-in studs, giving you flexibility when rebuilding the axle with upgraded hardware. It fits the passenger car version of the GM 8.875" housing used in the Chevelle and the matching 1970 Camaro application.

Key Features

• 1541H Alloy Steel Construction — manganese-boron alloy for improved strength over OEM carbon steel
• Direct OEM Dimensions — 30.125" length, 30-spline count, correct C-clip groove
• Double-Drilled Flange — accepts OEM press-in studs or 1/2" screw-in stud upgrade
• C-Clip Design — correct for GM 8.875" 12-bolt passenger car housing
• Sold Individually — order two for a complete pair

What's Included

• 1 x replacement axle shaft, one side (USA Standard 30-spline 1541H alloy)

This Part Fits

Frequently Asked Questions

• Q: Is this an OEM-equivalent replacement or an upgrade?
  A: The ZA G3969285 is built to OEM dimensions for a direct bolt-in fit, but uses 1541H alloy steel rather than the original 1040 carbon steel. It is a like-for-like replacement in dimensions with a material upgrade in strength and fatigue resistance.
• Q: How do I tell if my Chevelle has a 12-bolt or a 10-bolt rear axle?
  A: Count the bolts on the rear differential cover. The GM 8.875" 12-bolt has twelve bolts on a roughly oval cover. The 10-bolt has ten bolts on a smaller, more square cover. You can also check the axle tag on the housing for the gear ratio and axle code.
• Q: Does the ZA G3969285 fit the 1970 Camaro?
  A: Yes. The 1970 Camaro RS, SS, and Z28 variants equipped with the GM 8.875" 12-bolt rear use the same axle shaft dimensions as the Chevelle of the same era. This shaft is a correct fit for any 1970 Camaro running the C-clip 12-bolt rear, regardless of trim level.
• Q: What is a C-clip axle and how does shaft removal work?
  A: A C-clip axle retains the shaft inside the housing using a small C-shaped clip that seats in a groove on the splined end of the axle. To remove it, the differential cover must come off, the cross pin removed, and the C-clip slid out before the shaft can be withdrawn. No bearing press is required at the housing end.
• Q: Do I need to replace the axle bearing when I replace the shaft?
  A: The bearing rides on the axle shaft in the C-clip design. If the shaft journal shows wear or scoring, or if the bearing shows roughness or noise, replace both at the same time. If the bearing is in good condition, replacing the shaft alone is acceptable.
• Q: Will this shaft work with my Positraction or limited-slip differential?
  A: Yes. The 30-spline count on the ZA G3969285 is compatible with all factory Positraction carrier options and most aftermarket limited-slip and locking differentials designed for the GM 8.875" 12-bolt. Verify your carrier's spline requirement before ordering if you are running a custom or heavily modified center section.
• Q: Can I use 1/2" screw-in studs with the double-drilled flange?
  A: Yes. The double-drilled flange on the ZA G3969285 accommodates both the factory press-in stud diameter and the 1/2" screw-in stud commonly used in performance and racing applications. This is a popular upgrade for Chevelles and Camaros used on the strip.
• Q: What warranty applies?
  A: USA Standard Gear replacement axle shafts carry a warranty against manufacturing defects. Under the Magnuson-Moss Warranty Act, installing an aftermarket axle shaft does not automatically void your vehicle's original drivetrain warranty coverage on unrelated components. Retain your purchase documentation.

Installation Notes

• Drain the rear differential fluid and remove the cover to access the cross pin and C-clips
• Remove the cross pin retaining bolt, slide out the cross pin, and push the axle shaft inward to expose the C-clip
• Remove the C-clip from the axle spline groove and withdraw the old shaft from the housing
• Inspect the axle tube seal and bearing — replace if worn or leaking
• Slide the replacement shaft into the housing, taking care not to damage the seal lip. Seat the splines fully into the carrier.
• Install the C-clip into the spline groove, pull the shaft outward to seat the clip, and reinstall the cross pin and retaining bolt
• Reinstall the cover with a new gasket, fill with the correct gear oil, and check for leaks
