SKU: 28416 | UPC: 690092183967

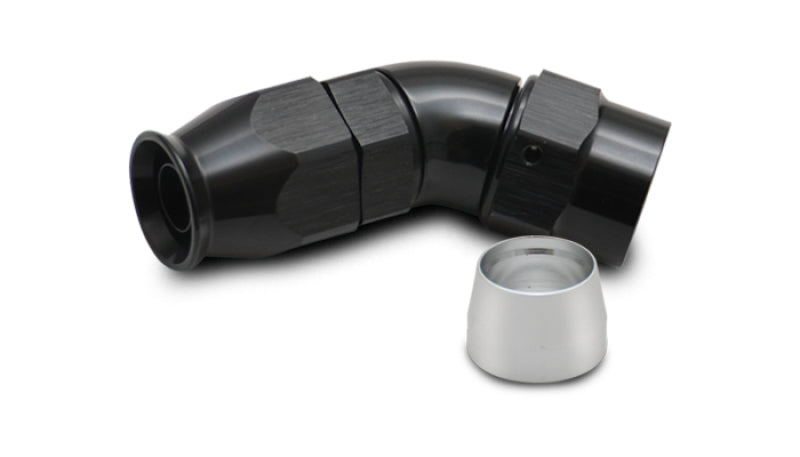

Vibrant 1 Piece PTFE Hose End -16 AN 45 Degree - Universal Performance
This Vibrant Performance one-piece PTFE hose end delivers reliable connections for -16 AN (1 inch ID) braided PTFE hoses in high-pressure oil fuel and coolant systems. It fits any custom fabrication project on performance vehicles dragsters and race cars needing precise 45-degree routing. Built for durability and leak-free performance under extreme conditions.
Key Features
- CNC Machined 6061-T6 Aluminum: Provides strength and reduces weight for better vehicle dynamics without sacrificing flow capacity
- Black Anodized Finish: Resists corrosion and wear while giving a clean professional look in engine bays
- -16 AN 45 Degree Design: Matches 1 inch ID PTFE hose for smooth bends and optimal hose routing around tight spaces
- One-Piece Construction: Ensures secure crimp-style fit on beaded PTFE hose ends for zero leaks at high pressures
- High Burst Pressure Rating: Handles demands of motorsport applications up to 1000+ PSI safely
Product Notes
- Designed exclusively for Vibrant 1000 and 2000 series PTFE braided hoses
- Inspect hose and fittings for damage before assembly
- Box dimensions 4 x 3 x 1 inches shipping weight 0.18 lbs
Installation Notes
- Professional installation recommended.
- Use Vibrant-specific crimping tool for secure attachment to beaded hose end
- Compatible with standard AN O-ring boss ports and adapters
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Racing Drag Custom |
Why Choose Vibrant Performance?
- Earned trust of industry professionals worldwide
- Manufactured to high standards in quality and reliability
- Complete one-stop solution for performance plumbing needs
Frequently Asked Questions
-
Q: What type of hose is compatible with this fitting?
A: Fits Vibrant Performance 1000 series and 2000 series PTFE braided hoses with 1 inch inner diameter and beaded ends -
Q: What material and finish does it have?
A: CNC machined from 6061-T6 billet aluminum with durable black anodized coating for corrosion resistance -
Q: What is the warranty and installation tip?
A: Backed by Vibrant limited lifetime warranty. crimp with matched tools to achieve maximum pressure holding
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact protective box 4 x 3 x 1 inches
- Weight: 0.18 lbs
