SKU: 10285 | UPC: 690092145705

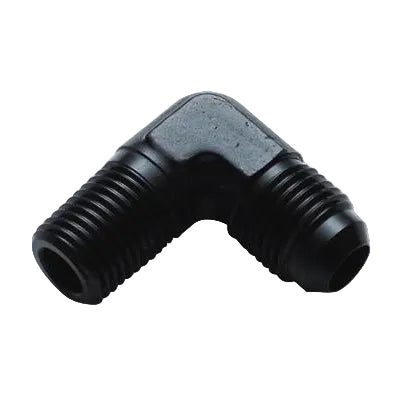

Vibrant Universal -16AN to 3/4in NPT 90 Degree Elbow Adapter Fitting
This Vibrant Performance adapter fitting connects -16AN hose ends to 3/4in NPT ports at a 90-degree angle for tight routing in oil fuel and coolant systems. It fits performance cars trucks and race vehicles universally providing reliable flow and leak-free seals. Constructed from 6061-T6 aluminum it weighs just 0.3 lbs for lightweight durability with overall dimensions of 2.25 inches long x 1.75 inches wide x 1.75 inches tall.
Key Features
- 6061-T6 Aluminum Alloy: Lightweight material offers strength corrosion resistance and reduced overall vehicle weight
- Precision Machining: Smooth internal flow paths minimize turbulence and pressure drop in high-performance plumbing
- Anti-Leak O-Ring Seal: Ensures secure connections that hold under extreme pressures without drips or failures
- Black Anodized Finish: Provides long-lasting protection against wear and adds a professional look to engine bays
- Universal Compatibility: Fits most oil pumps fuel pumps filters dry sumps and other NPT-threaded components
Product Notes
- Thread specifications: -16AN male flare to 3/4-14 NPT male straight pipe thread
- Sold as single piece in protective packaging
- Weight 0.3 lbs with dimensions 2.25in L x 1.75in W x 1.75in H
Installation Notes
- Professional installation recommended.
- Apply PTFE tape or pipe sealant to NPT threads only do not use on AN flare side
- Torque to 25-30 ft-lbs on NPT side and hand-tighten plus 1/4 turn on AN flare
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Models | All |
Why Choose Vibrant Performance?
- Established leader in motorsports plumbing components
- Manufactured to exacting standards for consistent performance
- Engineered for seamless integration in custom fabrication projects
Frequently Asked Questions
-
Q: Will this adapter work with standard -16AN braided hose assemblies?
A: Yes it accepts any standard -16AN female swivel hose end for quick assembly -
Q: What finish and material does it use?
A: Black anodized 6061-T6 aluminum for durability and heat resistance up to 400 degrees F -
Q: Does it require special tools for installation?
A: Standard AN wrenches and NPT pipe thread sealant are sufficient for secure installation
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective retail box 4in x 3in x 1in
- Weight: 0.3 lbs
