SKU: 10697 | UPC: 690092176099

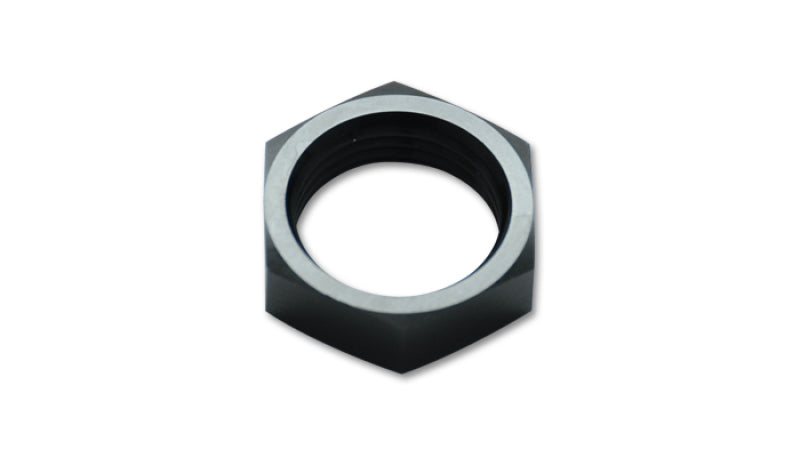

Vibrant -20AN Bulkhead Nut - Aluminum | Universal Application
The Vibrant -20AN Bulkhead Nut in aluminum creates a clean, reliable pass-through for large -20AN hoses through firewalls, chassis panels, or bulkheads in performance vehicles. This precision component supports high-flow oil, fuel, or coolant lines without chafing or leaks. Built for racing and street applications where durability meets low weight.
Key Features
- Material: CNC machined from 6061-T6 aluminum alloy for strength-to-weight balance in demanding setups
- Finish: Black anodized coating protects against corrosion, fuel, and oil exposure
- Thread Specs: 1-7/16"-12 male to 1-7/16"-12 female for secure sandwich mounting on panels up to 0.25" thick
- Size Compatibility: Designed for -20AN hoses with 1-1/4" inner diameter, handling high-volume flows
- Design: Smooth bore prevents hose abrasion, ensuring long-term reliability in vibration-heavy environments
Product Notes
- Inspect panel thickness before installation to confirm compatibility
- Clean threads thoroughly for optimal sealing performance
- Compact size fits tight spaces in engine bays or cockpits
Installation Notes
- Professional installation recommended.
- Apply thread sealant or PTFE tape to male threads for leak-free assembly
- Compatible with standard AN bulkhead studs and firewall fittings
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All | All |
Why Choose Vibrant Performance?
- Earned trust from industry professionals worldwide for oil system components
- Manufactured to strict quality standards for consistent reliability
- Offers complete solutions for performance hardware needs
Frequently Asked Questions
-
Q: What hose size fits this bulkhead nut?
A: Specifically matches -20AN hoses with 1-1/4" ID for maximum flow in oil or fuel systems -
Q: What material and finish are used?
A: 6061-T6 aluminum body with black anodized finish for corrosion resistance and durability -
Q: Does it require special tools for installation?
A: Standard AN wrenches suffice. torque to 25-30 ft-lbs after applying sealant
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective poly bag in 2" x 2" x 1" box
- Weight: 1 oz (0.06 lbs)
