SKU: 11473 | UPC: 690092174583

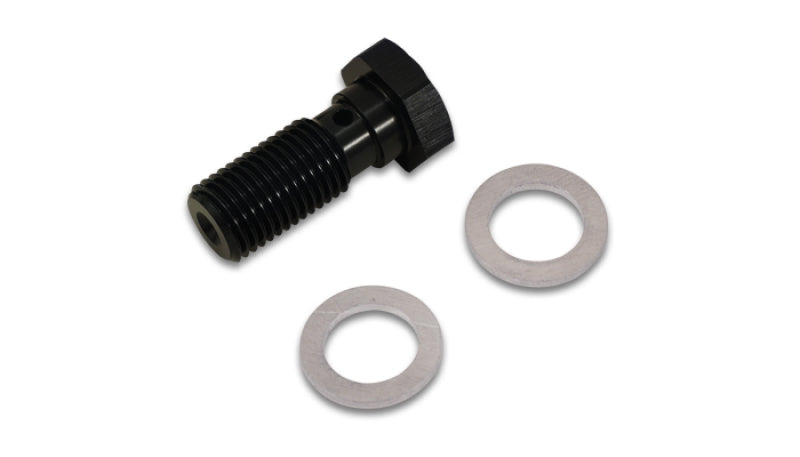

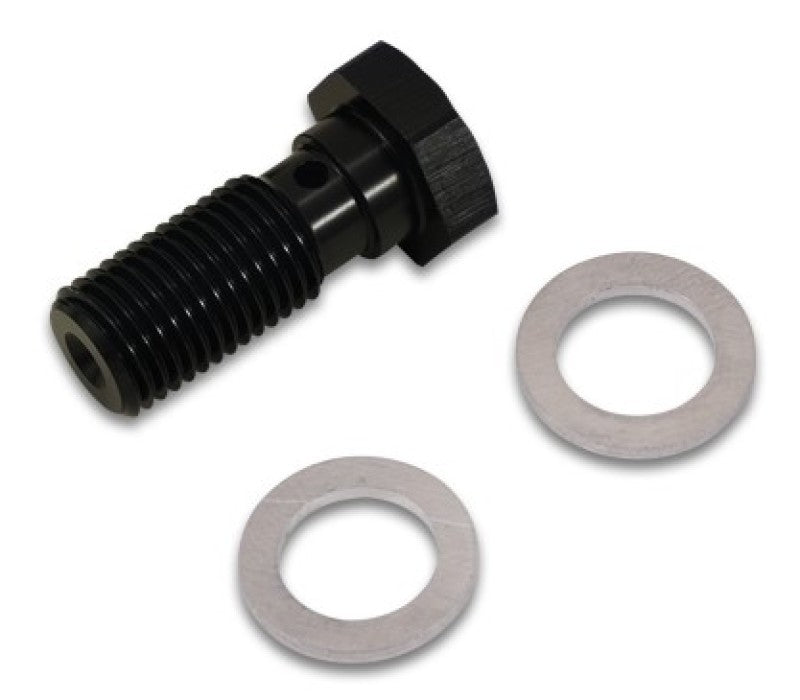

Vibrant Banjo Bolt Thread Size 7/16in - 24 Bolt Length 23mm - Universal Performance Fit
This Vibrant Performance banjo bolt features 7/16"-24 UNF thread and 23mm length designed for secure -10 AN banjo fittings in oil and fuel systems. It delivers consistent flow and pressure in high-performance automotive applications including custom oil coolers and transmission lines. Trusted by builders for dependable sealing under extreme conditions.
Key Features
- Thread Specification: 7/16"-24 UNF precisely matches -10 AN banjo fittings for direct compatibility in oil and transmission setups
- Bolt Length: 23mm overall length ensures proper engagement and clearance in tight engine bays
- Material Construction: High-strength steel withstands high pressures and temperatures in racing environments
- Corrosion Protection: Zinc plating resists rust and extends service life in harsh conditions
- Precision Manufacturing: CNC machined tolerances guarantee leak-proof performance and reusability
Product Notes
- Inspect crush washers before reuse or replace with new for optimal sealing
- Use thread sealant on male threads if required by application
- Store in dry area to maintain plating integrity
Installation Notes
- Professional installation recommended.
- Torque to 20-25 ft-lbs depending on application to avoid damage
- Compatible with standard AN-10 banjo fittings and adapters
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Various | Performance Vehicles | Oil Cooler/Transmission Systems |
| 2004-2021 | Subaru | Impreza WRX/STI | All |
| 2003-2006 | Mitsubishi | Lancer Evolution | VIII/IX |
| 2017-2021 | Honda | Civic Type R | FK8 |
| 2009-2020 | Nissan | GT-R | R35 |
Why Choose Vibrant Performance?
- Earned trust of industry professionals worldwide for oil system components
- Manufactured to highest standards of quality and reliability
- Complete range serves all performance fabrication needs
Frequently Asked Questions
-
Q: What AN size does this banjo bolt fit?
A: Designed specifically for -10 AN banjo fittings used in oil coolers transmissions and fuel systems -
Q: What material is the bolt made from?
A: Constructed from high-strength steel with zinc plating for durability and corrosion resistance -
Q: Is installation straightforward?
A: Yes with basic tools torque properly and pair with compatible crush washers for secure fit
Shipping & Handling
- Method: USPS First Class or UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Poly bag in small box 2 x 2 x 1 inches
- Weight: 0.05 lbs
