SKU: 29932 | UPC: 690092174927

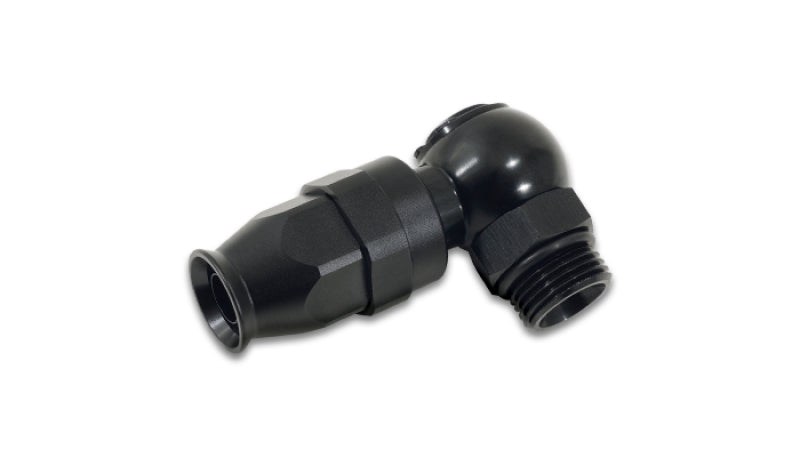

Vibrant Performance Banjo Hose End for PTFE Lined Flex Hose -12 AN Bolt -12 ORB
This banjo hose end from Vibrant Performance adapts -12 AN male flare bolts to -12 ORB female ports on PTFE lined stainless braided flex hose. It suits custom oil and fuel line assemblies in race cars, dragsters, street performance vehicles, and industrial hydraulic systems. Expect consistent high-flow performance and pressure retention up to 1000 PSI.
Key Features
- CNC Machined 6061-T6 Aluminum: Delivers lightweight strength rated for 1000 PSI burst pressure and high vibration resistance.
- Black Anodized Finish: Protects against corrosion, fuel, and oil exposure for long service life in engine bays.
- -12 AN Male Flare Thread: 3/4-16 thread secures to standard banjo bolts with 37-degree flare for zero leaks.
- -12 ORB Female Port Thread: 3/4-16 straight thread with O-ring groove ensures sealed connection to block ports.
- PTFE Hose Compatible: Fits -12 AN ID (0.75 inch) PTFE lined flex hose for temps from -100F to 450F.
Product Notes
- Inspect O-ring condition before assembly and replace if damaged.
- Avoid over-torquing to prevent thread galling.
- Store in dry conditions to maintain anodizing integrity.
Installation Notes
- Professional installation recommended.
- Lubricate O-ring with assembly lube and torque to 22-25 ft-lbs.
- Compatible with standard -12 AN banjo bolts and ORB port fittings.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Race/Street/Off-Road |
| Universal | All | Race Cars | Dragsters/Circle Track |
| Universal | All | Custom Builds | Muscle Cars/Trucks |
Why Choose Vibrant Performance?
- Earns trust from racing teams and fabricators globally.
- Builds every part to exact tolerances for dependable flow.
- Offers full line of fittings for complete system builds.
Frequently Asked Questions
-
Q: Will this work with standard -12 AN PTFE hose?
A: Yes it matches -12 AN (0.75 inch ID) PTFE lined stainless braided hose for oil cooler and dry sump lines. -
Q: What material and thread specs are used?
A: 6061-T6 aluminum black anodized with 3/4-16 threads on both -12 AN flare and -12 ORB O-ring boss sides. -
Q: What warranty applies and install tips?
A: Limited lifetime warranty on manufacturing defects. Clean fittings, lube O-ring, torque properly for seal.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective poly bag in 3 x 2 x 1 inch box
- Weight: 0.15 lbs
