SKU: 24914 | UPC: 690092158163

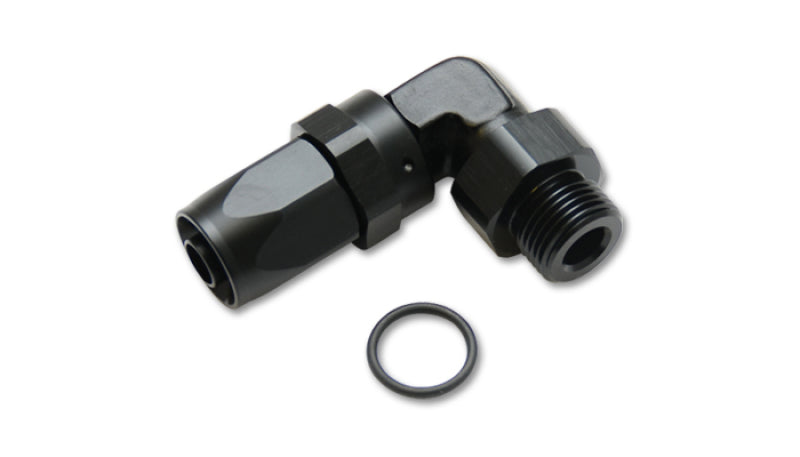

Vibrant Male -16AN to -16AN ORB 90 Degree Hose End Fitting - Universal
This 90 degree hose end fitting from Vibrant Performance connects -16AN male braided hose to -16AN ORB ports for fuel oil and coolant lines in performance vehicles. Made from 6061 aluminum alloy it delivers lightweight construction smooth unrestricted flow and a secure anti leak seal. Designed for use with all Vibrant Performance braided flex hose it suits any custom automotive plumbing setup.
Key Features
- 6061 Aluminum Alloy: Lightweight durable material reduces system weight while maintaining strength for high pressure applications
- Black Anodized Finish: Provides corrosion resistance and a professional look that matches performance builds
- Smooth Bore Design: Ensures maximum flow rates with minimal turbulence in fuel oil or coolant systems
- Swivel Hose End: Allows easy 360 degree rotation during assembly for precise hose routing
- ORB Port Seal: O-ring boss connection creates a reliable leak proof fit on threaded ports
Product Notes
- Verify hose and port sizes match -16AN before installation
- Clean threads and surfaces prior to assembly for best seal performance
- Arrives in protective packaging to avoid shipping damage
Installation Notes
- Professional installation recommended.
- Torque to 40-45 ft-lbs on ORB port using AN swivel tool
- Compatible with PTFE lined or rubber AN braided hose up to -16 size
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Performance Vehicles | All |
Why Choose Vibrant Performance?
- Established brand for motorsports fuel and oil plumbing
- Precision CNC machined components for consistent quality
- Engineered seals and tolerances for dependable high performance use
Frequently Asked Questions
-
Q: Will this fitting work with Vibrant braided hoses?
A: Yes it pairs directly with all Vibrant Performance braided flex hoses in -16AN size for seamless plumbing -
Q: What material and finish does it have?
A: Built from 6061-T6 aluminum with black anodized coating for strength corrosion protection and style -
Q: What tools are needed for install?
A: AN line wrench set flare tool kit and torque wrench professional help advised for custom routing
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Compact box 4 x 2 x 4 inches
- Weight: 0.30 lbs
