SKU: 22654 | UPC: 690092177485

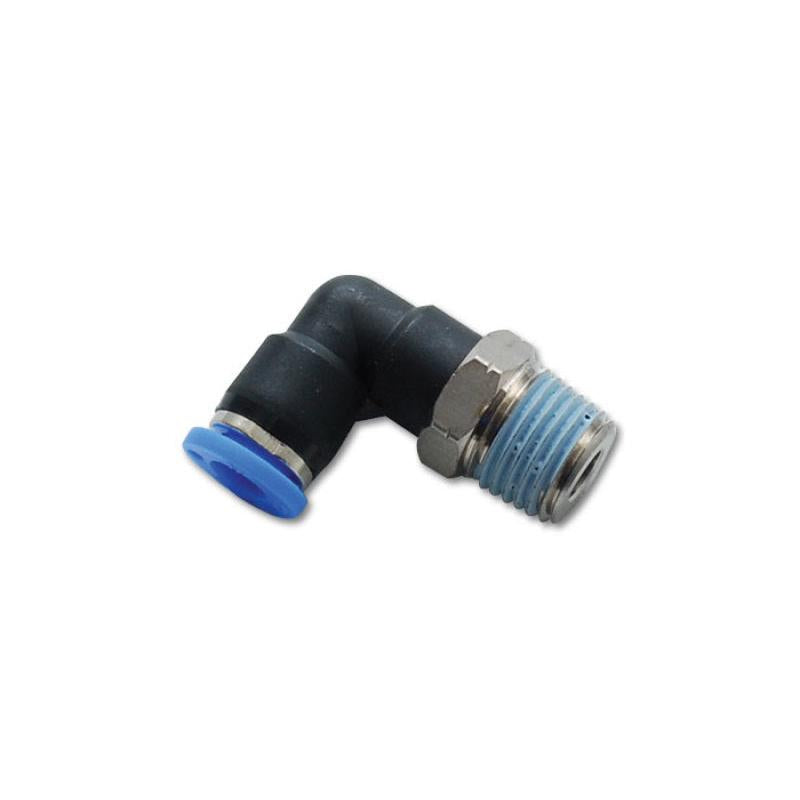

Vibrant Performance Male Elbow Fitting for 3/16in OD Tubing (1/8in NPT Thread) - Universal
Vibrant Performance pneumatic male 90° swivel elbow push-lock vacuum fitting connects 3/16in OD tubing to 1/8in NPT ports for vacuum lines boost hoses PCV systems in cars trucks race vehicles. Secure push-to-connect design works with ambient air vacuum pressurized applications up to 150 PSI. PTFE coated threads deliver smooth installation leak-free performance in demanding conditions.
Key Features
- 90 Degree Swivel Elbow: Allows flexible routing in tight engine bay chassis spaces for custom setups
- Push Lock for 3/16in OD Tubing: Provides instant secure connection without clamps tools for quick reliable assembly
- 1/8in NPT Male Thread: Fits standard ports on carburetors throttle bodies intake manifolds directly
- PTFE Coated Threads: Cuts friction prevents galling resists corrosion for long-term durability
- 150 PSI Max Pressure: Handles vacuum control nitrous turbo boost lines without failure
Product Notes
- Works with reinforced rubber nylon polyurethane tubing of 3/16in OD
- Quick release collar enables tool-free disconnection for easy maintenance
- Compact design requires minimal clearance for inline installation
Installation Notes
- Professional installation recommended.
- Cut tubing square push firmly past internal O-ring until seated
- Hand tighten NPT thread then wrench 1 to 1.5 turns maximum
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All | All |
Why Choose Vibrant Performance?
- Proven leader in exhaust fabrication components for motorsports
- Engineered for durability in high vibration heat conditions
- Precise tolerances ensure leak-free operation under pressure
Frequently Asked Questions
-
Q: What tubing sizes fit this elbow?
A: Designed for 3/16in outer diameter tubing including vacuum hose boost line fuel line variants -
Q: What material construction does it use?
A: Glass reinforced nylon body with nickel plated brass threads for strength chemical resistance -
Q: Is a warranty included?
A: Backed by Vibrant Performance limited lifetime warranty against defects in materials workmanship
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective poly bag in 3in x 2in x 1in box
- Weight: 0.05 lbs
