SKU: 26910 | UPC: 690092158194

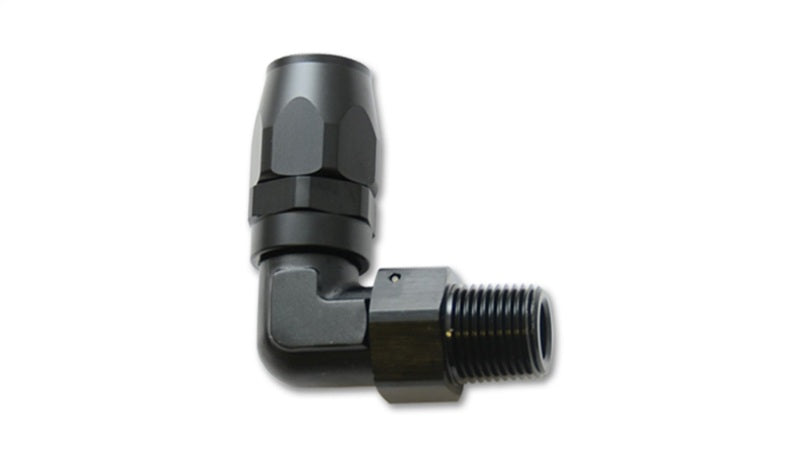

Vibrant Performance Universal Male NPT 90 Degree Hose End Fitting -16AN - 3/4 NPT
This Vibrant Performance hose end fitting joins -16AN braided hose to 3/4-14 NPT male ports using a compact 90 degree swivel for precise routing in custom plumbing. It fits race cars hot rods muscle cars imports trucks with pumps filters reservoirs needing reliable fuel oil or coolant flow. Aluminum build delivers smooth unrestricted flow and leak-proof seals under extreme pressure up to 1000psi.
Key Features
- 6061-T6 Aluminum Alloy: Delivers high strength low weight to cut plumbing mass while holding up in harsh engine bays with heat vibration and stress
- Black Anodized Finish: Protects against corrosion from fuels oils coolants and road grime for long-lasting performance and sleek appearance
- 90 Degree Swivel Design: Allows tight radius turns and easy hose positioning past frame rails headers chassis components
- -16AN to 3/4-14 NPT Male: Matches standard AN braided hose to threaded ports on fuel pumps oil filters coolant reservoirs for direct secure fit
- Anti-Leak O-Ring Seal: Forms tight reusable seal to block leaks hold system pressure and simplify maintenance
Product Notes
- Built for all Vibrant Performance braided flex hose in fuel oil coolant systems
- Reusable construction permits full disassembly for cleaning inspection service
- Lightweight part arrives in protective packaging to guard threads from damage
Installation Notes
- Professional installation recommended.
- Apply PTFE tape or pipe sealant to NPT male threads for leak-free seal
- Works with standard AN swivel hose ends O-ring boss fittings
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Fuel/Oil/Coolant Plumbing |
| 1960-2024 | Chevrolet | Camaro/Corvette | All |
| 1960-2024 | Ford | Mustang/F-100 | All |
| 1980-2024 | Honda | Civic/Accord | All |
| 1964-2024 | Dodge | Challenger/Charger | All |
| 1955-2024 | Chevrolet | Bel Air/Impala | All |
Why Choose Vibrant Performance?
- Trusted in drag racing circle track for reliable results under race conditions
- CNC-machined to exact tolerances for perfect flow fit without restrictions
- Complete matching hose fittings line for easy full system assembly
Frequently Asked Questions
-
Q: Does this fit -16AN braided hose on fuel systems?
A: Yes it swivels onto standard -16AN hose ends from Vibrant or others for high-flow secure connections up to 1000psi -
Q: What material finish is used?
A: CNC machined 6061-T6 aluminum with black anodizing resists fuels oils coolants without corrosion -
Q: What warranty applies?
A: Vibrant Performance offers one-year limited warranty against defects with proper installation
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Individual protective box
- Weight: 0.2 lbs
