SKU: 12460 | UPC: 690092177126

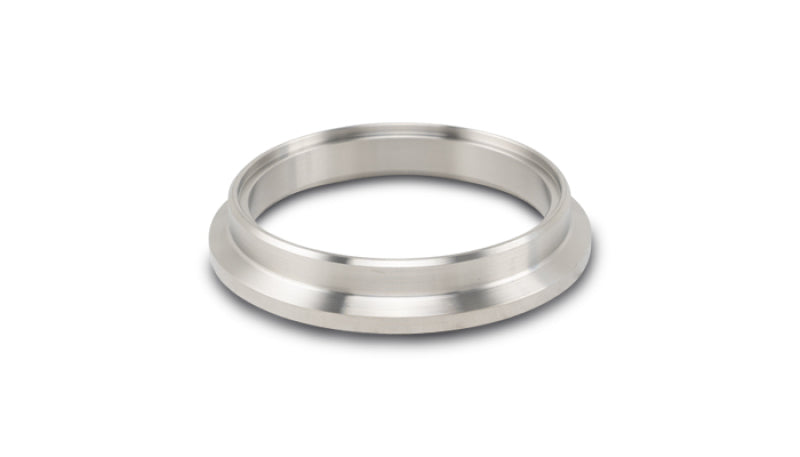

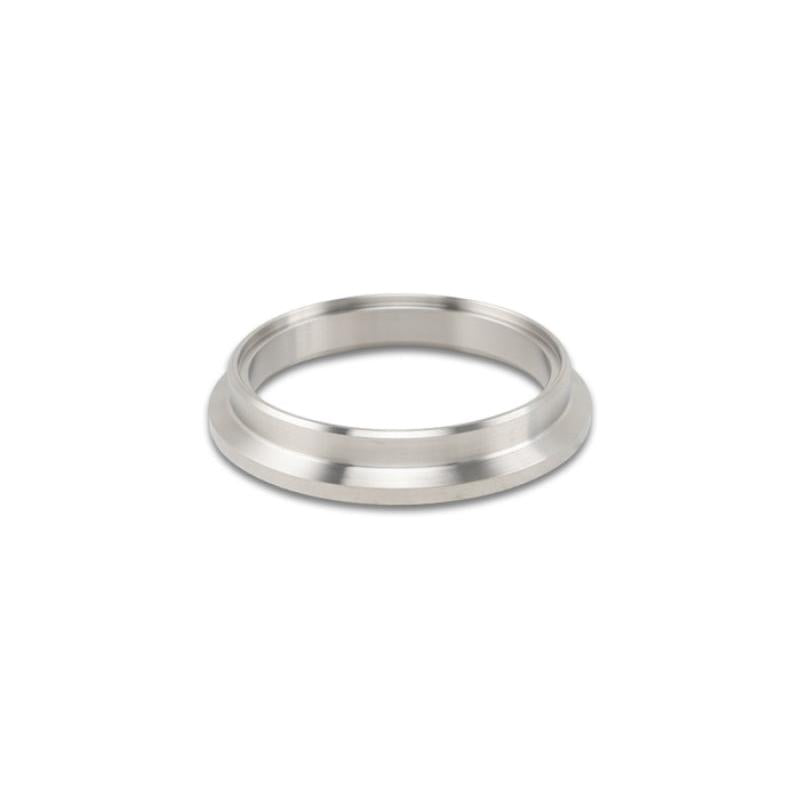

Vibrant Titanium Outlet Flange for Tial 60mm External Wastegate
This CNC-machined titanium flange connects TiAL 60mm external wastegates like MV-R 60mm MVS 60mm and Q series to exhaust dump pipes on custom turbo manifolds. It provides a leak-proof seal under extreme boost and 1600°F heat for reliable boost control in high-horsepower turbo setups. The 0.05 lbs lightweight design reduces weight versus steel flanges to improve throttle response and engine efficiency.
Key Features
- Titanium Build: Grade 5 titanium weighs only 0.05 lbs resists corrosion and withstands 1600°F exhaust temps without deformation
- Precision CNC Machined: Matches TiAL 60mm outlet bolt pattern exactly for zero-gap fit and maximum exhaust flow
- TiAL 60mm Compatible: Direct replacement for MV-R 60mm MVS 60mm and Q 60mm wastegate outlets on any turbocharged application
- Leak-Proof Design: Smooth machined surfaces pair with multi-layer steel gaskets for enduring high-pressure seals
- Universal Dump Pipe Adapter: Bolts to standard 2.5-inch or 3-inch exhaust tubing simplifying custom exhaust routing
Product Notes
- Pair with Vibrant multi-layer gaskets and T6-304 bolts for complete assembly
- Intended for competition use verify clearance on factory manifolds
- Packed in anti-corrosion bag inside protective box
Installation Notes
- Professional installation recommended.
- Torque bolts to 20-25 ft-lbs using anti-seize on threads
- Compatible with TiAL V-band adapters or direct 4-bolt oval flange dump pipes
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | - | TiAL 60mm Wastegates | MV-R 60mm Q 60mm MVS |
Why Choose Vibrant Performance?
- Established leader in precision exhaust components for racing teams worldwide
- USA-made with rigorous quality control for consistent performance
- Engineered for extreme conditions in drag road race and rally applications
Frequently Asked Questions
-
Q: Does this flange fit TiAL MV-R 60mm wastegates?
A: Yes it matches the exact oval 4-bolt outlet pattern on MV-R 60mm MVS 60mm and Q series wastegates for seamless integration -
Q: What titanium grade is used and why?
A: Grade 5 titanium offers 40% lighter weight than stainless with higher strength-to-weight ratio and superior fatigue resistance under heat cycles -
Q: What hardware is needed for install?
A: Use M8x1.25 x 25mm T304 bolts and MLS gasket torque in cross pattern professional fab shop advised for manifold welding
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: 5 x 5 x 1 inch corrugated box with foam inserts
- Weight: 0.05 lbs
