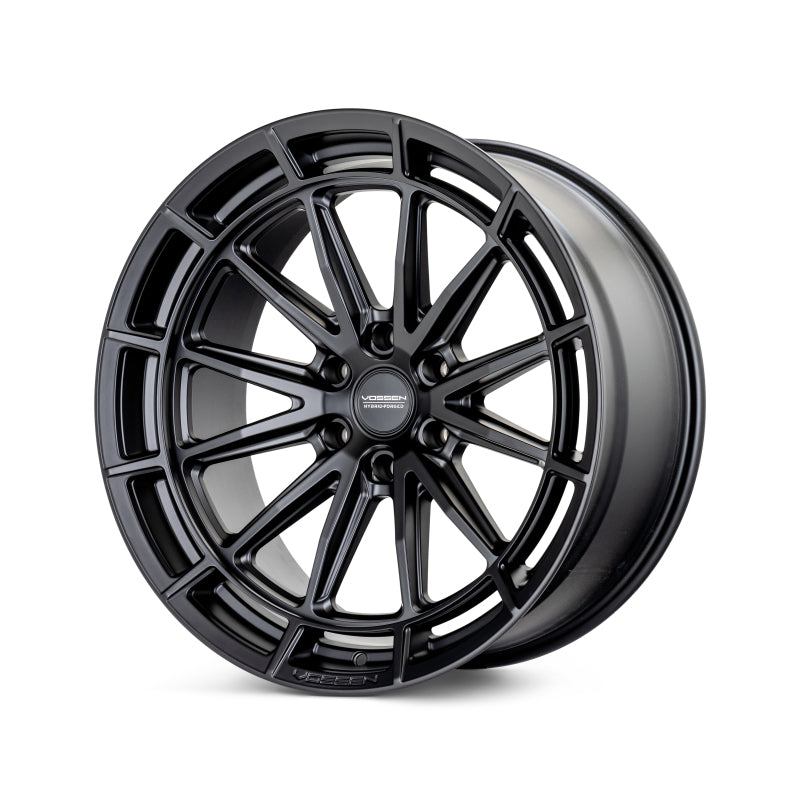

The Vossen HFX-5 is a 6-lug Hybrid Forged wheel built on Vossen's flow forming platform, designed specifically for 6-lug light trucks, SUVs, and full-size pickup trucks. The HFX-5 uses a multi-spoke face design with an aggressive deep concave profile that fills the fender well on lifted and leveled trucks. Each HFX-5 is manufactured using Vossen's flow forming process, which produces a stronger and lighter barrel than conventional casting.
Hybrid Forged Flow Forming Process
The HFX-5 begins as a gravity-cast aluminum face. After casting, the wheel is mounted to a flow forming drum and hydraulic rollers stretch and compress the barrel material radially, improving grain structure. This produces a barrel that is denser, stronger, and lighter than a conventionally cast barrel. The result approaches the properties of a fully forged barrel at a lower cost.
Deep Concave Profile
The HFX-5 is offered in a Deep concave profile. The deep profile positions the face of the wheel significantly inboard relative to the outer lip, creating pronounced three-dimensional depth especially visible on trucks with wider-than-stock tires. It also maximizes brake caliper clearance.
6-Lug Truck Platform Compatibility
This listing is for the HFX-5 in 20x9.5, 6x130, ET30, 84.1mm center bore. 6x130 fitment covers the Mercedes-Benz Sprinter 2500 and 3500 van platforms. Hub centric rings are recommended when vehicle hub bore does not match. Lug nuts, tires, TPMS sensors not included.
Finish: Satin Black
Satin Black is a low-gloss black finish that delivers a sleek, understated appearance without the high-reflectivity of a polished coat.
What's Included
- 1 x Vossen HFX-5 wheel in 20x9.5, 6x130, ET30, Satin Black (single)
- 1 x Vossen center cap
- Vossen valve stem cap
Note: Lug nuts, tires, TPMS sensors, and hub centric rings are not included. Sold individually.
Product Specifications
| Specification | Value |
|---|---|
| Manufacturer Part Number (MPN) | HFX5-0I02 |
| Series | HFX-5 |
| Diameter | 20 in. |
| Width | 9.5 in. |
| Bolt Pattern | 6x130 |
| Offset | ET30 |
| Center Bore | 84.1mm |
| Concave Profile | Deep |
| Construction | Hybrid Forged (flow formed barrel, cast face) |
| Material | A356 aluminum alloy |
| Load Rating | 2,500 lbs per wheel |
| Finish | Satin Black |
| Made In | USA (Miami, FL) |
| Warranty | 5-year workmanship + lifetime structural |
| Sold As | Single wheel |
| UPC | N/A |
Frequently Asked Questions
Q: Does the 6x130 bolt pattern fit the Mercedes-Benz Sprinter?
A: Yes. The 6x130 bolt pattern is the factory bolt pattern for the Mercedes-Benz Sprinter 2500 and 3500. This HFX-5 is a direct bolt-on for those platforms.
Q: Do I need hub centric rings?
A: Hub centric rings are recommended if your vehicle's hub bore is smaller than 84.1mm. They eliminate vibration caused by the wheel sitting off-center on the hub.
Q: What lug nuts do I need?
A: Lug nuts are not included. You will need lug nuts compatible with your vehicle's thread pitch and the HFX-5 seat type (conical/tapered 60°). Consult your vehicle manual for the correct thread pitch.
Q: What tire sizes work with a 20x9.5 wheel?
A: Common tire sizes for a 20x9.5 wheel include 275/55R20 and 285/50R20, depending on your vehicle's fender clearance and suspension setup.
Q: How does the HFX-5 compare to the HF6-5?
A: The HFX-5 uses Vossen's Hybrid Forged flow forming process with a cast face and flow formed barrel, while the HF6-5 is a full monoblock forged wheel. The HFX-5 offers a more accessible price point while still delivering improved strength over conventional casting.
Q: Are TPMS sensors compatible with the HFX-5?
A: Yes. The HFX-5 valve stem hole accommodates standard snap-in and clamp-in TPMS sensors. TPMS sensors are not included and must be sourced separately.
Q: What is the warranty on the HFX-5?
A: Vossen provides a 5-year workmanship warranty plus a lifetime structural warranty on all HFX-5 wheels.
Q: Is the HFX-5 suitable for lifted trucks?
A: Yes. The HFX-5 was designed specifically with lifted and leveled trucks in mind. The deep concave profile fills the fender well on wider-than-stock tire setups common on lifted trucks.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including aluminum oxide, which is known to the State of California to cause cancer. For more information, go to www.p65warnings.ca.gov.
