SKU: WCF100420-RED
Wehrli 2006-2010 Chevrolet Silverado GMC Sierra 2500 3500 HD Duramax LBZ LMM Thermostat Housing Kit - WCFab Red

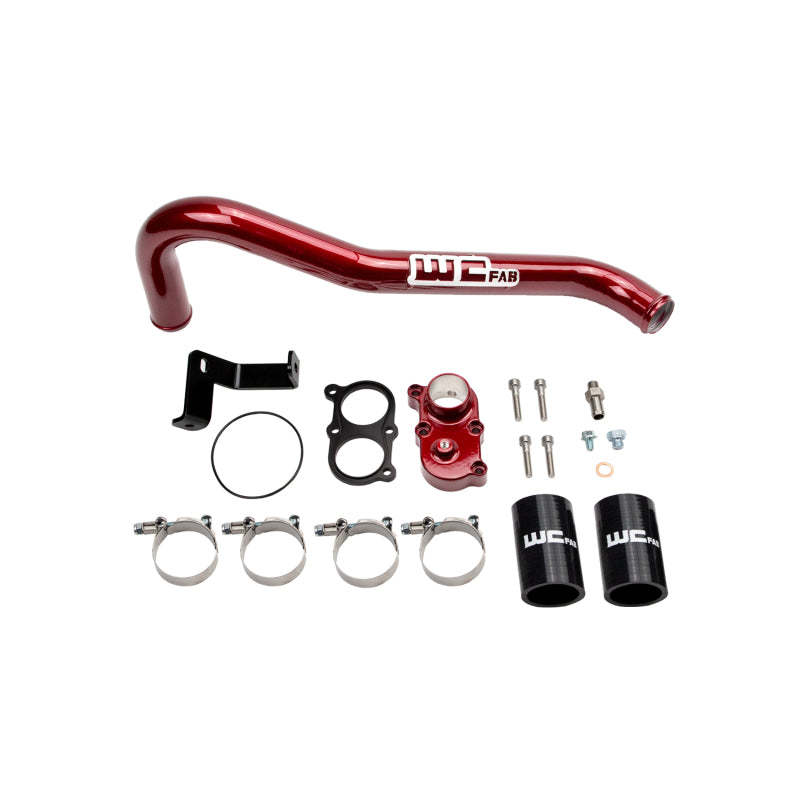

The Wehrli Top Outlet Billet Thermostat Housing and Upper Coolant Pipe Kit fits 2006-2010 Duramax LBZ LMM engines in Chevrolet Silverado and GMC Sierra HD trucks. It replaces the OEM upper radiator hose crossing the driver side valve cover and the coolant return pipe with an upward forward coolant path from the thermostat. This design delivers easier access to driver side fuel system parts room for bigger aftermarket turbos and a cleaner engine bay.
Key Features
- Billet Aluminum Construction: CNC machined for strength and leak-free performance under high boost and heat
- Top Outlet Routing: Directs coolant upward and forward to eliminate cramped hoses over valve covers
- Fuel System Access: Opens space around driver side for simpler maintenance on injectors pumps and lines
- Turbo Clearance: Provides extra room for larger aftermarket turbochargers without relocation hassles
- Custom Powder Coat Finish: WCFab Red coating resists corrosion enhances engine bay style available for single CP3 setups P/N WCF100420
Product Notes
- Replaces GM part numbers 19330105 15792824 25833204 97361881
- Twin CP3 option available P/N WCF100424
- Retains OEM thermostat for straightforward coolant flow
Installation Notes
- Professional installation recommended.
- Bolts directly to factory locations no cutting or drilling required
- Includes all necessary O-rings gaskets and hardware for secure fit
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006 | Chevrolet | Silverado 2500 HD | LS |
| 2006-2010 | Chevrolet | Silverado 2500 HD | LT |
| 2007-2010 | Chevrolet | Silverado 2500 HD | LTZ |
| 2006-2010 | Chevrolet | Silverado 2500 HD | WT |
| 2007 | Chevrolet | Silverado 2500 HD Classic | LS |
| 2007 | Chevrolet | Silverado 2500 HD Classic | LT |
| 2007-2010 | GMC | Sierra 2500 HD | WT |
| 2007-2010 | GMC | Sierra 3500 HD | SLE |
| 2007-2010 | GMC | Sierra 3500 HD | SLT |
| 2007-2010 | GMC | Sierra 3500 HD | WT |
| 2007 | Chevrolet | Silverado 2500 HD Classic | WT |
| 2006 | Chevrolet | Silverado 3500 | LS |
| 2006 | Chevrolet | Silverado 3500 | LT |
| 2006 | Chevrolet | Silverado 3500 | WT |
| 2007 | Chevrolet | Silverado 3500 Classic | LS |
| 2007 | Chevrolet | Silverado 3500 Classic | LT |
| 2007 | Chevrolet | Silverado 3500 Classic | WT |
| 2007-2010 | Chevrolet | Silverado 3500 HD | LT |
| 2007-2010 | Chevrolet | Silverado 3500 HD | LTZ |
| 2007-2010 | Chevrolet | Silverado 3500 HD | WT |
| 2007-2010 | GMC | Sierra 2500 HD | SLE |
| 2007-2010 | GMC | Sierra 2500 HD | SLT |
Why Choose Wehrli?
- Leaders in Duramax performance parts with billet designs built for racing and daily drivers
- Every component CNC machined in-house for exact fit and flow
- Trusted by diesel builders for reliability in high-horsepower applications
Frequently Asked Questions
-
Q: Will this kit fit both LBZ and LMM Duramax engines?
A: Yes it bolts on to all 2006-2010 6.6L Duramax LBZ and LMM without modifications -
Q: What material and finish does it use?
A: Billet 6061-T6 aluminum with durable WCFab Red powder coat for heat and corrosion resistance -
Q: Is special hardware needed for install?
A: No kit includes all O-rings fittings and bolts reuses OEM thermostat installs in under 1 hour with basic tools
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Secure foam-lined box 12 x 10 x 6 inches
- Weight: 4.5 lbs
