SKU: WCF205-140

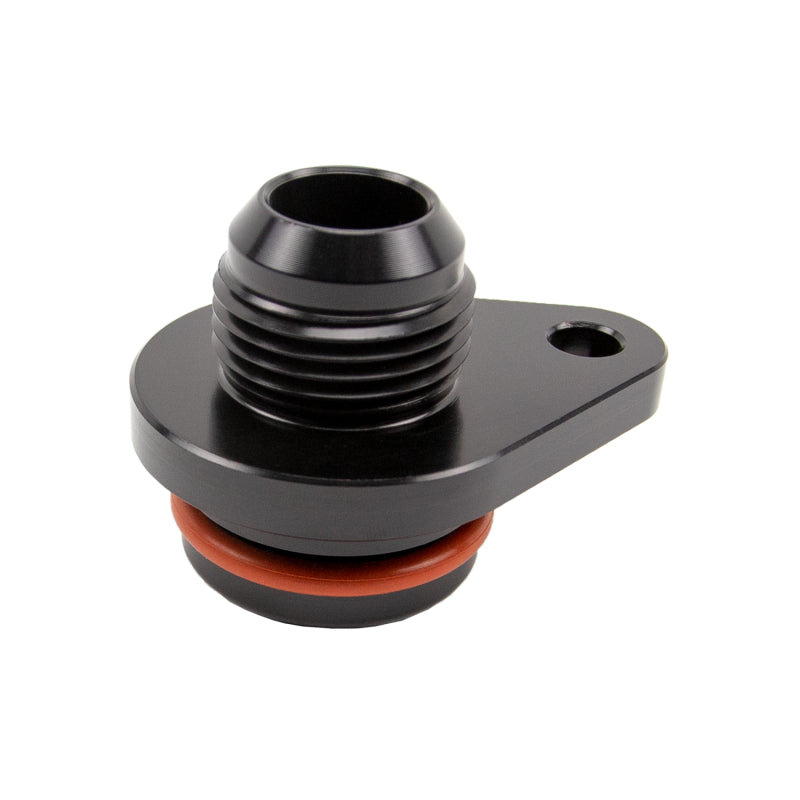

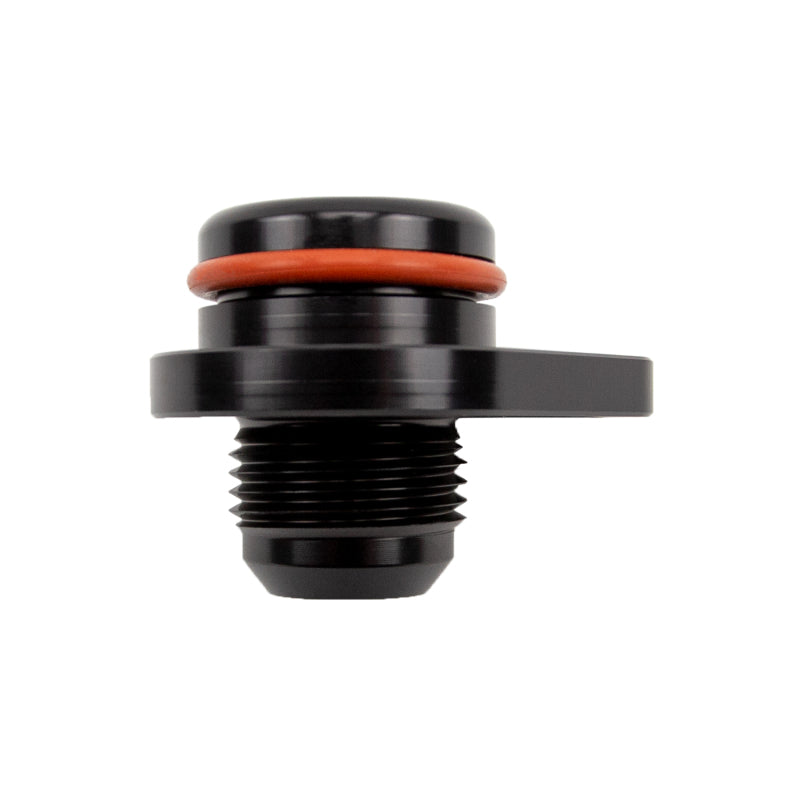

Wehrli 6.7 Cummins Coolant Fitting - 12 JIC for 2007.5-2024 Ram 2500/3500/4500/5500
This Wehrli Custom Fabrication coolant fitting adapts the factory coolant port behind the water pump on 6.7L Cummins engines. It fits 2007.5-2024 Ram heavy duty trucks with the 6.7L diesel. The design delivers a leak-free connection for aftermarket coolant systems and reservoirs while handling high pressures and temperatures.
Key Features
- Thick Flange Design: Built with reinforced flange for strength under extreme coolant pressures in performance diesel applications
- #12 JIC Male Thread: Industry standard thread connects directly to AN coolant lines and fittings without adapters
- Press Fit Connection: Slides securely into the block port for fast installation without special tools or threads
- High Temp O-Ring Seal: Viton O-ring resists 400+ degree F temperatures and maintains seal integrity over time
- Mounting Bolt Tab: Integrated tab with 10mm hole secures fitting to block preventing movement and leaks
Product Notes
- Direct replacement for factory port adapter on 6.7L Cummins block
- Clean port thoroughly before installation for best seal
- Packaged in protective bubble wrap inside 6x4x2 inch box
Installation Notes
- Professional installation recommended.
- Remove water pump pulley or accessories for port access on some models
- Press fit into port then secure tab with M6 bolt included
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007.5-2009 | Dodge | 2500 Pickup | 6.7L Cummins |
| 2007.5-2009 | Dodge | 3500 Pickup | 6.7L Cummins |
| 2010-2024 | Ram | 2500 | 6.7L Cummins |
| 2010-2024 | Ram | 3500 Pickup | 6.7L Cummins |
| 2010-2024 | Ram | 3500 Cab Chassis | 6.7L Cummins |
| 2013-2024 | Ram | 4500/5500 | 6.7L Cummins |
Why Choose Wehrli?
- Leading name in Cummins performance parts with decades of diesel expertise
- CNC machined from 6061-T6 aluminum for precision fit and corrosion resistance
- Engineered and made in USA for reliability in high horsepower builds
Frequently Asked Questions
- Q: Will this fit 2019-2024 Ram 6.7L Cummins trucks?
- A: Yes it fits all 2007.5-2024 6.7L Cummins engines including 5th and 6th gen Rams with the coolant port behind the water pump
- Q: What material is the fitting made from?
- A: Machined from billet 6061-T6 aluminum with black anodized finish for durability and heat dissipation
- Q: Is any special sealant required during install?
- A: No sealant needed on press fit or O-ring use thread tape on JIC end if connecting to reservoir lines
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: 6 x 4 x 2 inch box with foam inserts
- Weight: 0.3 lbs
