SKU: WS8-2-KA-CER-BLA | UPC: 653863203974

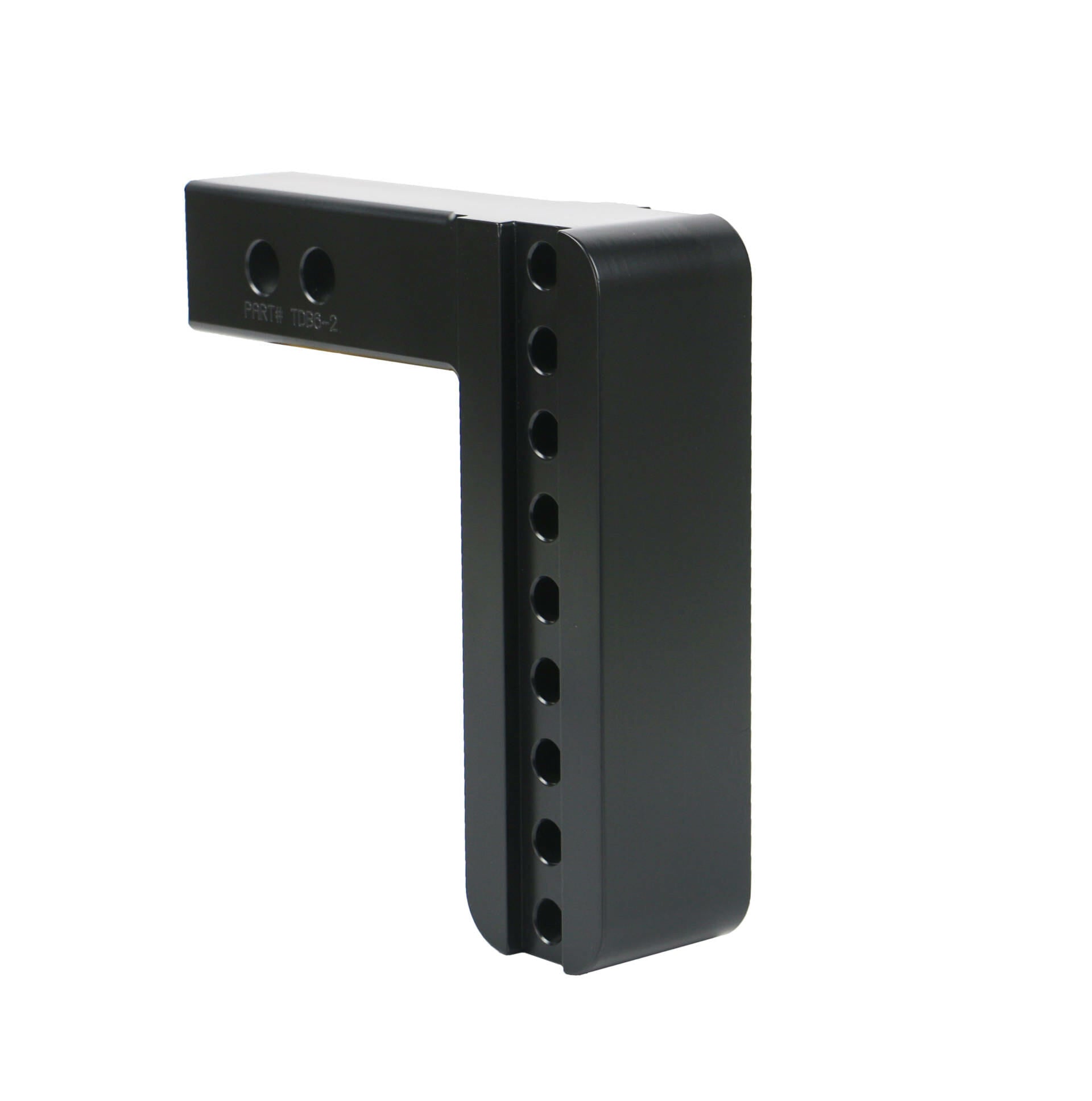

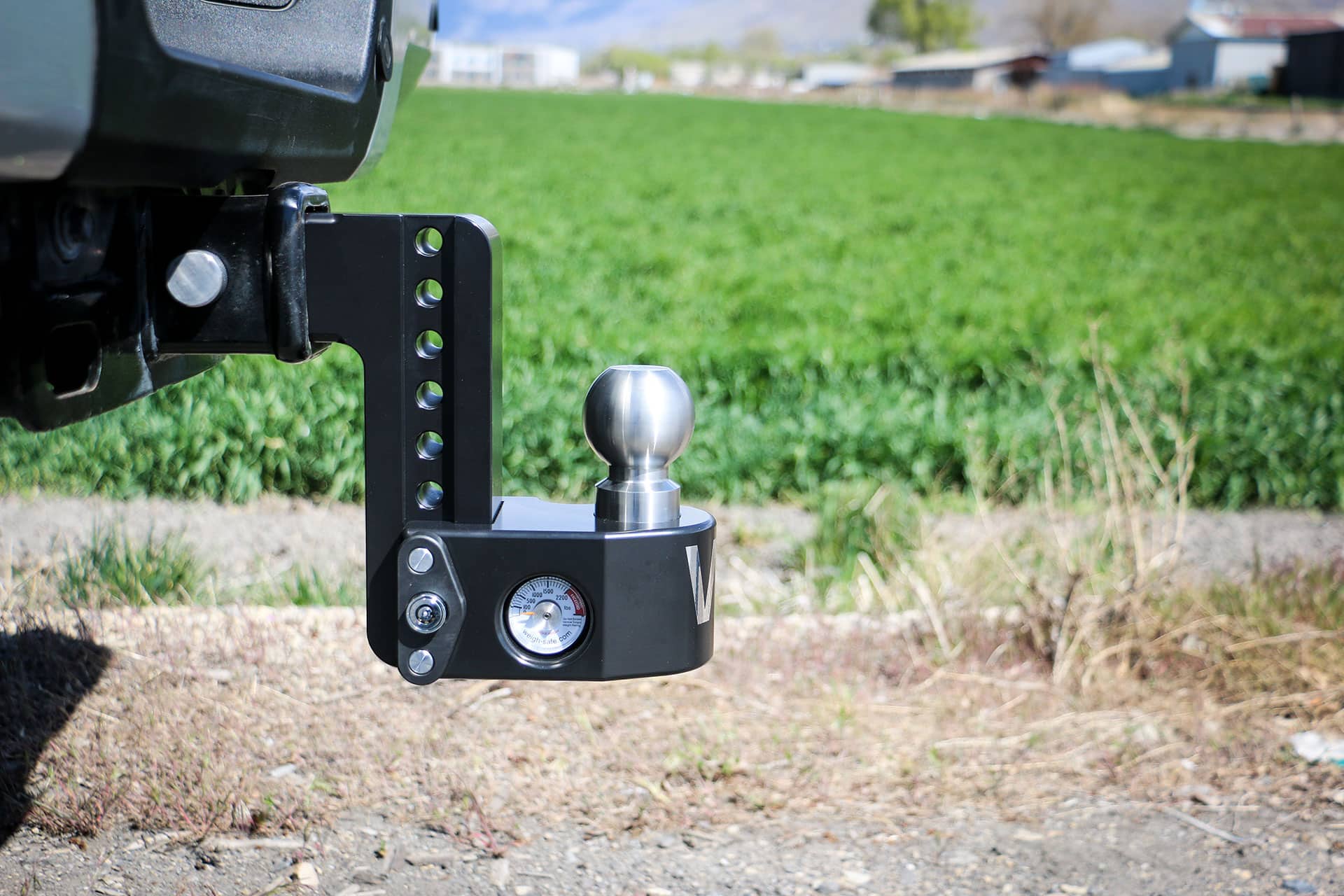

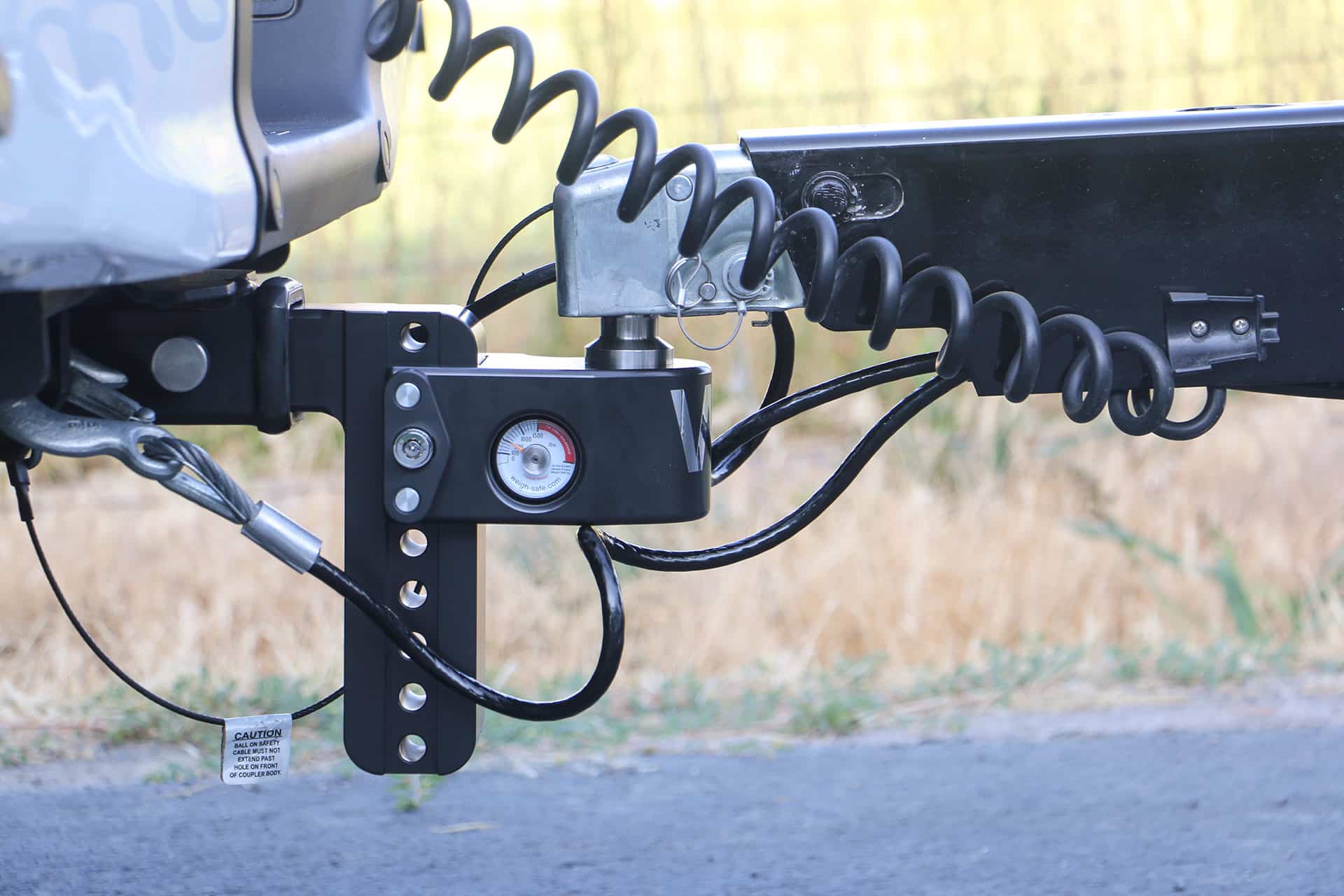

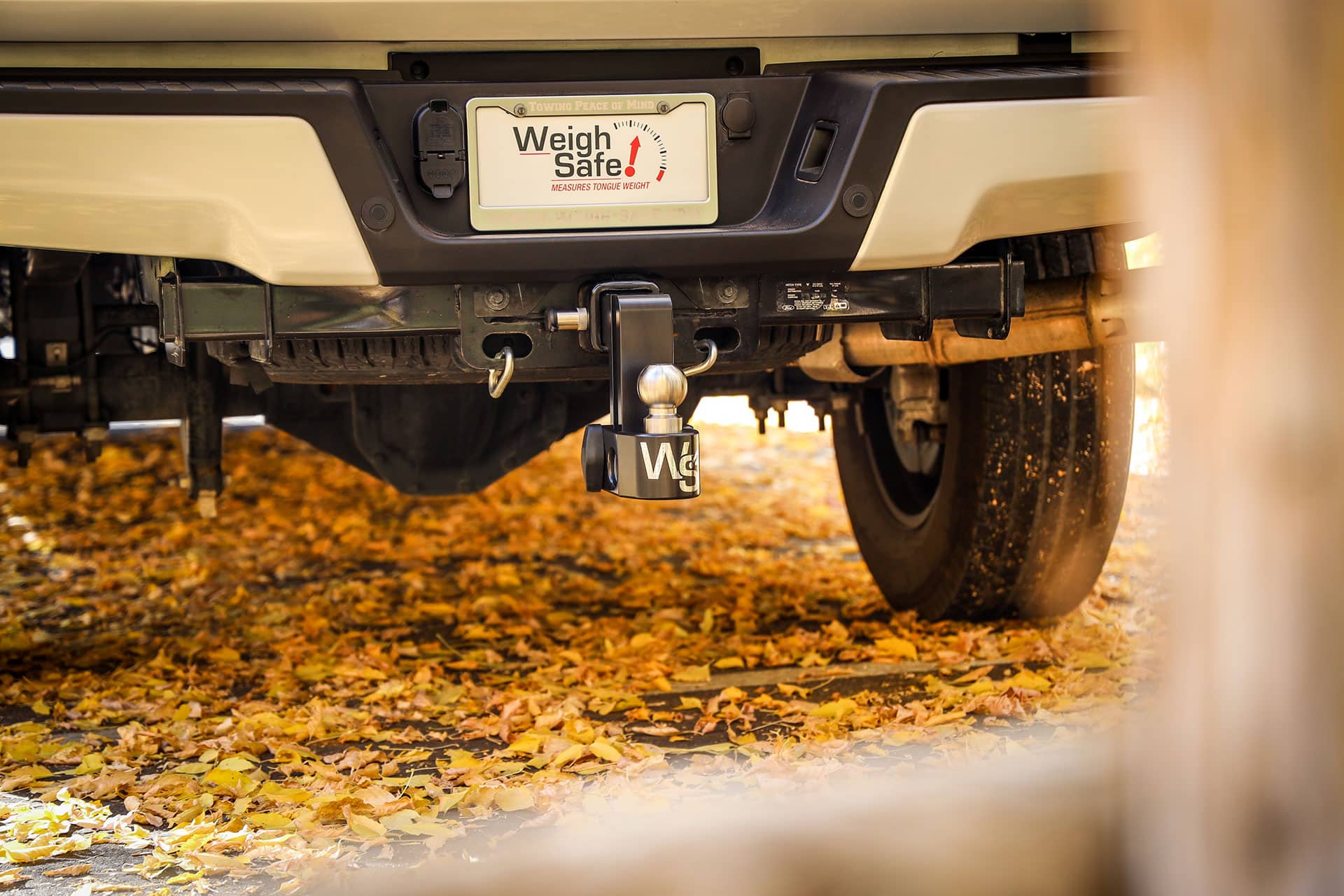

Weigh Safe 8in Drop Hitch w/Built-in Scale & 2in Shank w/WS05 - Black Cerakote - Universal 2" Receiver Fit
Equip your truck or SUV with the Weigh Safe 8-inch drop hitch featuring a built-in scale and 2-inch shank in black Cerakote finish. Designed for any vehicle with a standard 2-inch Class III/IV hitch receiver, this hitch measures tongue weight on the spot for safer towing. Crafted from aircraft-grade aluminum, it handles up to 12,500 lbs gross trailer weight with the 2-5/16" ball while providing easy adjustments and secure locking.
Key Features
- Integrated Tongue Weight Scale: Built-in gauge reads weight instantly without scales or jacks, ensuring loads stay between 10-15% of trailer GVWR for stability.
- Aircraft-Grade Aluminum Construction: Black Cerakote coating resists corrosion and wear, rated for 12,500 lbs max GTW (2-5/16" ball) and 1,500 lbs max tongue weight on 2" shank.

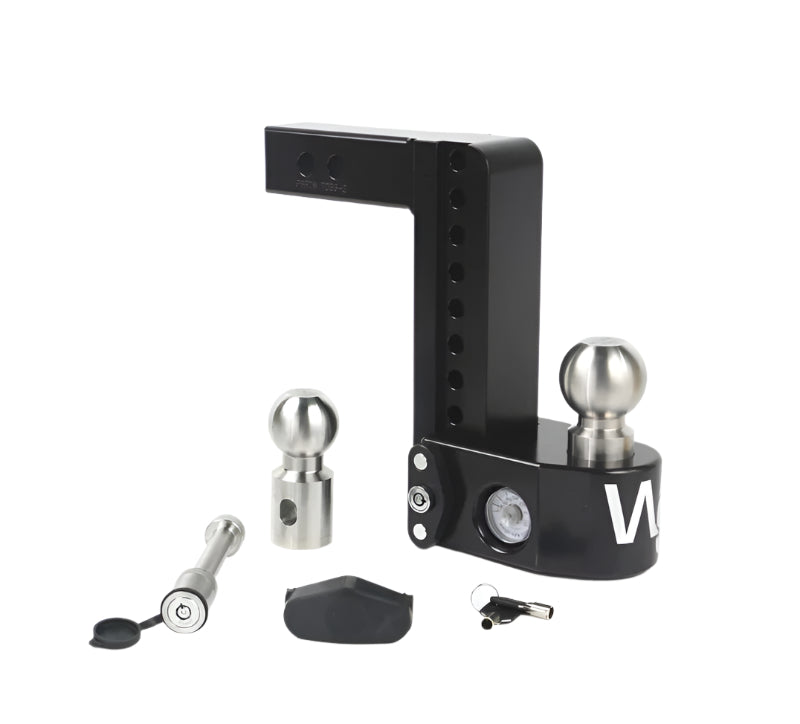

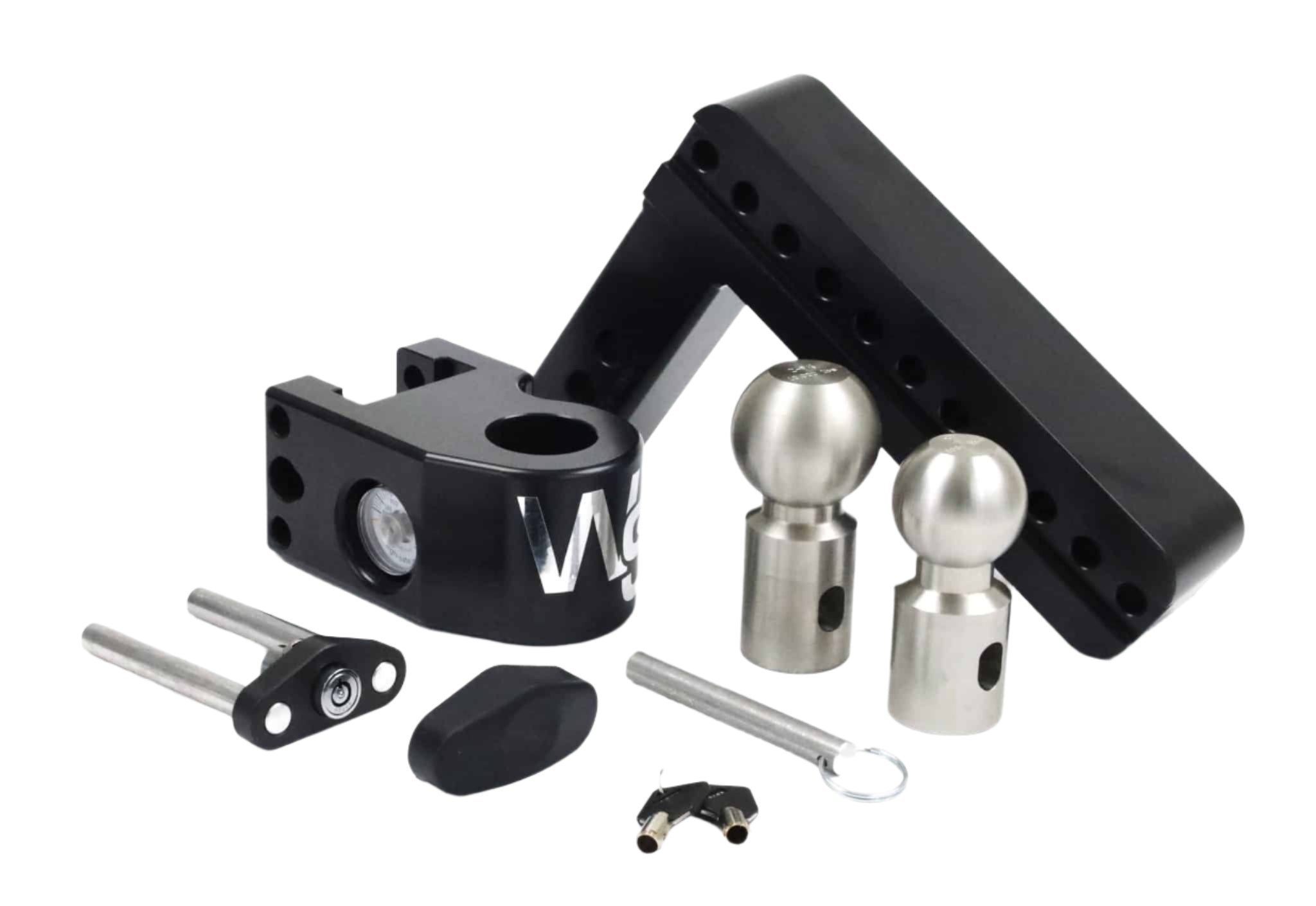

- Dual Stainless Steel Tow Balls Included: 2" and 2-5/16" balls swap in seconds via pin release. 1-7/8" ball available separately.

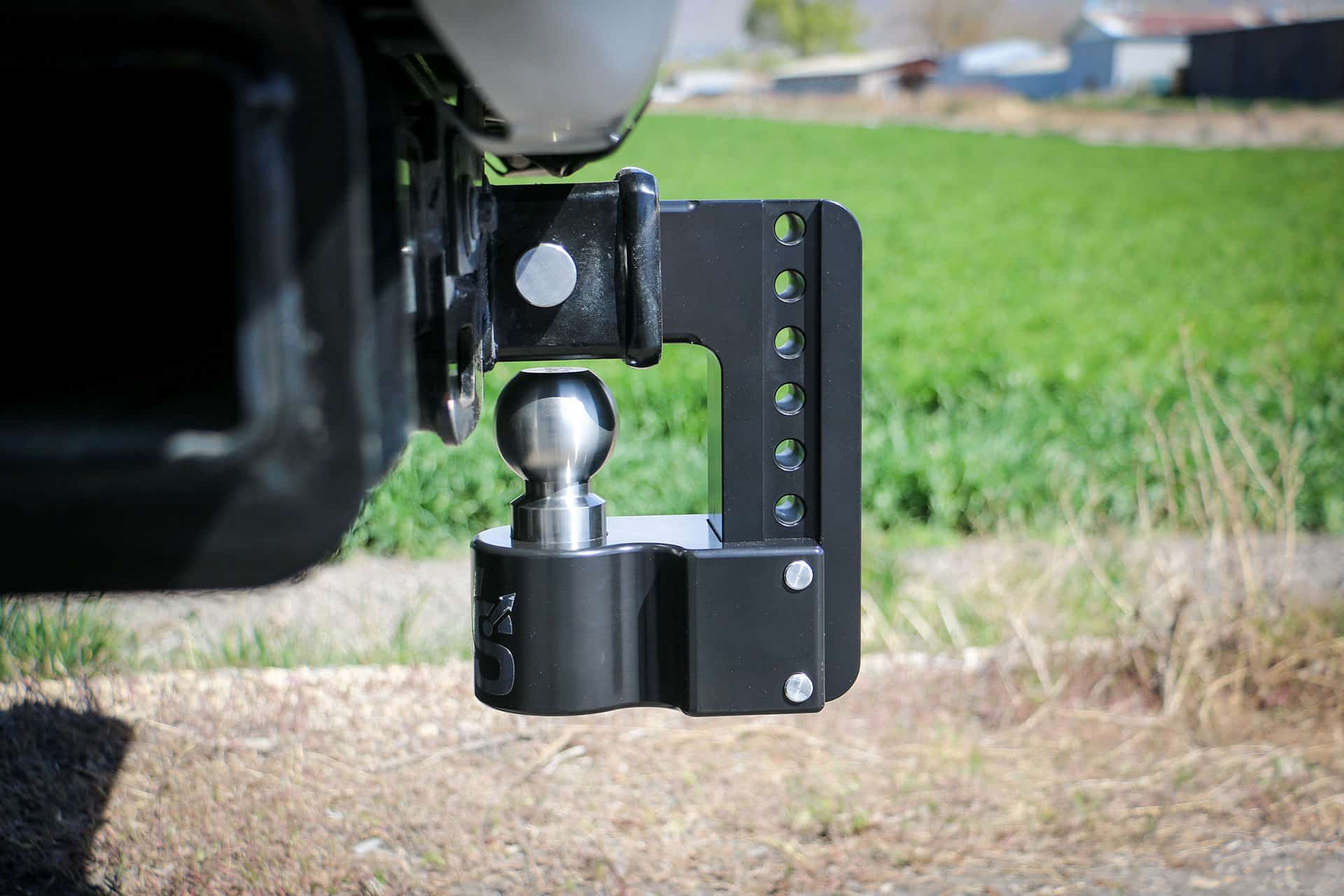

- Adjustable Drop/Rise Design: 8" drop adjusts in 1" increments, flips for rise (9" max), and stows vertically to protect shins (2" shank compatible).
- Security and Certification: Dual-pin lock assembly included, V5 and J684 certified, works with keyed-alike locks and storage case.
Product Notes
- Surface rust on stainless tow balls from water/salt exposure cleans off with Scotch-Brite pad and does not impact performance.
- Compatible with clamshell covers. 3" shanks not stowable but this 2" model stores easily.
- Total height adds 3" to drop (11" from receiver top to base). hitch pin hole is 5/8" diameter.
Installation Notes
- Professional installation recommended.
- Insert shank into 2" receiver, secure with 5/8" hitch pin (not included), and verify scale calibration before use.
- Compatible with standard Class III/IV receivers. no drilling or modifications required.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Vehicles | with 2" Class III/IV Receiver |
Why Choose Weigh Safe?
- Leaders in innovative towing scales trusted by thousands for accurate measurements.
- Forged from premium aircraft aluminum with Cerakote for lasting durability on every haul.
- Engineered and certified to V5/J684 standards for reliable performance under load.
Frequently Asked Questions
-
Q: Does this hitch fit my 2-inch receiver truck?
A: Yes, it slides into any standard 2-inch Class III/IV receiver on trucks, SUVs, or vans. confirm receiver size before purchase. -
Q: How accurate is the built-in scale and what finish protects it?
A: Scale accurate to within 4% full scale. black Cerakote finish enhances corrosion resistance beyond raw aluminum. -
Q: What warranty covers this hitch?
A: Lifetime warranty on structural defects. register on Weigh-Safe site for full coverage details.
Shipping & Handling
- Method: Ground shipping via UPS/FedEx
- Availability: In stock - ships same or next business day
- Packaging: Secure box protects scale and finish
- Weight: 19 lbs
