SKU: DB6-2 | UPC: 653863201796

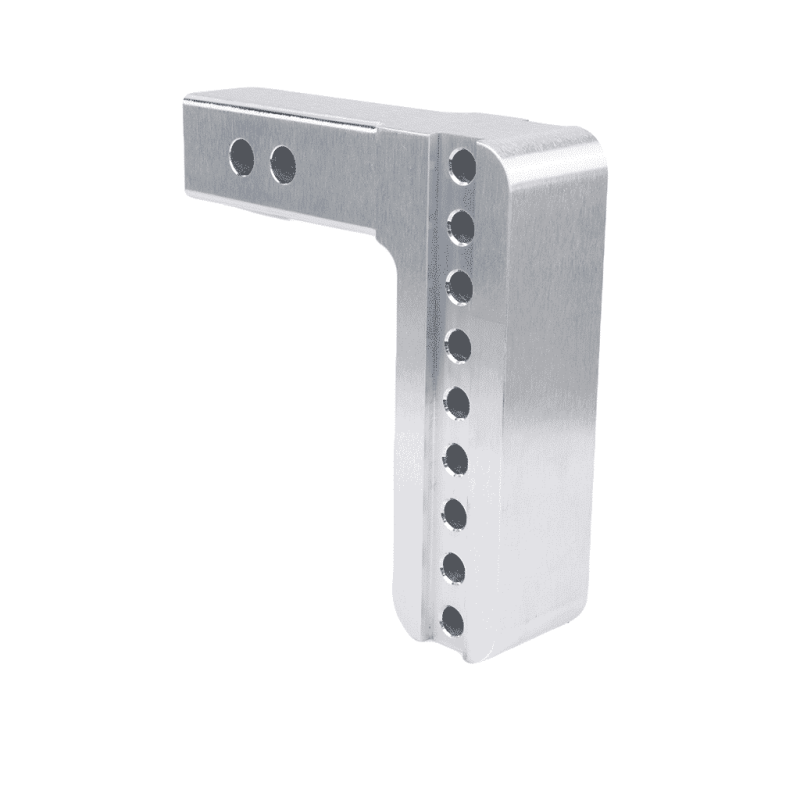

Weigh Safe Drawbar Only 6in Drop & 2in Shank (12.5K GTWR) - Aluminum - Universal 2" Hitch Receiver
This Weigh Safe DB6-2 drawbar delivers 6-inch drop and 2-inch shank for trailers up to 12,500 lb GTWR and 1,250 lb tongue weight. The integrated scale provides instant readings up to 2,000 lb without batteries. It installs in any vehicle with a standard 2-inch Class III or higher receiver hitch for accurate towing setup on trucks and SUVs.
Key Features
- Integrated Hydraulic Scale: Measures tongue weight from 0-2,000 lb accurate to +/- 30 lb using fluid pressure no batteries or calibration required for reliable checks every time.
- 6061-T6 Billet Aluminum Build: Weighs only 7.1 lb for easy handling while supporting 12,500 lb GTWR and 1,250 lb TW with high strength-to-weight ratio.
- 6in Drop / 4.5in Rise: Levels trailer height precisely with 10.5in shank insertion length for stable towing alignment.
- 2in Square Shank: Slides into standard 2in x 2in hitch receivers on most full-size trucks and SUVs rated Class III/IV/V.
- Black Anodized Finish: Protects against corrosion road salt and weather for long-lasting performance in all conditions.
Product Notes
- Confirm vehicle receiver GTW/TW rating meets or exceeds 12,500 lb / 1,250 lb before use.
- Zero the scale before each use on level ground for best accuracy.
- Box dimensions 13.75 x 6.5 x 4in shipping weight 8 lb.
Installation Notes
- Professional installation recommended.
- Drop into 2in x 2in receiver tube no drilling or modifications needed.
- Requires standard 5/8in hitch pin and clip not included use locking pin for security.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All w/ 2in Receiver Class III+ | N/A |
Why Choose Weigh Safe?
- Patented scale technology used by professionals for precise towing weights.
- Crafted in USA from aerospace-grade materials for daily heavy-duty reliability.
- Proven engineering withstands real-world towing demands season after season.
Frequently Asked Questions
-
Q: Will this fit my truck's 2in hitch receiver?
A: Yes it fits any standard 2in x 2in square receiver tube on Class III/IV/V hitches found on most trucks SUVs and vans rated for 12,500 lb GTW. -
Q: What material is the drawbar made from?
A: Constructed from 6061-T6 billet aluminum with black anodized coating for lightweight strength and rust resistance. -
Q: What is the warranty and scale details?
A: Lifetime warranty on scale and structure hydraulic scale reads 0-2,000 lb accurate to +/- 30 lb no maintenance needed.
Shipping & Handling
- Method: Ground
- Availability: In stock - ships same or next business day
- Packaging: Secure box 13.75 x 6.5 x 4in
- Weight: 7.1 lb
