SKU: DB8-2 | UPC: 653863201819

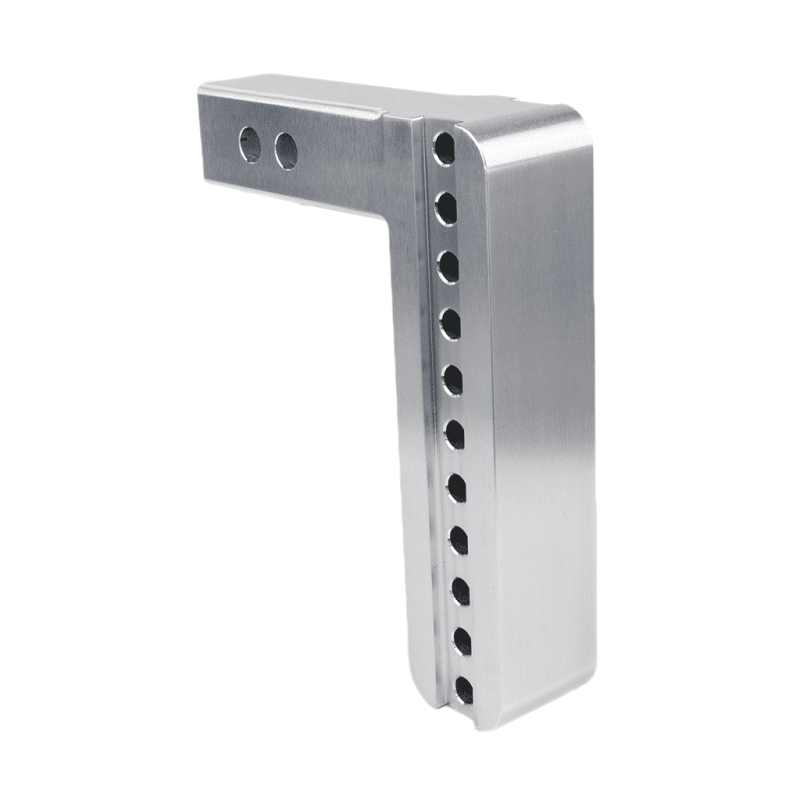

Universal Weigh Safe Drawbar Only 8in Drop & 2in Shank (12.5K GTWR) - Aluminum
The Weigh Safe DB8-2 drawbar provides an 8-inch drop with a 2-inch shank for trailers up to 12,500 lbs GTWR and 1,250 lbs tongue weight. It installs in any standard 2-inch Class III or IV hitch receiver on trucks and SUVs. Built-in scale delivers instant tongue weight readings from 100 to 1,250 lbs for balanced loads and safer towing.
Key Features
- Integrated Scale: Patented analog gauge measures tongue weight accurately within 30 lbs across full 100-1,250 lbs range without batteries or tools
- Aluminum Build: 6061-T6 aircraft-grade construction weighs 17.6 lbs for easy handling while supporting 12,500 lbs GTWR
- 8-Inch Drop: Matches lower trailer couplers for level towing, improving stability and reducing trailer sway on highways
- 2-Inch Shank: Fits securely in 2" x 2" receivers with included anti-wobble pin for rock-solid connection
- Corrosion-Resistant Finish: Black powder coat protects against rust in harsh weather for years of reliable use
Product Notes
- Requires separate 2-inch hitch ball, lock washer, and nut (standard UNC 1-1/8"-12 thread)
- Calibrate scale annually or after heavy impacts for continued accuracy
- Special order item. verify receiver GTWR rating matches or exceeds product capacity
Installation Notes
- Professional installation recommended.
- Grease shank before inserting into receiver tube
- Compatible with factory or aftermarket 2" receivers. use hitch pin with 5/8" diameter hole
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Vehicles w/ 2" Receiver | Class III/IV |
| 1997-2024 | Ford | F-150 | All |
| 2014-2024 | Chevrolet | Silverado 1500 | All |
| 2014-2024 | GMC | Sierra 1500 | All |
| 2015-2024 | Ram | 1500 | All |
| 2007-2024 | Toyota | Tundra | All |
Why Choose Weigh Safe?
- Engineered in USA with focus on towing safety through scale innovation
- Proven durability in real-world heavy towing applications
- Precision manufacturing ensures consistent scale readings and fit
Frequently Asked Questions
-
Q: Will this fit my truck hitch?
A: Yes for any 2-inch square receiver rated 12,500 lbs GTWR or higher. check your owner's manual for receiver specs -
Q: What material and finish?
A: 6061-T6 aluminum alloy with black powder coat finish resists corrosion and withstands road salt/snow -
Q: What warranty coverage?
A: Lifetime warranty covers defects in materials/workmanship. register online for full protection
Shipping & Handling
- Method: UPS Ground
- Availability: Special Order - ships within 2-3 business days
- Packaging: Cardboard box 24in L x 12in W x 8in H
- Weight: 17.6 lbs product, 22 lbs shipping
