More Ground Clearance for Your 2024-2026 Subaru Crosstrek
The Whiteline WLK-SUB001 suspension lift kit raises the 2024-2026 Subaru Crosstrek approximately 1.2 inches at the front and rear. It combines assembled struts and shocks with matched King springs to add clearance while maintaining controlled on road handling.
Key Features
- Approximately 1.2 inch front and rear suspension lift.
- Four Whiteline tuned assembled strut and shock units with matched King springs.
- Front and rear linear springs with a 20 lb/in rate increase.
- Rear load capability of 150 to 200 kg.
- Retains factory droop travel.
- Two camber bolts provide front camber correction.
- The WLK-SUB001 kit is designed for an approximately 8 hour installation.
Fitment
| Vehicle Application | Exclusions |
|---|---|
| 2024-2026 Subaru Crosstrek | Wilderness and Hybrid models |
The WLK-SUB001 is for compatible Crosstrek models only, not Wilderness or Hybrid models.
Specifications
WLK-SUB001 combines the lift components needed for the listed front and rear installation.
| Detail | Value |
|---|---|
| Brand | Whiteline |
| MPN | WLK-SUB001 |
| Lift height | Approximately 1.2 in front and rear |
| Spring rate increase | 20 lb/in front and rear |
| Rear load capability | 150 to 200 kg |
| Wheel alignment | Front and rear alignment required |
| Installation time | Approximately 8 hours |

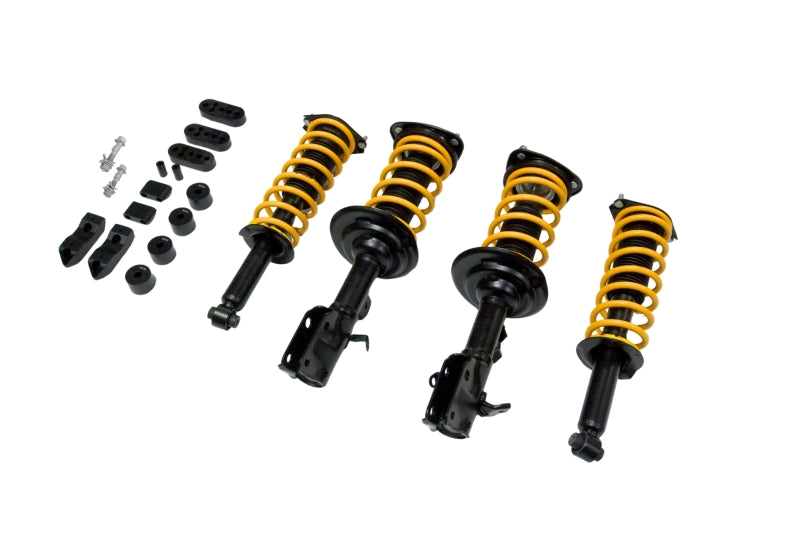

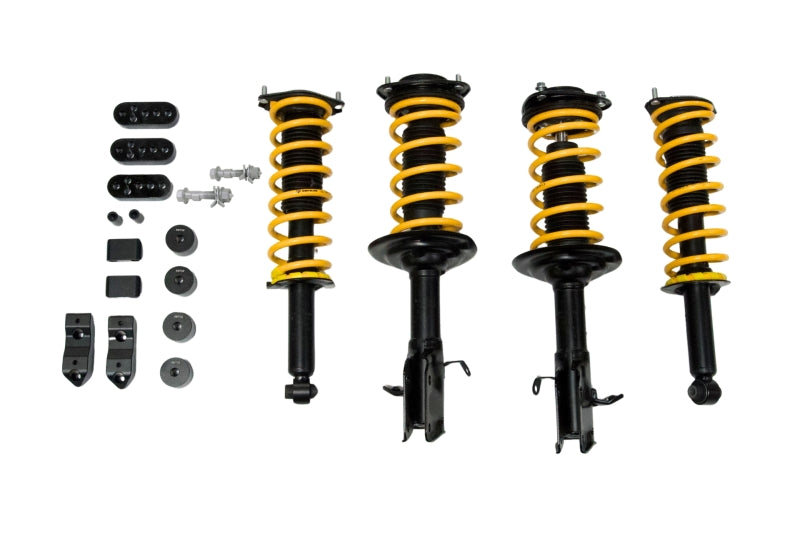

What's Included
- Four assembled strut and shock units.

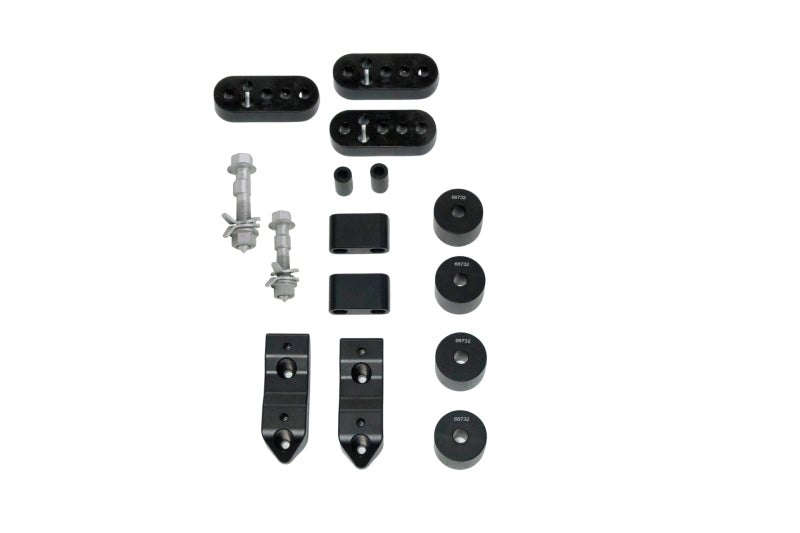

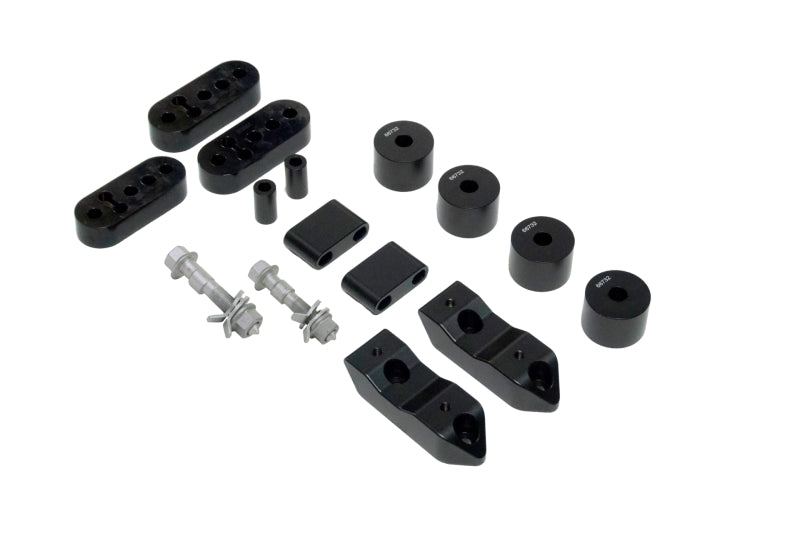

- One rear subframe spacer kit.
- Two camber bolts.
About Whiteline
Whiteline develops suspension and chassis components designed to improve vehicle control and reliability for street and adventure driving.
FAQ
What vehicles does this lift kit fit?It fits 2024-2026 Subaru Crosstrek models, excluding Wilderness and Hybrid models.
How much lift does the kit provide?It provides approximately 1.2 inches of lift at the front and rear.
Are the struts and shocks assembled?Yes. The four strut and shock units are supplied assembled with matched King springs.
What hardware is included?The kit includes a rear subframe spacer kit and two camber bolts.
Is wheel alignment needed after installation?Front and rear wheel alignment is required after the suspension is installed.
How long does installation take?Allow approximately eight hours for installation.
Does the kit retain droop travel?Yes. The kit retains factory droop travel.
Can this kit support added rear load?The rear suspension package is rated for 150 to 200 kg of rear load capability.
Installation Instructions
- Confirm the vehicle is a compatible 2024-2026 Crosstrek and not a Wilderness or Hybrid model.
- Have a qualified installer fit the WLK-SUB001 assembled strut and shock units, rear spacer kit, and camber bolts.
- Perform a front and rear wheel alignment after installation.
