SKU: KTA310 | UPC: 9319924470037

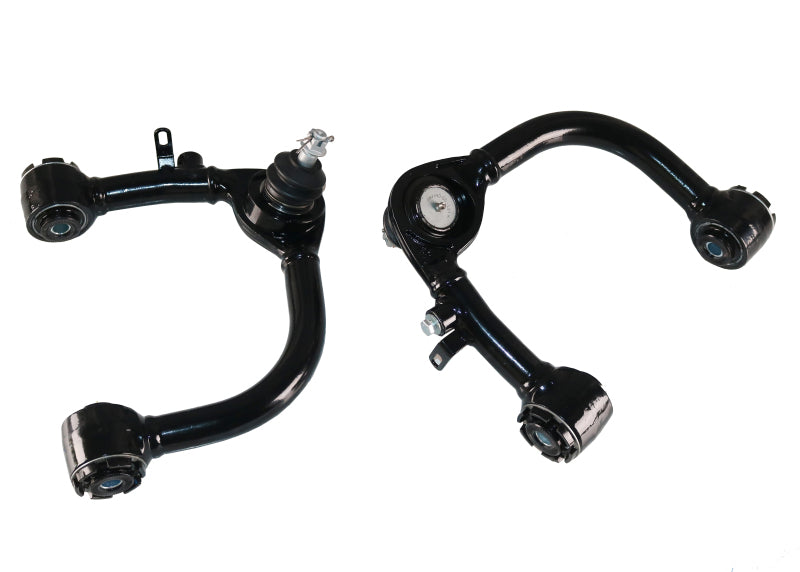

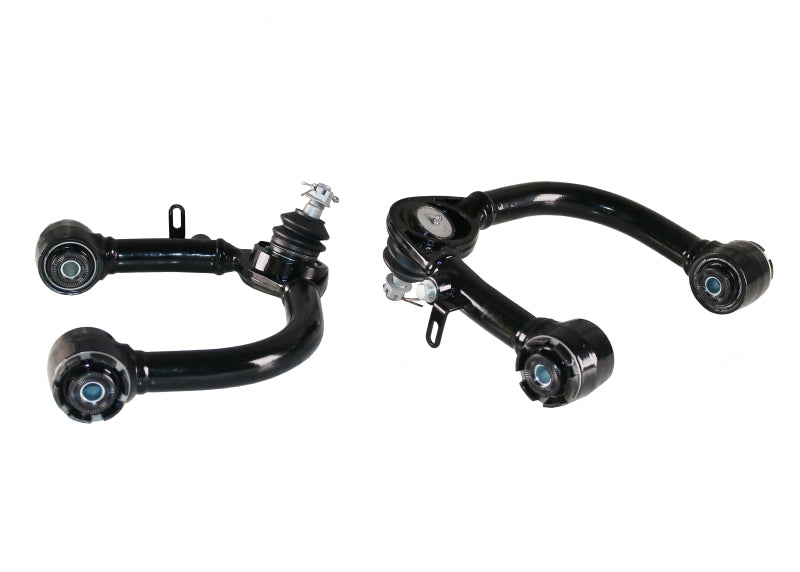

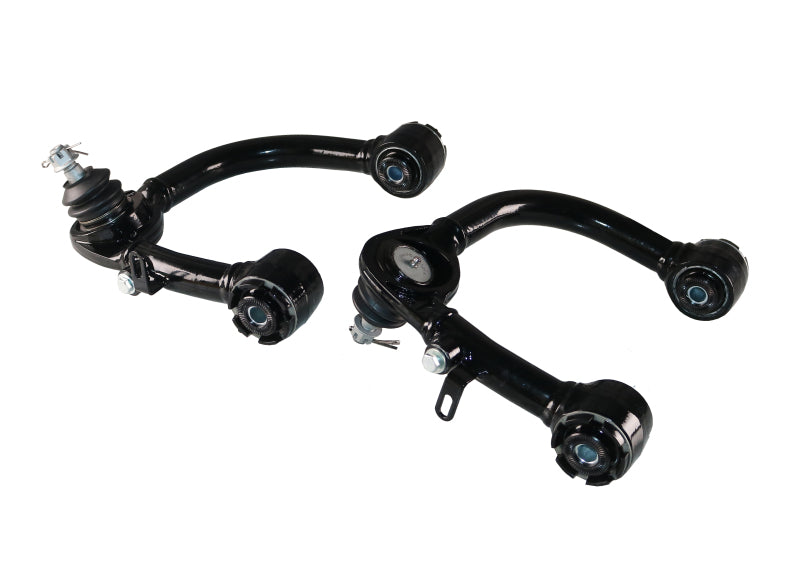

Whiteline 98-07 Lexus LX470 / 98-07 Toyota Land Cruiser Control Arms - Front Upper
Whiteline KTA310 front upper control arms solve alignment problems on lifted 4WD vehicles with independent front suspension. Designed for 1998-2007 Lexus LX470 and Toyota Land Cruiser 100 Series models raised 30-70mm. They deliver +2.5 to +3.5 degrees caster and up to 1.5 degrees negative camber at 50mm lift while improving strut clearance and joint articulation.
Key Features
- Offset Design: Positions ball joint forward for proper wheel alignment on vehicles lifted 30-70mm restoring factory geometry
- Caster Increase: Adds +2.5 to +3.5 degrees caster based on 50mm lift for enhanced steering stability and control
- Camber Correction: Provides up to 1.5 degrees negative camber gain to prevent tire wear and improve cornering grip
- Strut Clearance: Greater space around coilover struts at ride and droop heights avoiding contact issues
- GIIRO Bushings: Maintenance-free technology allows more arm articulation with zero grease required for long-lasting performance
Product Notes
- Sold as complete pair ready to bolt on using factory mounting locations
- Engineered from heavy-duty 1020 MIG welded steel tube for strength
- Ships in protective packaging to prevent damage
Installation Notes
- Professional installation recommended.
- Torque bushings to Whiteline specs during assembly for durability
- Compatible with OEM hardware and most aftermarket coilovers
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1998-2007 | Lexus | LX470 | All (J100) |
| 1998-2007 | Toyota | Land Cruiser | 100 Series (UZJ100R HDJ100R) |
| 1998-2002 | Toyota | Land Cruiser | Base GXL Sahara VX |
| 2003-2007 | Toyota | Land Cruiser | 100 Series All |
Why Choose Whiteline?
- Over 35 years designing performance suspension for 4x4 vehicles worldwide
- GIIRO bushings outperform rubber with synthetic elastomer for quiet precise handling
- Laser-cut precision components ensure direct bolt-on fit without modifications
Frequently Asked Questions
-
Q: Will this fit my 2 inch lifted Land Cruiser?
A: Yes fits lifts from 30mm to 70mm perfect for 50mm or 2 inch setups on 98-07 models -
Q: What material are the arms and bushings?
A: 1020 MIG welded steel arms with proprietary GIIRO grease-free pivot bushings -
Q: What warranty coverage applies?
A: Whiteline lifetime warranty on bushings and 3 year structural warranty when installed correctly
Shipping & Handling
- Method: UPS Ground or FedEx standard delivery
- Availability: In stock - ships same or next business day
- Packaging: Secure cardboard box 25.6 x 9.4 x 7.5 inches
- Weight: 26 lbs gross package weight
