Stop Braking Loads From Moving the Front Arm

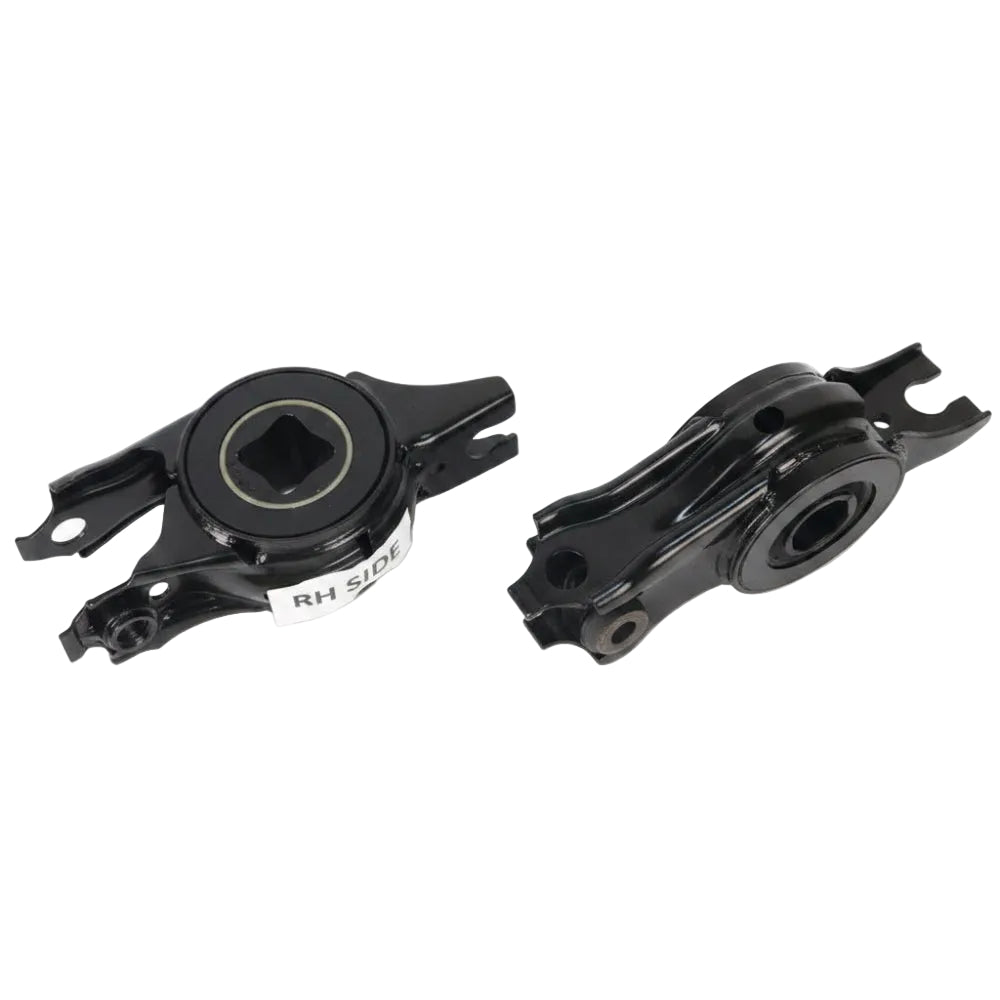

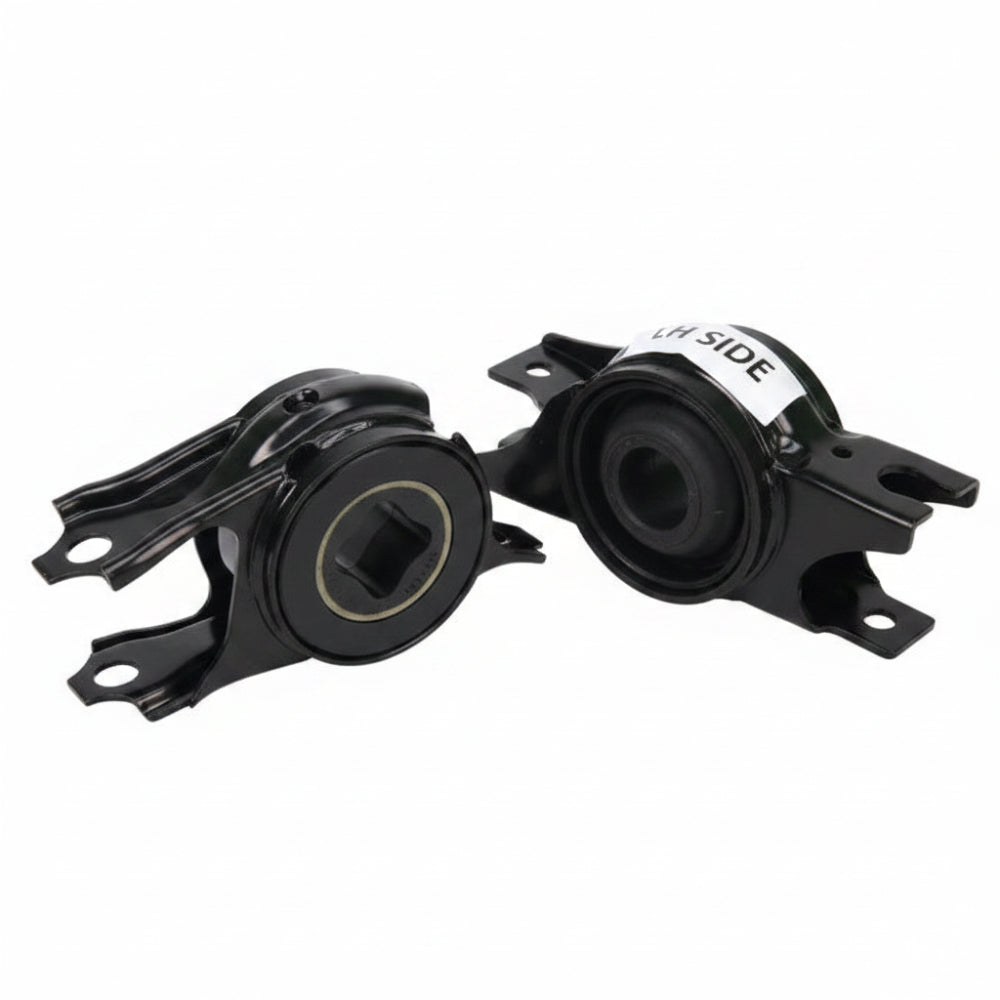

The Whiteline W53620 kit replaces the front lower control arm inner rear bushing on the tenth generation Honda Civic. This position carries most of the fore and aft braking load, so the supplied housings and synthetic elastomer bushings keep the arm located and maintain tyre contact where the worn factory bushing has started to deflect.
Key Features
- Replaces the front lower control arm inner rear bushing, the position that absorbs most braking load
- Complete kit with two bushings and two housings so the whole bushing assembly is renewed
- Synthetic elastomer formulation resistant to oil, grease, ozone and weathering
- Internal grease reservoirs provide continual self lubrication for friction management
- Maximises tyre contact with the road for more consistent cornering and grip
- Restores braking stability that is lost as the original bushing deflects and wears
- Designed to reduce the need for specialised skills, tools and equipment during fitting
- Covered by the Whiteline limited warranty
- Exact manufacturer part number: W53620
Fitment
| Vehicle Application | Position | Restriction |
|---|---|---|
| 2016-2021 Honda Civic FC sedan | Front lower control arm, inner rear | Excludes Type R FK8 |
| 2016-2021 Honda Civic FK hatchback | Front lower control arm, inner rear | Excludes Type R FK8 |
| 2016-2021 Honda Civic Si | Front lower control arm, inner rear | Covered by the same kit |
| 2016-2021 Honda Civic RS | Front lower control arm, inner rear | Covered by the same kit |
The Type R FK8 uses a different front suspension package and is not covered by the W53620 kit. The kit replaces the inner rear bushing position only and does not include the control arm, the inner front bushing, the lower ball joint or mounting fasteners.
Specifications
| Detail | Value |
|---|---|
| Brand | Whiteline |
| Manufacturer part number | W53620 |
| Product type | Control arm bushing kit |
| Position | Front lower control arm, inner rear |
| Vehicle application | 2016-2021 Honda Civic FC and FK |
| Bushing quantity | 2 |
| Housing quantity | 2 |
| Material | Synthetic elastomer |
| Lubrication | Internal grease reservoirs, self lubricating |
| Chemical resistance | Oil, grease, ozone and weathering |
| Barcode | 9319924465750 |
| Warranty | Whiteline limited warranty |

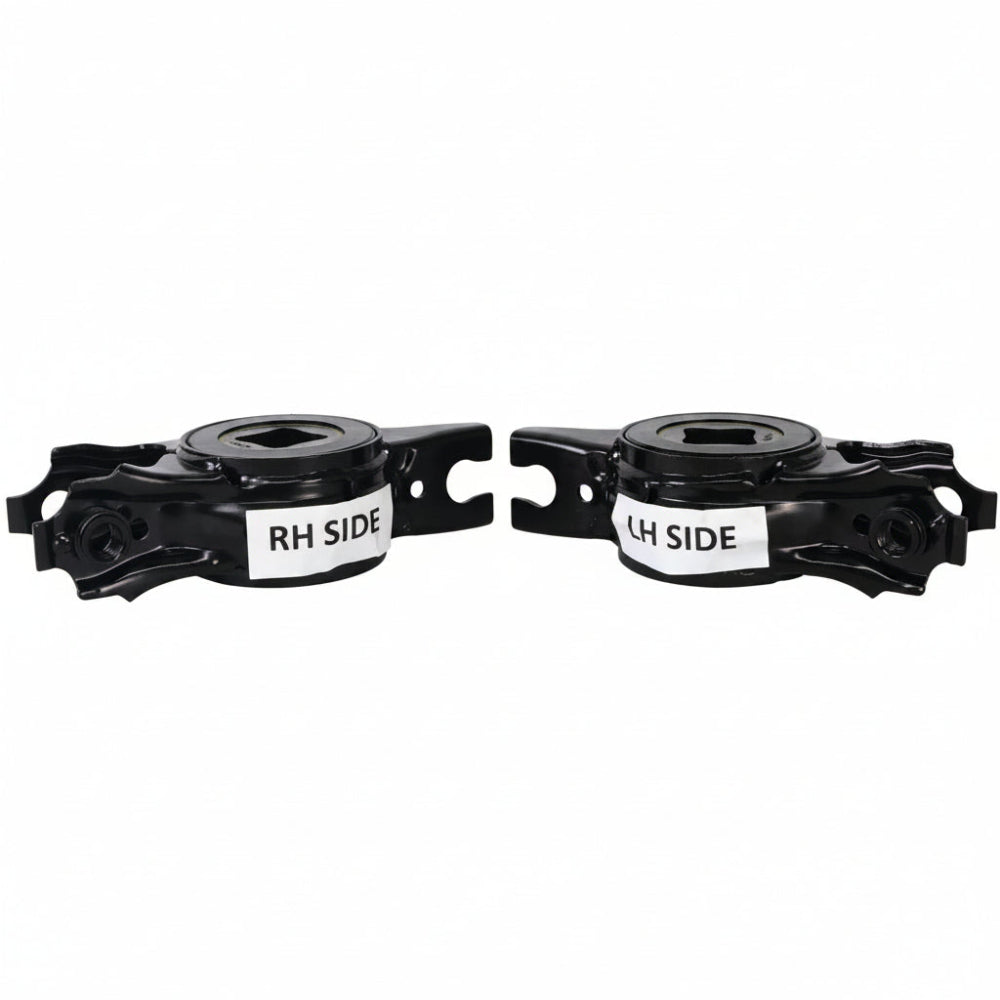

What's Included
- Two Whiteline W53620 synthetic elastomer control arm bushings
- Two bushing housings
- Whiteline assembly grease
About Whiteline
Whiteline develops suspension bushings, sway bars and alignment components with an emphasis on controlling how the chassis moves under load. Its synthetic elastomer bushings use internal grease reservoirs and application specific housings so the arm stays located without the harshness of a solid mount.
Related Parts
- Whiteline 2016+ Honda Civic Front Anti-Lift Kit
- Whiteline 2015+ Honda Civic X Lower Ball Joint Front Camber Adjuster Kit
- Whiteline Front Sway Bar Link Assembly 2016+ Honda Civic FC and FK
FAQ
What is the W53620?It is the Whiteline front lower control arm inner rear bushing kit for the tenth generation Honda Civic, supplied with two bushings and two housings.
Which Civic models does it fit?It fits the 2016 to 2021 Civic FC sedan and FK hatchback, including Si and RS, but the Type R FK8 is excluded.
Why does this bushing position matter?The inner rear bushing takes most of the fore and aft load under braking, so wear here reduces braking stability and lets the front arm move under load.
What comes in the kit?Two synthetic elastomer bushings, two housings and assembly grease are supplied, which covers both front lower control arms.
Do the bushings need regular greasing?No. Internal grease reservoirs hold lubricant inside the bushing for continual self lubrication, so scheduled greasing is not required.
Will the ride become noisy or harsh?The synthetic elastomer is chosen to control movement while still absorbing vibration, so it firms up arm location without the noise of a solid bushing.
Is a press required to fit the kit?The design reduces the tools and skill needed compared with pressing a bonded bushing, but the control arm still has to be removed and the bushing bore cleaned before assembly.
Is a wheel alignment needed afterwards?Yes. The front lower control arm is disturbed during the job, so a front alignment check after installation is recommended.
What warranty applies?The kit is covered by the Whiteline limited warranty. Review the current terms before installation and keep the purchase record.
Installation Instructions
- Park the car on a level surface, apply the parking brake and raise and support the front of the vehicle safely on stands.
- Remove the front road wheels and inspect the lower control arms, the inner rear bushing area and the surrounding fasteners.
- Loosen the inner rear bushing fasteners while the suspension is still supported to avoid unloading the arm suddenly.
- Detach the lower control arm at the inner mounting points and lower it far enough to work on the inner rear bushing position.
- Remove the original inner rear bushing assembly and clean the mounting bore and the arm surfaces of dirt, corrosion and old rubber.
- Apply the supplied Whiteline grease to the bushing bore and to the mating surfaces of the housing.
- Assemble each W53620 bushing into its housing and fit the assembly to the control arm position as the instructions show.
- Repeat the same sequence on the opposite side so both arms are rebuilt before final tightening.
- Reconnect the control arm at its mounting points and start all fasteners by hand.
- Load the suspension back to normal ride height, then torque every fastener to the Honda service specification.
- Refit the wheels, lower the car, road test it and then have the front alignment checked and the fasteners rechecked.
