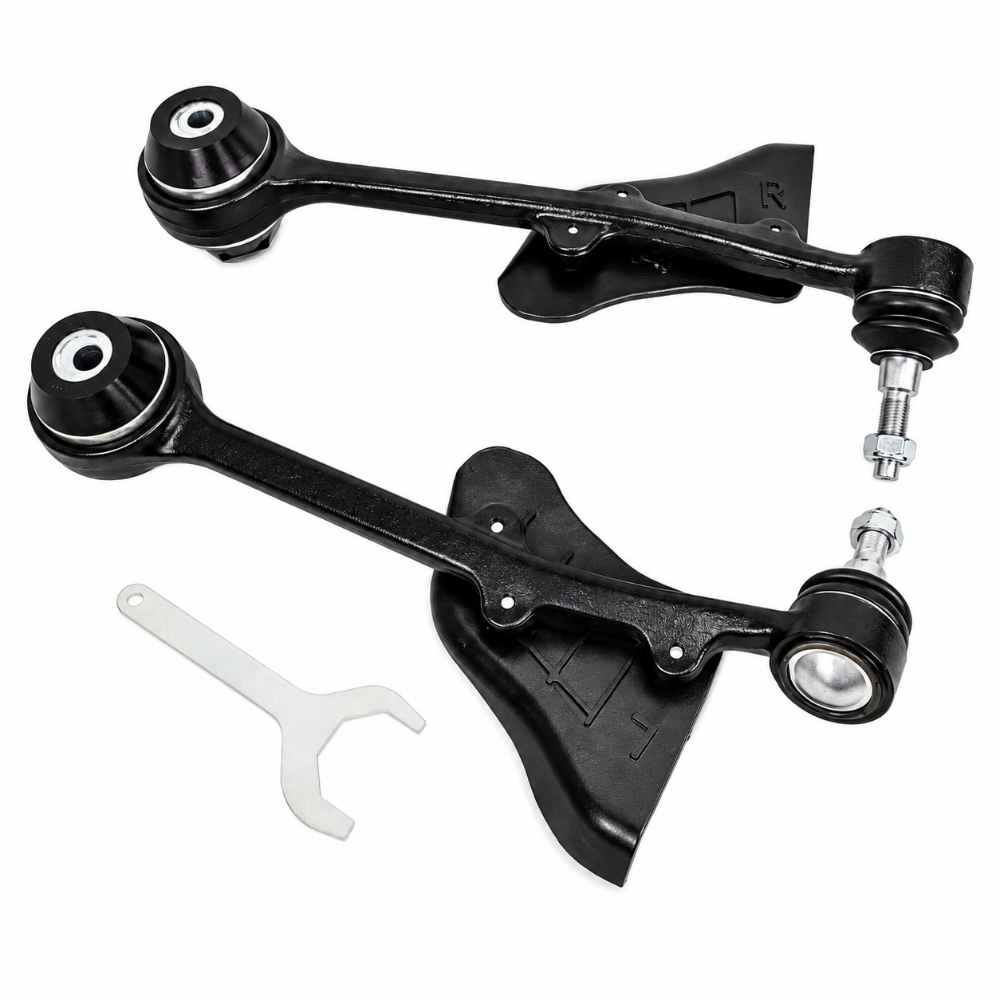

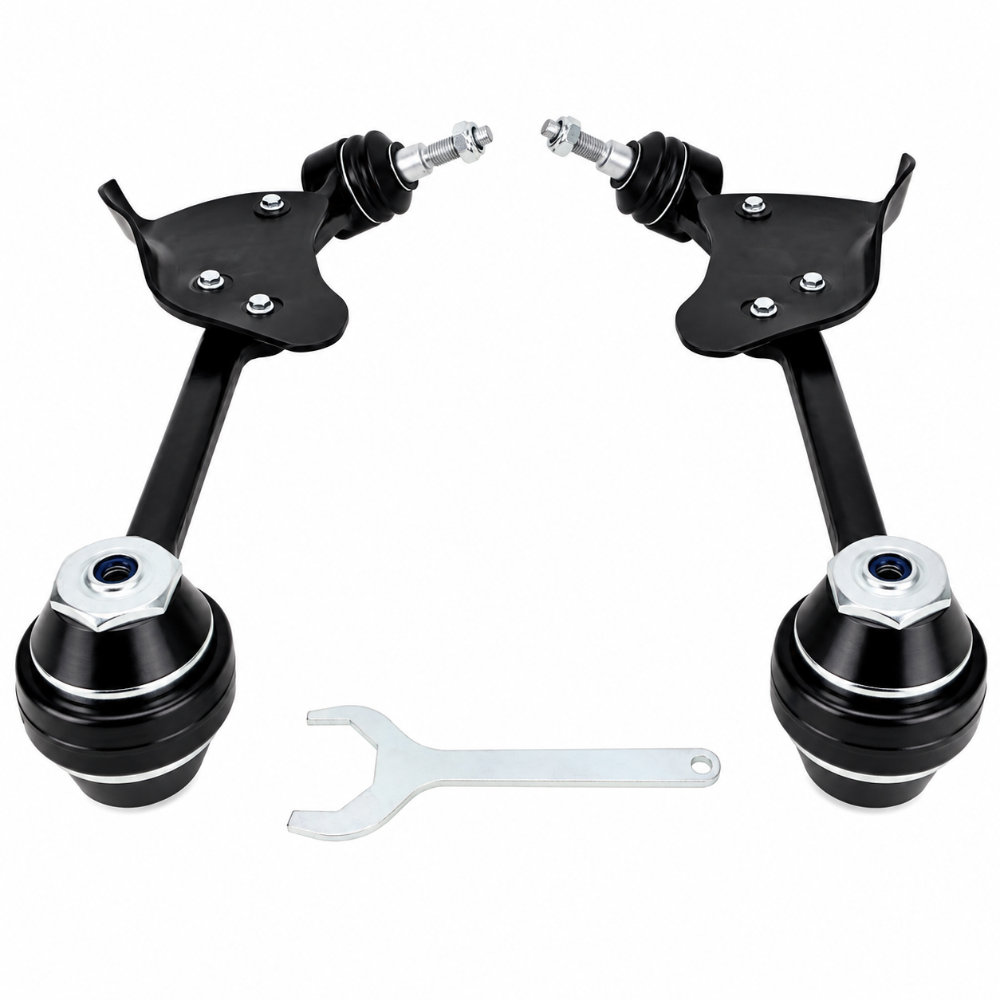

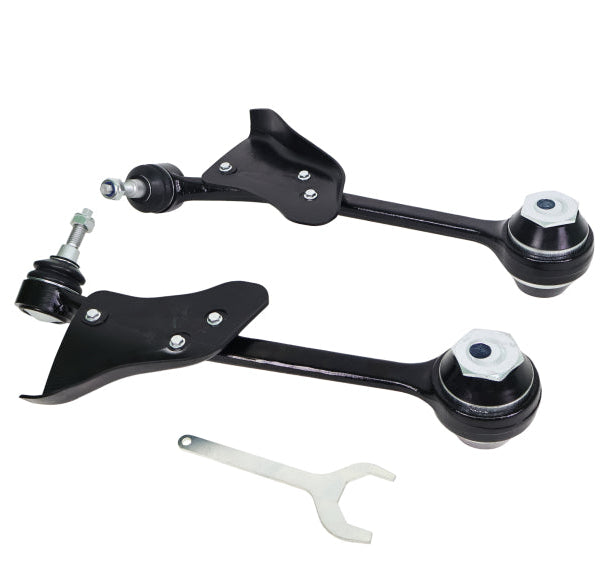

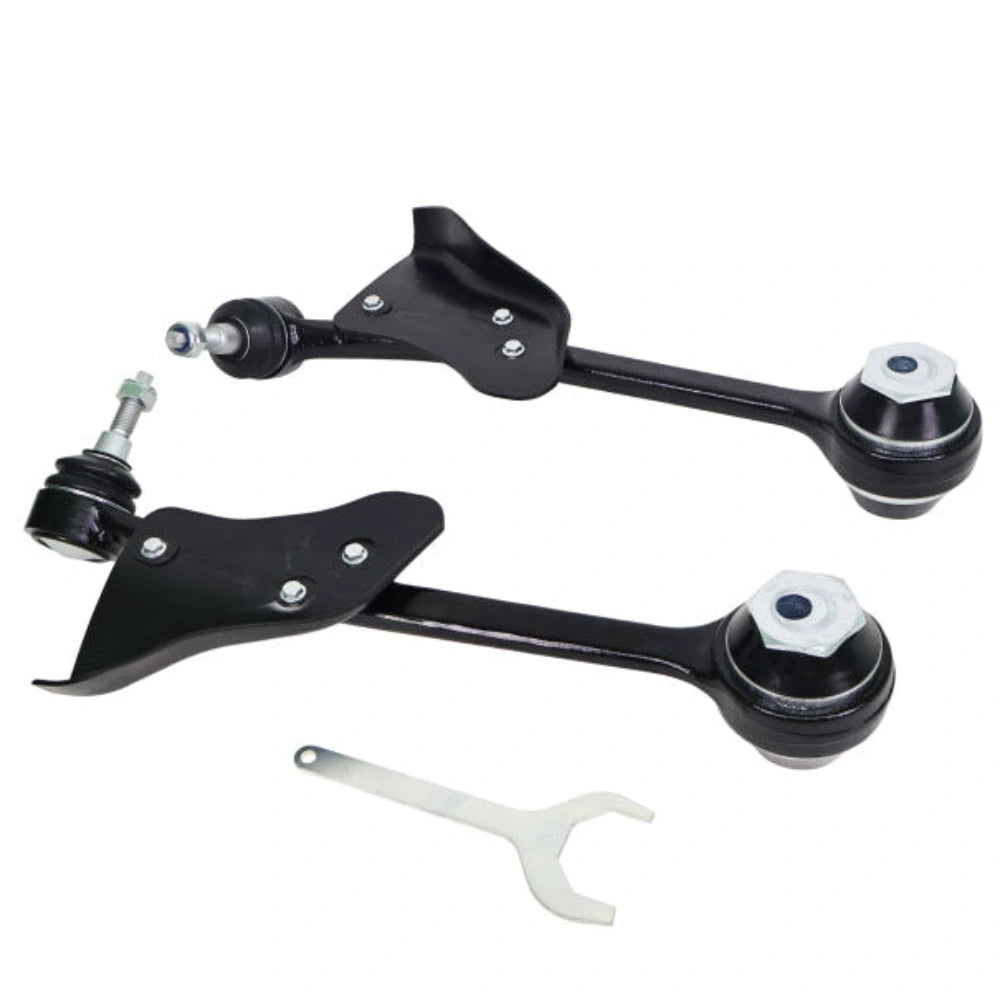

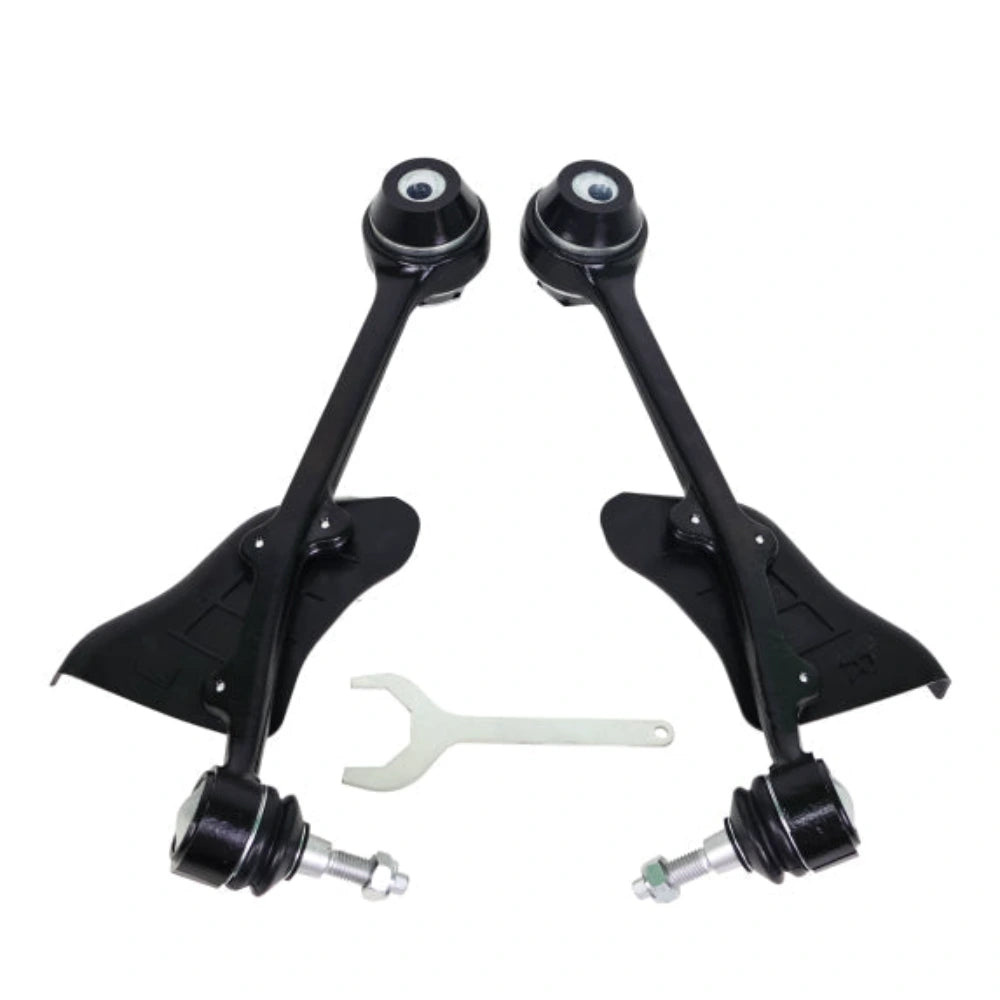

Whiteline 15-23 Ford Mustang S550 Front Tension Link Lower Control Arm

Front Lower Tension Link That Unlocks S550 Mustang Handling Potential from the Ground Up

The Whiteline KTA416 is a front lower tension link control arm designed as a direct factory replacement for the 2015-2023 Ford Mustang S550 platform. Unlike the OEM rubber-bushed tension link, the WHLKTA416 incorporates Whiteline's offset bushing technology, which allows small geometry corrections that improve wheel alignment, reduce understeer, and sharpen turn-in response without requiring custom brackets or major suspension modifications. The KTA416 is constructed from heavy-gauge steel with Whiteline's proprietary polyurethane bushings, providing significantly more compliance resistance than the factory rubber units while maintaining a level of NVH appropriate for dual-purpose street and track driving.

Key Features

• Whiteline KTA416 front lower tension link for 2015-2023 Ford Mustang S550 (FM/FN chassis)
• Offset bushing design allows alignment correction and geometry optimization without aftermarket sub-frame components
• Heavy-gauge steel construction with polyurethane bushings for greater compliance resistance than OEM rubber
• Improves turn-in sharpness, reduces front understeer, and increases front grip under cornering load
• Direct bolt-on replacement for factory front lower tension link, no cutting or welding required
• Compatible with stock ride height and lowered applications
• Designed for daily street driving and track use on Ecoboost, GT, GT350, GT350R, GT500, and Mach 1 trims
• Whiteline limited lifetime warranty

Fitment

Specifications

What's Included

• 1 set (pair) Whiteline KTA416 front lower tension link control arms
• Whiteline polyurethane offset bushings pre-installed
• All mounting hardware for direct bolt-on installation

About Whiteline

Whiteline Performance is a leading manufacturer of suspension bushings, sway bars, and alignment correction components headquartered in Melbourne, Australia with a US distribution center serving the North American market. Whiteline specializes in bolt-on handling upgrades that improve chassis balance and driver response for daily-driven and track-prepared vehicles. The KTA416 represents Whiteline's engineering approach to correcting factory suspension geometry shortfalls on the S550 Mustang platform without the need for coilover-only solutions.

Related Parts on Our Site

• Browse Mustang Suspension Parts

Frequently Asked Questions

The Whiteline KTA416 is a front lower tension link control arm for the 2015-2023 Ford Mustang S550 (FM/FN chassis). It uses offset polyurethane bushings to provide a small but meaningful correction to front wheel alignment geometry, reducing understeer and improving turn-in response. It is a direct bolt-on replacement for the factory front lower tension link and requires no cutting, welding, or additional brackets.

The front lower tension link on the S550 Mustang controls the fore-aft position of the front lower control arm pivot point. Because it uses a rubber bushing from the factory, it deflects under braking and cornering load, causing the wheel to move slightly rearward and creating a small toe-out condition that contributes to the Mustang's characteristic understeer. The Whiteline KTA416 with offset bushings reduces this deflection and introduces a small geometry correction that counters this tendency.

Yes. Because the Whiteline KTA416 incorporates offset bushings that intentionally alter front wheel alignment geometry, a full four-wheel alignment is required after installation. This alignment step is essential to realize the handling benefit of the part and to ensure that caster, camber, and toe are properly set for your driving application.

Yes. The KTA416 is compatible with lowered applications including coilover setups on the S550 Mustang. In fact, lowered suspension settings that push the factory geometry further into understeer tend to benefit most from the KTA416's offset bushing correction. Always perform an alignment after adjusting ride height or installing suspension components.

The tension link controls fore-aft geometry (caster and anti-dive characteristics), while lateral links control side-to-side wheel position (camber and toe). The KTA416 specifically addresses the tension link, which is the forward-running link in the S550 front lower control arm assembly. Separate lateral link upgrades exist for camber and toe correction on the S550 platform.

Polyurethane bushings are firmer than OEM rubber and will transmit slightly more road noise and vibration under normal driving conditions. Whiteline designs their polyurethane formulations to balance compliance resistance with acceptable NVH levels for dual street and track use. Most drivers find the NVH increase to be minimal at street driving speeds and fully acceptable given the handling improvement delivered.

Yes. The S550 chassis underpinning the GT350, GT350R, GT500, and Mach 1 uses the same front lower tension link architecture as the standard Mustang GT and Ecoboost. The KTA416 fits all S550 Mustang variants using the FM and FN chassis through the 2023 model year. Confirm your specific model year and chassis code before ordering.

Installation is possible with jack stands and basic hand tools in a home garage environment, but access to a vehicle lift significantly simplifies the process. The tension link bolts are accessible from under the vehicle and require standard metric socket sizes. A torque wrench and alignment appointment after installation are required for proper setup.

Installation Instructions

1. Lift and safely support the vehicle on jack stands or a vehicle lift with the front wheels hanging free.
2. Remove the factory front lower tension link by unbolting both ends: the subframe side and the lower control arm side.
3. Compare the Whiteline KTA416 to the OEM part to confirm correct part before installation.
4. Install the KTA416 with all bolts hand-tight before torquing to avoid binding the bushings in a pre-loaded position.
5. Lower the vehicle to ride height so suspension is loaded before performing final torque.
6. Torque all mounting bolts to Ford specification with suspension at ride height.
7. Schedule a four-wheel alignment immediately after installation to set proper caster, camber, and toe.
