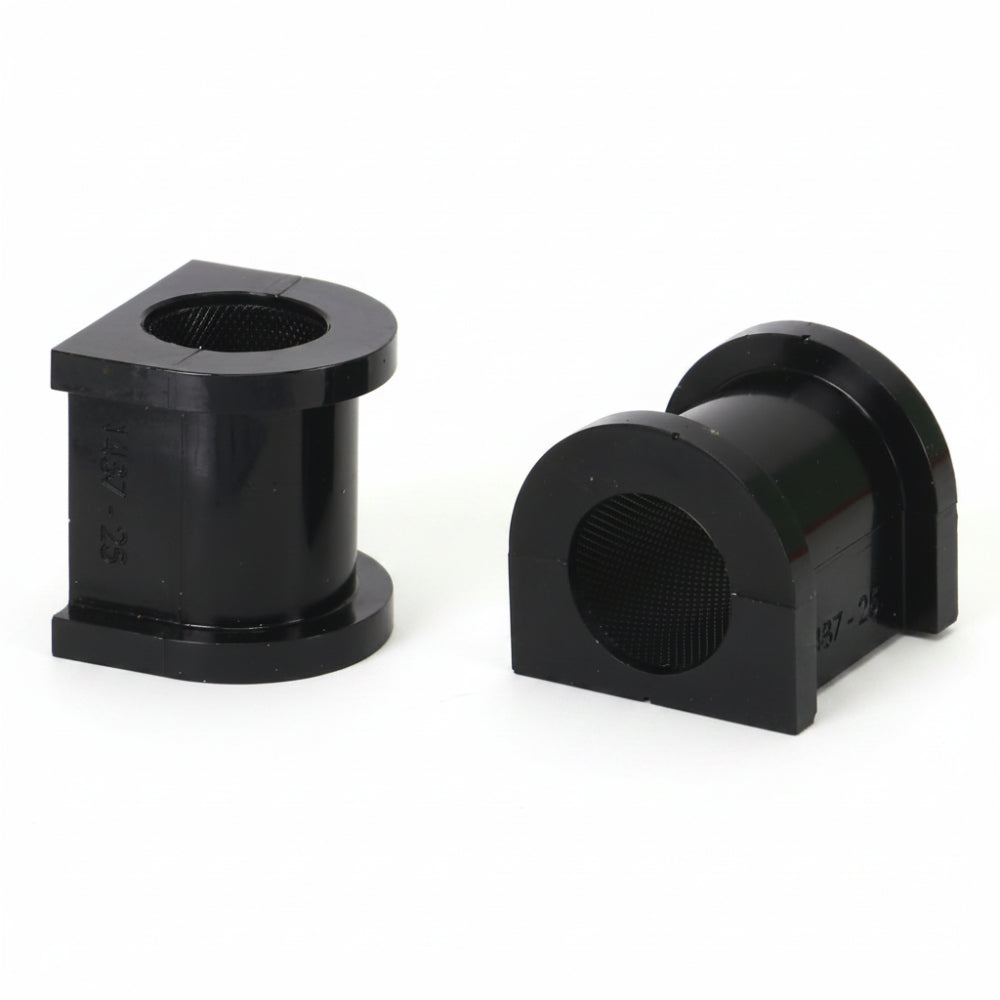

Whiteline 25mm sway bar mount bushing front view
Whiteline 25mm sway bar mount bushing close up

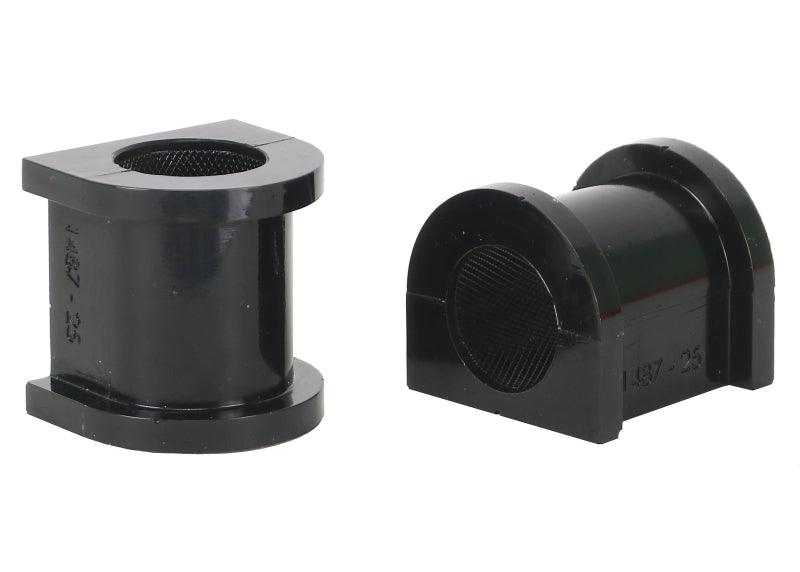

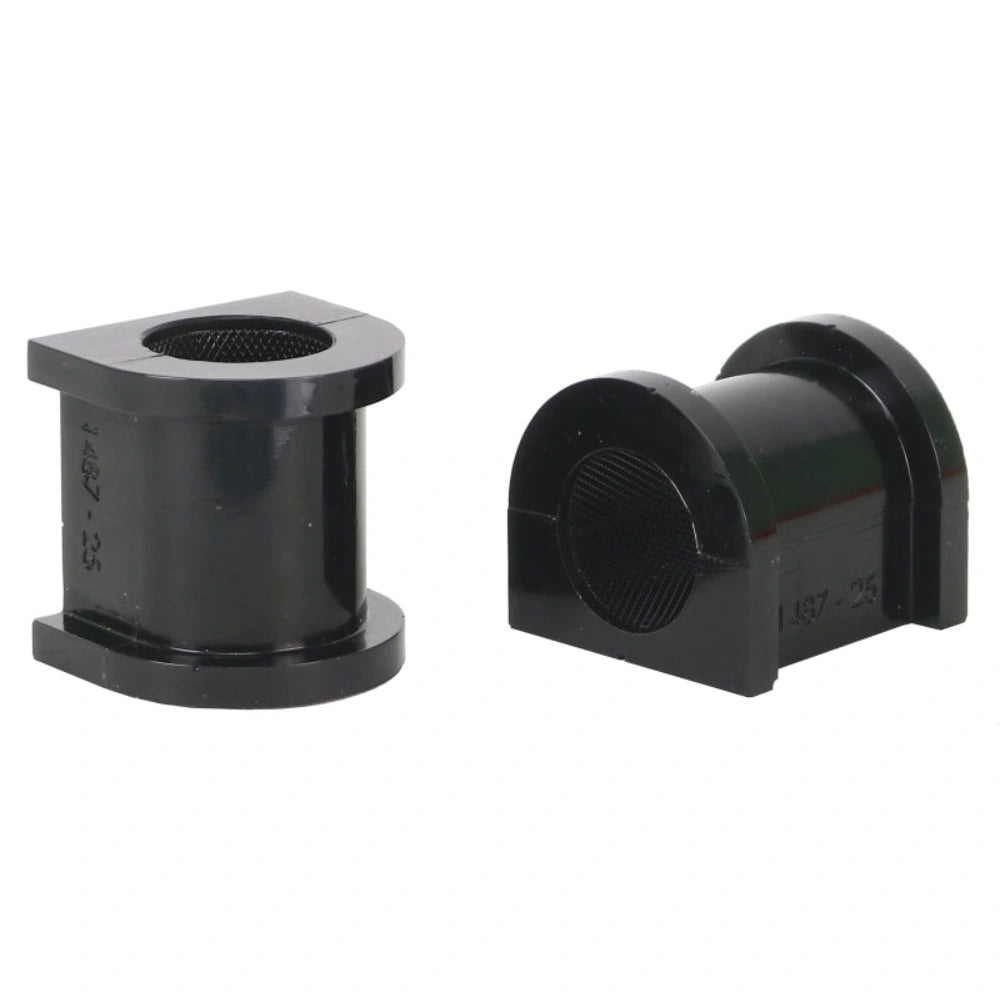

Whiteline 25mm sway bar mount bushing kit contents
Click to zoom in

Whiteline Universal 25mm Sway Bar Mount Bushing Kit

Whiteline
WHLW21999-25
9319924472932
Sway Bar Bushings
1 Units In Stock - Ships Next Business Day
$ 19.06
$ 19.06

Restore Secure Sway Bar Mounting

Keep a 25 mm sway bar properly supported with a universal mount bushing kit designed for front or rear installation. The flanged D bushing profile and knurled inner bore help retain grease at the bar while the synthetic elastomer construction supports consistent suspension movement.

Key Features

  • Universal fit for a 25 mm sway bar
  • Two flanged D bushings with a knurled inner bore to help retain grease
  • Synthetic elastomer construction for durable suspension service
  • Front or rear mounting when the bar diameter and bracket setup match
  • Designed for use with a W21301 or KBR10 universal mounting bracket
  • Black finish shown in the product images
  • Whiteline limited lifetime warranty
  • Exact manufacturer part number: W21999-25

Fitment

Vehicle Application Position Compatibility Requirement
Any vehicle using a 25 mm sway bar Front or rear Use with a compatible W21301 or KBR10 universal mounting bracket

Specifications

Detail Value
Brand Whiteline
Manufacturer part number W21999-25
Product type Universal sway bar mount bushing kit
Bushing design Flanged D bushing
Bar diameter 25 mm
Bushing quantity 2
Outside diameter 35.6 mm
Inside diameter 25 mm
Length 40.7 mm
Flange thickness 4 mm
Flange outside diameter 38.6 mm
Material Synthetic elastomer
Color Black
Bracket compatibility W21301 or KBR10 universal mounting bracket
Installation time 1 hour
Warranty Limited lifetime

What's Included

  • Two Whiteline 25 mm sway bar mount bushings

About Whiteline

Whiteline develops suspension bushings and chassis components for controlled movement, reliable bar support, and improved handling consistency. Its synthetic elastomer bushings use application specific designs to maintain the intended relationship between the sway bar and mounting structure.

FAQ

What is the W21999-25?

It is a universal kit containing two flanged mount bushings for a 25 mm sway bar.

What sway bar diameter does this kit fit?

This kit fits a sway bar with a verified 25 mm diameter. Measure the bar before ordering because nearby sizes are not interchangeable.

Can these bushings be installed on the front or rear?

They can be used at the front or rear when the vehicle uses a 25 mm bar and the mounting bracket matches the bushing profile.

Which mounting bracket works with the bushings?

Use a compatible W21301 or KBR10 universal mounting bracket for the intended installation.

How many bushings are in the package?

The package contains two mount bushings for one sway bar mounting location pair.

What are the bushing dimensions?

The bushings measure 35.6 mm outside diameter, 25 mm inside diameter, 40.7 mm length, 4 mm flange thickness, and 38.6 mm flange outside diameter.

What does the knurled inner bore do?

The knurled inner bore is designed to help retain grease around the sway bar during service.

What material are the bushings made from?

They use a synthetic elastomer formulation and have a black finish.

How long does installation take?

Whiteline lists an installation time of about one hour. The actual time depends on vehicle access and the condition of the existing mounting hardware.

What warranty is included?

Whiteline backs the bushings with a limited lifetime warranty. Review the current warranty terms before installation.

Installation Instructions

  1. Confirm that the sway bar measures 25 mm and that the mounting bracket is compatible with the bushing profile.
  2. Park the vehicle on a stable level surface, apply the parking brake, and support the vehicle safely if access requires lifting.
  3. Remove the existing sway bar mount hardware and retain the fasteners only if they are serviceable and specified for reuse.
  4. Clean the sway bar and mounting surfaces, then inspect the bar for damage, corrosion, or wear that could prevent proper seating.
  5. Apply suitable grease to the bar and position one bushing around the bar with the flange seated against the mounting structure.
  6. Install the compatible universal saddle or bracket and repeat the process on the other mounting location.
  7. Install the hardware and tighten it to the vehicle or bracket manufacturer's specified torque.
  8. Check that both bushings are seated evenly and that the sway bar moves without binding before lowering the vehicle.
  9. After a short road test, recheck the mounting area for movement, noise, or loose hardware.
