Wilwood Dynapro Lug Mount P/S P-B Kit Drilled-Red New Big Ford 2.50in Offset

Hidden parking brake, Pro Series Dynapro performance for Big Ford rear axles

The Wilwood 140-13181-DR Dynapro Lug Mount Rear Parking Brake Kit is the complete DPL Pro Series solution for muscle car and street rod builds running a Big Ford new style 9 inch rear with a 2.50 inch axle offset. Forged billet Dynapro four piston lug mount calipers in red powder coat clamp on 12.19 inch drilled and slotted one piece drum and rotor castings, while a clean internal shoe system delivers serious static holding power for parking, all hidden behind the wheel. The result is balanced, repeatable rear braking with the show finish to match the front.

Why builders choose the Wilwood Dynapro Lug Mount Parking Brake Kit

• Forged billet Dynapro four piston calipers in red powder coat, 1.38 inch and 1.38 inch piston bores, 3.00 square inch piston area
• 12.19 inch drilled and slotted one piece drum and rotor castings, 0.81 inch width
• Internal shoe parking brake hidden inside the rotor hat for a clean look and strong static hold
• BP-10 high friction pad compound, 6.36 square inches of pad area per axle
• Lug mount caliper design simplifies installation and reduces flex under load
• Direct fit for Big Ford new style 9 inch rear, 2.50 inch axle offset
• Minimum 15 inch wheel diameter required, verify with Wilwood wheel clearance diagram

Built for street, strip, and show machines

If you have upgraded the front of your muscle car to disc, the rear should match. The Dynapro Lug Mount Rear Parking Brake Kit gives you a proper rear disc setup without sacrificing the daily driver convenience of a parking brake. The internal shoe system tucks neatly inside the rotor hat, so there are no exposed cables, mechanisms, or aftermarket calipers cluttering the wheel well. Forged billet calipers, stainless pistons, and high friction BP-10 pads keep the rear under control whether you are cruising, autocrossing, or staging at the strip.

Fitment

This Wilwood Dynapro Lug Mount Rear Parking Brake Kit fits any rear axle that meets the following specs:

• Rear end: Big Ford new style 9 inch flange
• Axle offset: 2.50 inch
• Minimum wheel diameter: 15 inch

Commonly used on Ford 9 inch rear swaps in classic Mustangs, Falcons, Fairlanes, Galaxies, and street rods, plus any custom build running a Big Ford new style housing with 2.50 inch offset. Always verify your axle flange, offset, and wheel clearance against the Wilwood diagram before ordering.

Specifications

• Part number: 140-13181-DR
• Caliper: Dynapro Lug Mount, four piston, red powder coat
• Piston bores: 1.38 inch and 1.38 inch, stainless
• Total piston area: 3.00 square inches
• Rotor: 12.19 inch Ultralite HP 32, drilled and slotted, iron
• Rotor width: 0.81 inch, 32 vane
• Pad compound: BP-10, 6.36 square inch pad area per axle
• Parking brake: Internal shoe system, mechanical
• Mount type: Lug
• Axle offset: 2.50 inch, Big Ford new style flange

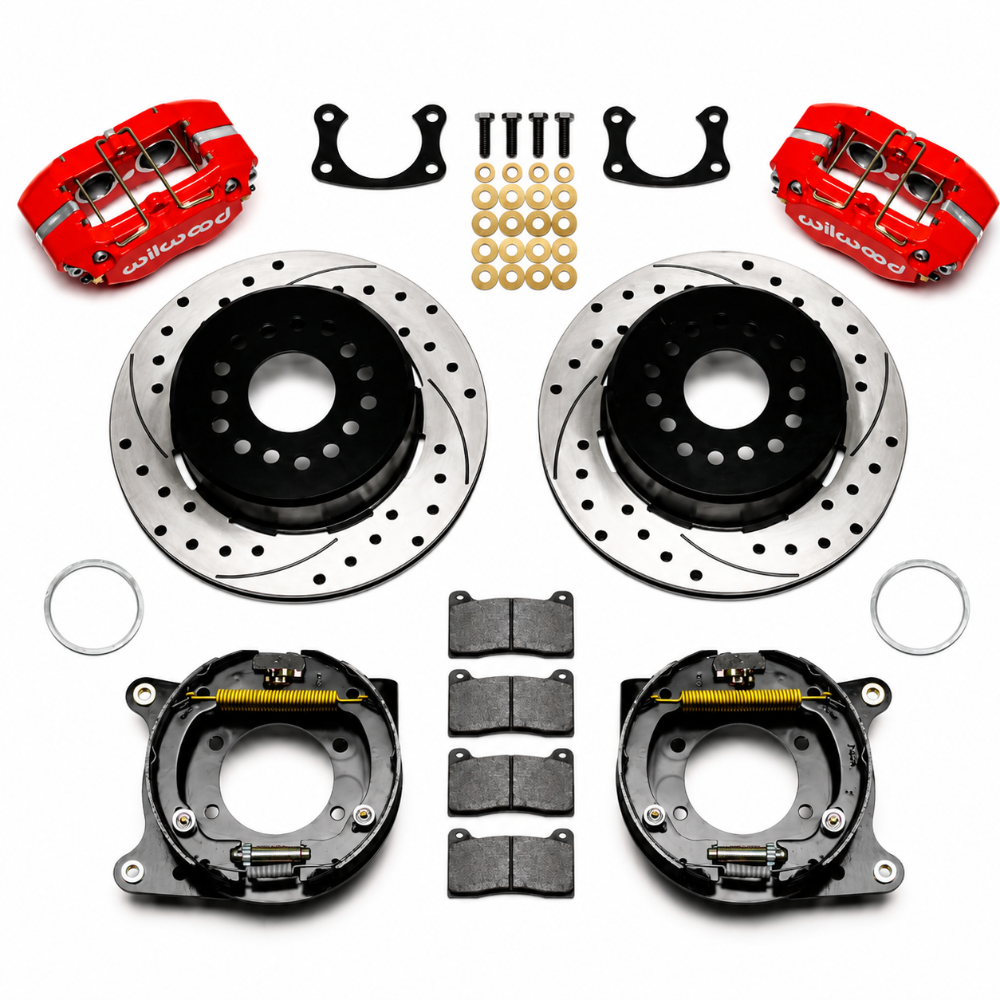

What is in the box

• Pair of Dynapro Lug Mount four piston calipers, red powder coat
• Pair of 12.19 inch drilled and slotted rotor and drum assemblies
• Internal parking brake shoes and hardware
• BP-10 brake pad axle set
• Caliper mounting bolts, brackets, and complete instruction sheet

Installation Instructions

1. Raise and support the vehicle, remove the rear wheels, and disassemble the factory rear brakes down to the bare axle flanges. Inspect the axle, bearings, and seals.
2. Confirm the axle flange is Big Ford new style with a 2.50 inch offset, then verify wheel clearance using the Wilwood diagram.
3. Slide the rotor and drum assembly with the internal parking brake shoes preinstalled onto the axle flange, oriented to the supplied direction of travel arrows.
4. Bolt the caliper mounting bracket to the axle housing with the supplied hardware, then mount the Dynapro caliper to the bracket using the included bolts and washers.
5. Center the rotor in the caliper using the supplied shims until the gap is equal on both sides, then fully torque the caliper bolts to Wilwood spec.
6. Install the BP-10 brake pads and secure with the retaining pins.
7. Connect the parking brake cables to the internal shoe mechanism on each side and adjust per the Wilwood instruction sheet so the lever travel is correct.
8. Connect the supplied brake lines, bleed the system thoroughly starting from the caliper furthest from the master cylinder, and check for leaks before road testing at low speed.
