SKU: 120-13843

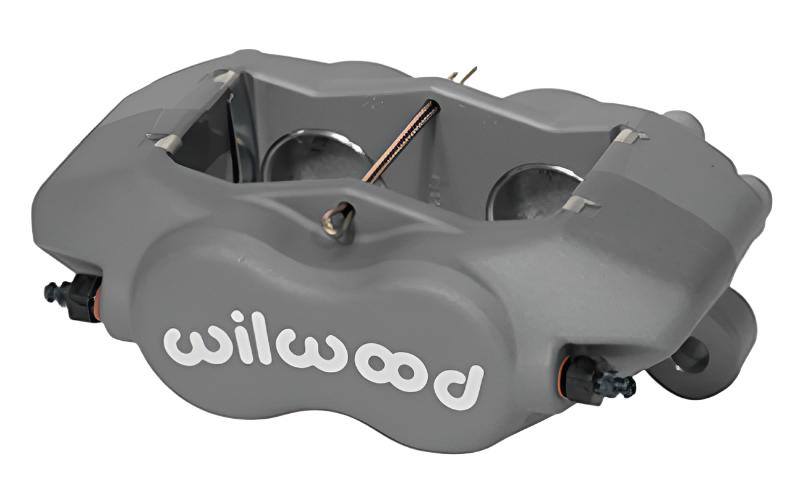

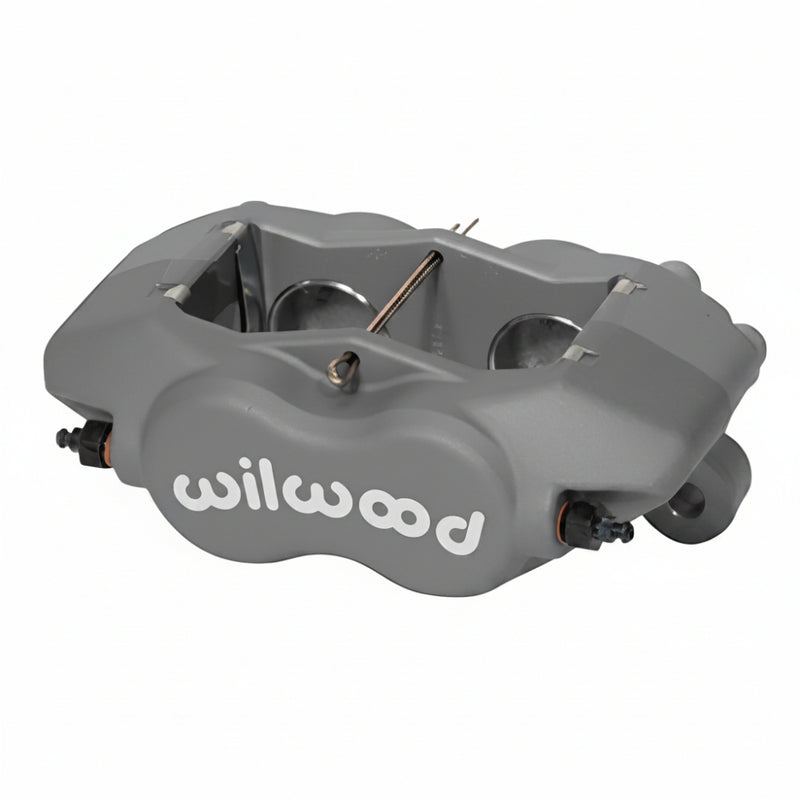

Wilwood Forged Dynalite Internal Caliper
Type III Ano 1.75in Piston .38in Rotor
Forged Dynalite Internal
The Forged Billet Dynalite Internal is the next generation enhancement of the venerable Forged Dynalite series calipers. Designed with a single split bridge and spacer less design to enhance strength and appearance. These latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. This new spacer-less design of the Forged Dynalite series of calipers, makes this the stiffest and most visual pleasing design so far.
The Forged Billet Dynalite Internal is the strongest caliper in the class, with weights starting at 3.00 pounds. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Dynalite to outperform all existing styles of this popular caliper size.
|
Pistons |
|
|
Piston Count |
4 |
|
Piston Area (in²) |
4.80 |
|
Piston Type |
Stainless |
|
Dust Boot |
No |
|
Rotor Dimensions |
|
|
Rotor Width (in) |
0.38 |
|
Rotor Diameter(in) |
13.06 |
|
Pad Dimensions |
|
|
Pad Area (in²) |
6.36 |
|
Pad Volume (in³) |
2.1 |
|
Duty Rating & Material |
|
|
Material |
Forged Aluminium |
|
Weight(Lbs) |
3.6 |
|
Colors & Finish |
|
|
Color |
Anodize |
|
Finish |
Type III Anodize |
|
Mounting |
|
|
Mount Center(in) |
5.25 |
|
Mount Position |
|
|
Mount Side |
Universal |
|
Mount Type |
Lug |
|
UPC Number |
|
|
UPC |
889545099003 |
|
Mounting Specifications |
|
|
Mount Type |
Lug |
|
Mount Side |
Universal |
|
Mount Center(in) |
5.25 |
|
Mount Hole Size(in) |
0.39 |
|
Mount Height(in) |
2.03 |
|
Inlet Thread Size |
1/8-27 NPT |
|
Piston Specifications |
|
|
Piston 1 Bore (in) |
1.75 |
|
Piston 2 Bore (in) |
1.75 |
|
Piston 3 Bore (in) |
|
|
Total Piston Area (in²) |
4.80 |
|
Rotor Compatibility |
|
|
Rotor Width (in) |
0.38 |
|
Maximum Rotor Width (in) |
0.38 |
|
Minimum Rotor Width (in) |
0.25 |
|
Maximum Rotor Diameter(in) |
13.06 |
|
Minimum Rotor Diameter(in) |
10.00 |
|

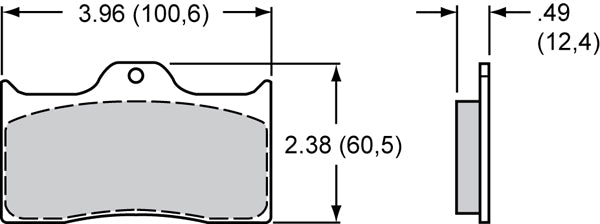

Brake Pad Specifications |
|
|
Brake Pad Type 1 |
|
|
Brake Pad Type 2 |
N-A |
|
Brake Pad Type 3 |
N-A |
|
Total Pad Area (in²) |
6.36 |
|
Total Pad Volume (in³) |
2.1 |
|
