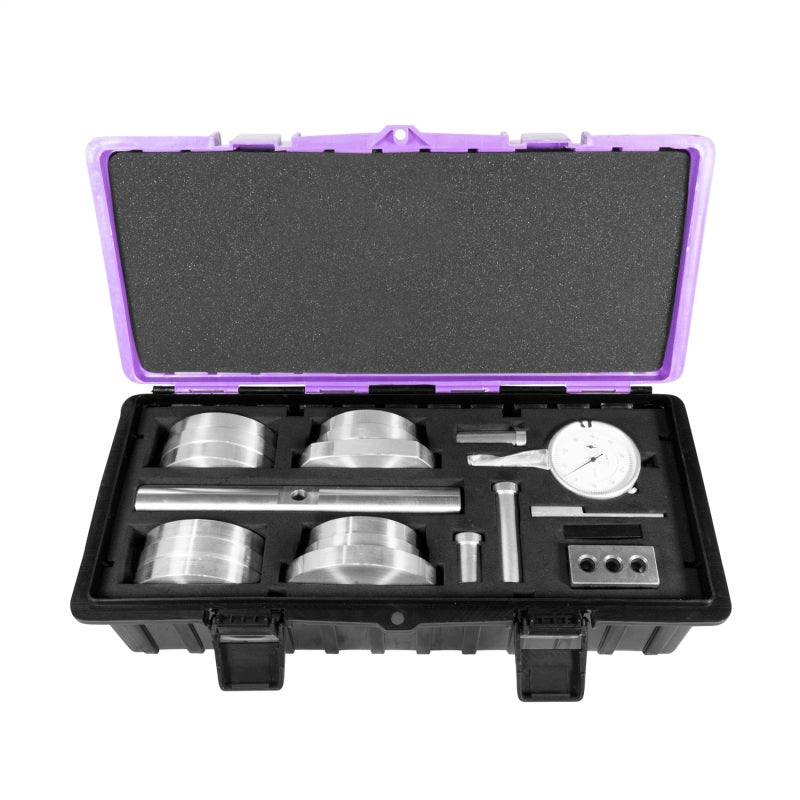

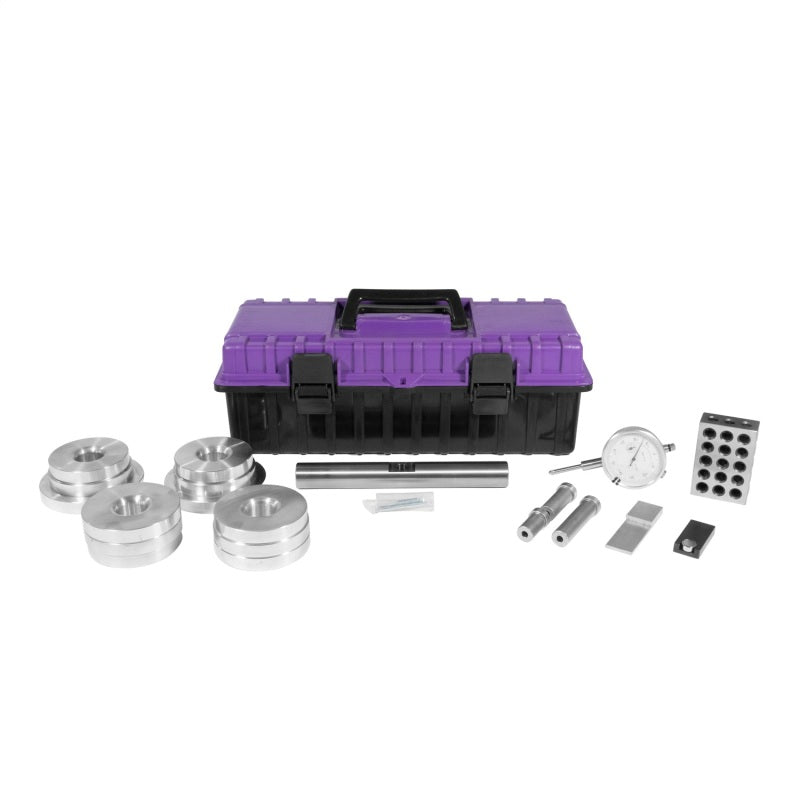

Yukon Deluxe Pinion Depth Setting Tool/Gauge is the exact Yukon Gear & Axle tools identified by manufacturer part number YT D02. Match the part number, vehicle, axle housing, differential, spline count, gear ratio, carrier break, position, dimensions, and intended use before ordering.
Key Features
- Comprehensive Shim Kit – Includes shims from 0.005 to 0.050 inches in 0.005 increments for fine tuning.

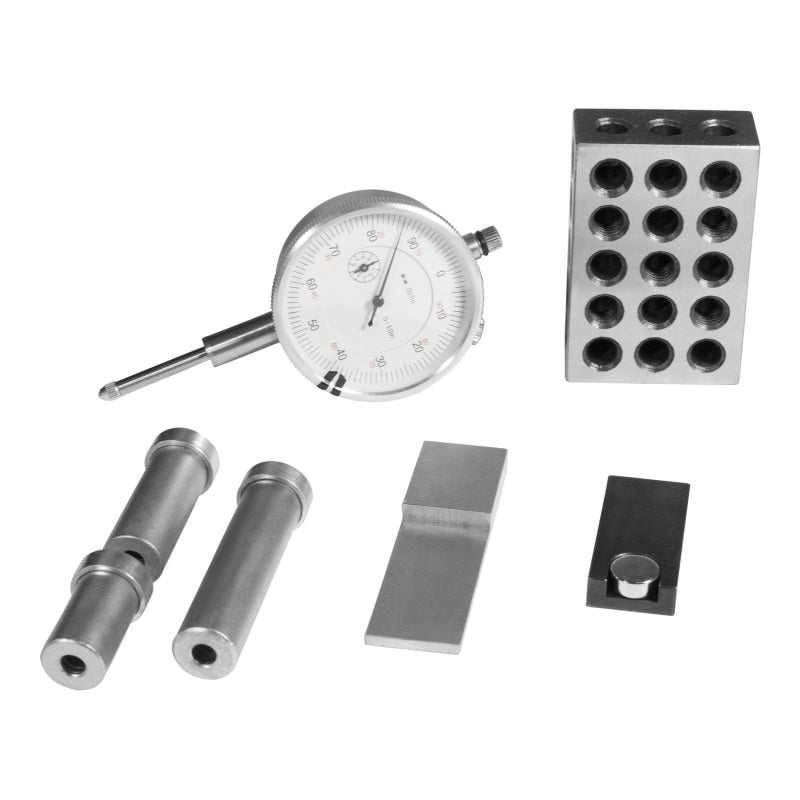

- Key Features Precision Gauge Block – Provides accurate reference for pinion depth measurement down to 0.001 inches.

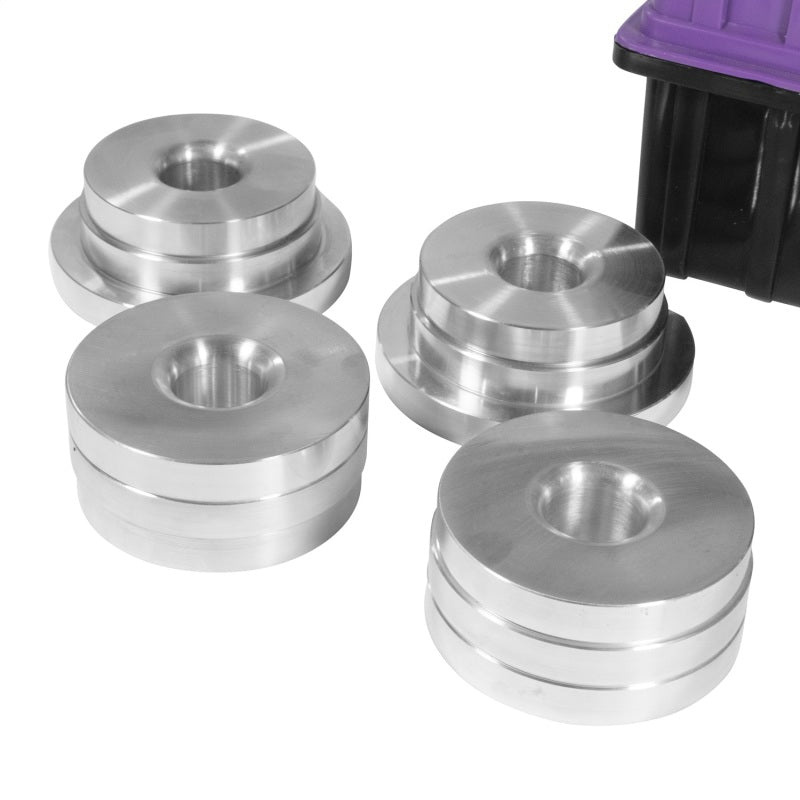

- Adjustable Measuring Bar – Fits various housing sizes for Dana 30, 44 and compatible axles.
- Durable Construction – Machined aluminum and steel components resist wear in shop environments.
- A: Kit includes full range. extras available separately.
- Designed for Dana 30 front and Dana 44 rear axles found in Rubicon, Sport, Sahara and other trims.
Fitment
Verified catalog applications: 2018-2022 Jeep Wrangler. Confirm axle housing, differential, spline count, gear ratio, carrier break, position, and manufacturer exclusions for the exact vehicle before ordering.
| Years | Make | Model |
|---|---|---|
| 2018-2022 | Jeep | Wrangler |
Specifications
| Brand | Yukon Gear & Axle |
|---|---|
| Manufacturer Part Number | YT D02 |
| SKU | YUKYT D02 |
| UPC | 883584103097 |
| Product Type | Tools |
| Fitment Type | Vehicle Specific |
| Catalog Status | Manufacturer Catalog Verified |
| Condition | New |
What's Included
One new Yukon Gear & Axle tools identified by manufacturer part number YT D02, plus only the bearings, seals, shims, fasteners, and hardware expressly supplied for this exact part number.
About Yukon Gear & Axle
Yukon Gear & Axle develops ring and pinion sets, axles, differentials, bearings, seals, installation kits, and drivetrain service components for street, towing, off-road, and performance applications.
Related Yukon Gear & Axle Products
- Shop all Yukon Gear & Axle products
- Yukon Gear 9in Spanner Tool
- Yukon Gear Cross Pin Bolt Extractor Kit
- Yukon Gear Side Adjuster Tool, Chrysler 7.25in/8.25in/9.25in
Frequently Asked Questions
Will Yukon Gear & Axle YT D02 fit my vehicle?
Verified catalog applications: 2018-2022 Jeep Wrangler. Confirm axle housing, differential, spline count, gear ratio, carrier break, position, and manufacturer exclusions for the exact vehicle before ordering.
What should I verify before ordering?
Verify the exact part number, vehicle, axle housing, differential, spline count, gear ratio, carrier break, bearing dimensions, position, intended use, and manufacturer exclusions.
What is included?
The package contains only the Yukon Gear & Axle components and hardware specified for part number YT D02. Related bearings, seals, fluids, tools, and service parts are sold separately unless expressly listed.
Installation
Follow Yukon Gear & Axle's current instructions for part number YT D02. Confirm all measurements and clearances, inspect mating components, set bearing preload and gear backlash where applicable, verify contact pattern, use specified lubricants and torque values, and have precision differential work completed by a qualified drivetrain technician.
