Stop Hunting For Discontinued Ford 10.5 Gear Sets

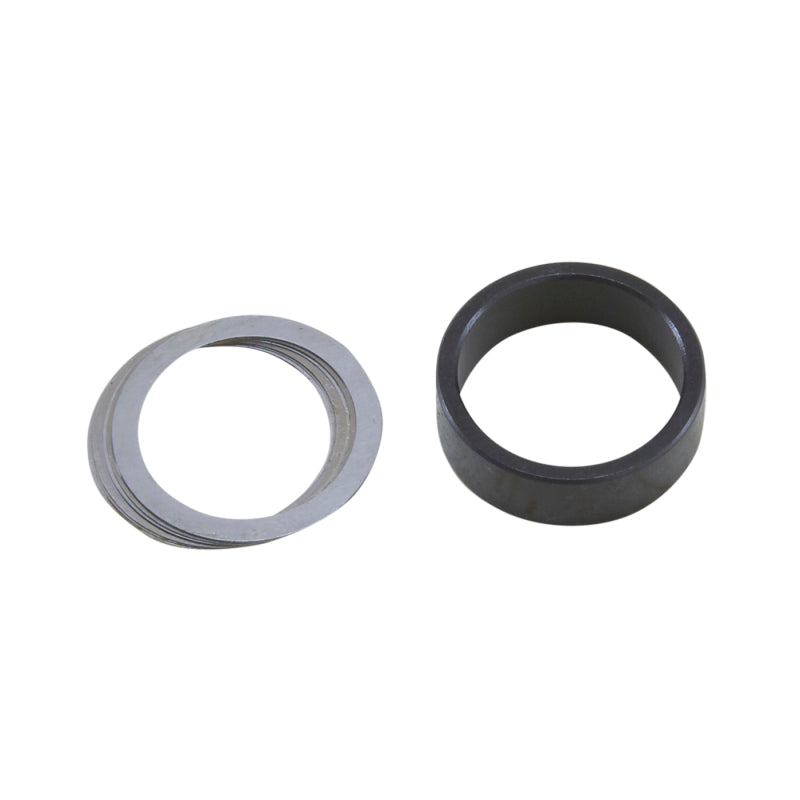

The Yukon Gear SK F10.5-CONV conversion spacer solves a real problem for 2008 and up Ford 10.5 inch differential owners. Since Ford discontinued many 10.5 inch specific ring and pinion sets, this spacer lets you install the widely available 10.25 inch ring and pinion into a 2008 and up 10.5 inch housing. It is a precision machined shim designed specifically for this conversion, giving you access to a broader range of gear ratios without swapping the entire housing.
Key Features
- Precision machined conversion spacer for 2008 and up Ford 10.5 inch housings
- Allows use of readily available Ford 10.25 inch ring and pinion sets
- Opens up gear ratio options when 10.5 inch specific gear sets are hard to source
- Manufactured by Yukon Gear and Axle to precise tolerances for accurate pinion depth
- Compact, corrosion resistant construction built for long service life
Specifications
| Detail | Value |
|---|---|
| Part Number | SK F10.5-CONV |
| Brand | Yukon Gear & Axle |
| Application | Converts 2008 and up Ford 10.5 inch housing to accept Ford 10.25 inch ring and pinion |
| Material | Precision machined steel |
| Position | Rear differential, pinion side |
What's Included
- 1x Yukon Gear conversion spacer, SK F10.5-CONV
- Installation instructions
About Yukon Gear & Axle
Yukon Gear and Axle has manufactured differential components, ring and pinion sets, and drivetrain hardware for decades. Their conversion and shim kits are precision machined to restore or upgrade factory tolerances, giving installers a reliable path to non factory gear ratios without custom fabrication.
Frequently Asked Questions
What is the SK F10.5-CONV?The SK F10.5-CONV is a precision machined spacer that allows a Ford 10.25 inch ring and pinion set to be installed in a 2008 and up Ford 10.5 inch differential housing.
Which vehicles use this conversion spacer?It fits 2008 and up Ford trucks and vans built with the 10.5 inch rear differential housing, including Super Duty F-250 and F-350 models and select E-Series vans.
Why would I convert my 10.5 inch housing to use 10.25 inch gears?Ford discontinued several 10.5 inch specific ring and pinion ratios over the years. The 10.25 inch gear sets remain widely produced, so this spacer gives you far more ratio options for regearing.
Do I need any other parts to complete this conversion?Yes. You will also need a compatible 10.25 inch ring and pinion set and the correct bearing and installation kit for your application. This spacer only handles the housing to gear set conversion.
Is this a difficult installation?This conversion should be performed by someone experienced with differential setup, since pinion depth and backlash must be checked and adjusted using standard gear marking compound procedures.
Are any special tools required?A dial indicator, pinion depth setting tools, and standard differential assembly tools are recommended to properly verify backlash and gear pattern after installation.
Does installing this spacer affect my warranty on the ring and pinion set?Warranty coverage is determined by the ring and pinion manufacturer. Follow their recommended installation and break in procedures to keep that warranty valid.
Is there a break in period after installation?Yes. As with any new ring and pinion installation, a break in period with reduced load and highway driving is recommended before towing or heavy use.
Can this spacer be reused if I change gear ratios again later?The spacer itself can typically be reused as long as it is not damaged, but always inspect it for wear before reinstalling with a new gear set.
What is the return policy on this part?This part can be returned if unused and in original packaging within our standard return window. Contact us before installation if you have fitment questions.
Install Instructions
- Remove the differential cover and drain the gear oil.
- Remove the ring and pinion, carrier, and pinion bearing assembly per your housing's service procedure.
- Position the SK F10.5-CONV spacer at the pinion mounting location as specified in the conversion instructions.
- Install the Ford 10.25 inch pinion gear along with the correct bearing kit for this conversion.
- Set pinion depth using gear marking compound and adjust shims as needed.
- Install the ring gear and carrier, then check and adjust backlash to specification.
- Recheck the gear pattern, torque all fasteners to spec, and refill with the correct gear oil.
- Reinstall the differential cover with a new gasket and torque bolts in sequence.
