Restore Proper Ride Height Sensor Function After a Lift on Your 2023-2026 Ford F-250, F-350, or F-450 Super Duty with Zone Offroad
The Zone Offroad ride height sensor relocation bracket kit for the 2023-2026 Ford F-250, F-350, and F-450 Super Duty 4WD. When a suspension lift is installed on these trucks, the factory ride height sensors can no longer read the correct suspension position, which may cause the adaptive suspension and stability control systems to function incorrectly or trigger warning lights.
The ZONF5502 provides precision-fabricated steel relocation brackets that reposition the ride height sensor linkage to accurately read the new raised suspension position after a lift is installed. This correction kit is designed for use with Zone Offroad's lift systems for the 2023-2026 Super Duty 4WD that change front ride height and require sensor recalibration through mechanical linkage adjustment. Proper sensor positioning is required for correct airbag deployment thresholds, adaptive damping, and stability control calibration on these trucks.
Key Features
- Ride height sensor relocation bracket kit for 2023-2026 Ford F-250, F-350, F-450 Super Duty 4WD
- Corrects factory sensor position after lift installation to restore accurate ride height readings
- Maintains proper function of adaptive suspension, stability control, and airbag thresholds
- Steel bracket construction for durability in all weather conditions
- Designed for use with Zone Offroad lift systems on the 2023-2026 Super Duty
- Eliminates fault codes and warning lights caused by lift-induced sensor mispositioning
Vehicle Fitment
| Year Range | Make | Model |
|---|---|---|
| 2023-2026 | Ford | F-250 Super Duty |
| 2023-2026 | Ford | F-350 Super Duty |
| 2023-2026 | Ford | F-450 Super Duty |
Specifications
| Detail | Value |
|---|---|
| Part Number | ZONF5502 |
| Brand | Zone Offroad |
| Type | Ride height sensor relocation bracket kit |
| Material | Steel |
| Fitment | 2023-2026 Ford F-250, F-350, F-450 Super Duty 4WD |
| Application | For use with lift installations requiring sensor relocation |
| UPC | N/A |

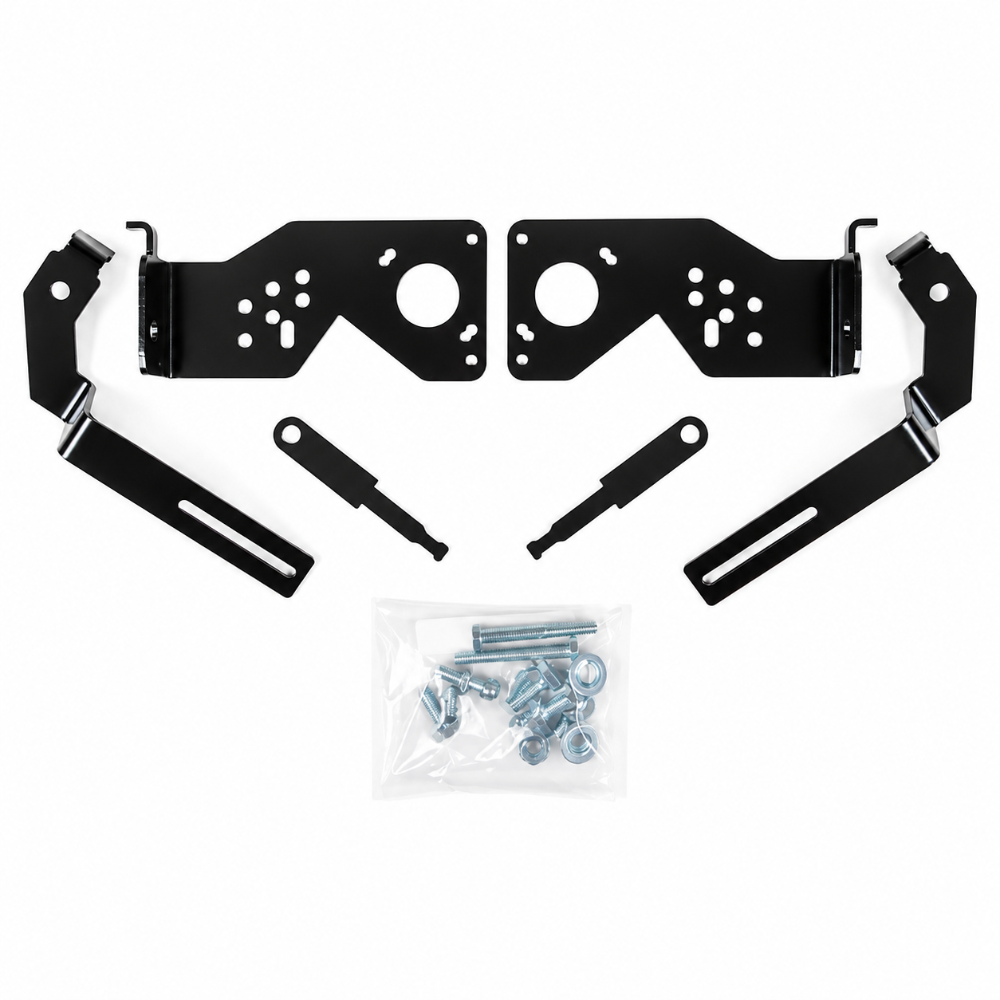

What's Included
- Zone Offroad ZONF5502 ride height sensor relocation brackets
- Hardware for installation
About Zone Offroad
Zone Offroad engineers and manufactures suspension lift kits and related components for full-size trucks and SUVs, backed by Factory Protection Plus coverage including a limited lifetime warranty and ESC system compliance testing. Zone Offroad develops correction kits like the ZONF5502 to ensure that their lift systems maintain proper factory electronic system function after installation.
Related Parts on Our Site
- Zone Offroad ZONF4601 2014-2026 Ford F-150 6-Inch Loaded Strut - Related Zone Offroad F-Series suspension component
- Zone Offroad ZONF4301 2014-2025 Ford F-150 3-Inch Loaded Strut - Related Zone Offroad F-Series strut
Frequently Asked Questions
What is the Zone Offroad ZONF5502?
The Zone Offroad ZONF5502 is a ride height sensor relocation bracket kit for the 2023-2026 Ford F-250, F-350, and F-450 Super Duty 4WD. It repositions the factory ride height sensor linkage to correctly read the new suspension position after a lift kit is installed, preventing incorrect adaptive suspension behavior, fault codes, and warning lights caused by sensor mispositioning at the raised ride height.
Why do I need a ride height sensor relocation kit after installing a lift?
The factory ride height sensors on the 2023-2026 Super Duty are calibrated to measure suspension travel within the factory ride height range. When a lift kit raises the suspension, the sensor linkage falls outside its calibrated measurement range, which can cause the adaptive suspension, ESC, and airbag systems to misread the suspension position. The ZONF5502 relocates the sensor bracket so the sensor reads correctly at the new lifted height, restoring proper electronic system function.
Does the ZONF5502 work with non-Zone lift kits on the 2023-2026 Super Duty?
The ZONF5502 is designed and tested for use with Zone Offroad lift systems on the 2023-2026 Ford Super Duty 4WD. Compatibility with other brand lift kits depends on the specific lift dimensions and sensor bracket geometry. Contact Zone Offroad technical support to confirm compatibility with your specific lift kit brand and lift height before ordering.
Will the ZONF5502 clear any fault codes triggered by the sensor after a lift?
Mechanically relocating the sensor linkage with the ZONF5502 should restore proper sensor readings and clear fault codes caused by lift-induced sensor mispositioning. If fault codes persist after installation, verify that the sensor bracket is positioned correctly per the Zone Offroad instruction sheet and that the sensor linkage moves freely through the full suspension travel range.
Is the ZONF5502 required for Zone Offroad lifts on the 2023-2026 Super Duty?
On 2023-2026 Ford Super Duty 4WD trucks equipped with adaptive suspension or ride height sensors, a sensor relocation kit is typically required whenever a lift that changes front ride height is installed. The Zone Offroad ZONF5502 is the recommended correction kit for their 2023-2026 Super Duty lift systems. Verify with the complete Zone Offroad kit installation instructions whether the ZONF5502 is included or sold separately for your specific lift kit.
Does the ZONF5502 fit both diesel and gas engine Super Duty models?
The ZONF5502 is a bracket kit that mounts to the suspension and sensor linkage, not to the engine. It is compatible with both gas and diesel powertrain variants of the 2023-2026 Ford F-250, F-350, and F-450 Super Duty 4WD, as the front ride height sensor location is the same across powertrain configurations on these models.
Is this a required add-on or is it included in Zone Offroad lift kits?
The ZONF5502 may be included in some Zone Offroad complete lift kit packages for the 2023-2026 Super Duty or sold separately as an add-on. Refer to the Zone Offroad kit contents list for your specific lift kit part number to confirm whether the sensor relocation kit is already included before purchasing separately.
Can I install the ZONF5502 myself?
Yes. The ZONF5502 is a bracket replacement kit that installs with standard hand tools. No welding or cutting is required. Familiarity with basic suspension service and the ability to torque fasteners to specification are sufficient. Follow the Zone Offroad installation instructions included with the kit.
Installation Instructions
- Safely lift and support the vehicle at the frame rails with adequate access to the front suspension and ride height sensor area.
- Locate the factory ride height sensor bracket on the affected suspension side. Note the sensor arm position and linkage geometry before disassembly for reference.
- Remove the factory sensor bracket hardware. Do not disconnect the electrical connector from the sensor itself unless required by the Zone Offroad instructions.
- Install the Zone Offroad ZONF5502 relocation bracket in place of the factory bracket using the provided hardware. Align the bracket per the Zone Offroad installation diagram.
- Reconnect the sensor linkage arm to the new bracket position. Ensure the linkage moves freely through the full suspension travel range without binding.
- Torque all hardware to Zone Offroad specification per the included instruction sheet.
- Cycle the suspension through its full travel range and verify no binding or interference occurs with the sensor linkage in the new position.
- Clear any stored fault codes with a scan tool and verify no new codes set after cycling the suspension and driving at low speed.
