Transmission Internals for 4L60E, 4L80E, TH400, 68RFE and E4OD

What Transmission Internals Cover

Transmission Internals includes service and performance components inside automatic transmissions and transfer cases. The right combination can restore a worn unit or improve torque capacity when matched to the build.

Soft Parts and Hard Parts

Soft parts include clutches, frictions, steels, seals, gaskets, and filters. Hard parts include drums, sprags, shafts, gears, adapters, and cases. A complete build often needs both.

Automatic Rebuild Kits

Master rebuild kits combine many of the seals, clutches, steels, and hardware needed for a particular transmission. Confirm the exact transmission code and production year before choosing a kit.

Clutches, Bands, and Sprags

Friction materials transfer power through clutch packs. Bands apply specific drums. A sprag is a one way clutch that must hold in the correct direction under load.

Diesel Truck Transmissions

The selection includes 47RE, 48RE, 68RFE, E4OD, 4R100, and 5R110 components for hard working diesel trucks. Higher torque builds may need upgraded shafts, clutch capacity, valve body calibration, and converter selection.

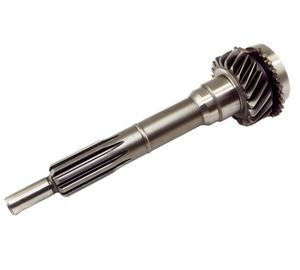

Input Shafts and Drums

Billet shafts and reinforced drums help address known weak points in high torque or competition use. Select only parts listed for the specific transmission and intended power range.

Transfer Case and Speedometer Parts

Some products serve transfer cases and related speedometer drive systems, especially on Jeep applications. Tooth count, gear length, and transfer case model are critical.

Build Planning

Transmission rebuilding requires clean work, correct clearances, specialty tools, and service manual procedures. Consider professional assembly for internal hard part or hydraulic control changes.

Top Brands

• BD Diesel. Diesel transmission rebuild kits, sprags, and performance components
• ATS Diesel. Billet shafts and heavy duty diesel driveline upgrades
• FTI Performance. Race transmission drums, sprags, and internal assemblies
• Sonnax. Transmission valve body, shaft, and hard part solutions
• TCI. Performance transmission components and rebuild products
• Rugged Ridge. Jeep transfer case and speedometer gear parts
• Omix. Jeep transfer case service components

How to Choose the Correct Part

• Confirm the vehicle year, make, model, engine, and drivetrain
• Identify the exact transmission or transfer case code
• Verify production year and any transmission identification tag details
• Choose a rebuild kit that matches clutch count and application
• Match band, drum, sprag, and shaft parts to the transmission family
• Consider torque output, tire size, towing, and intended use
• Inspect the torque converter and cooler for contamination
• Plan valve body calibration with the rest of the build
• Use the factory manual for clearances, endplay, and torque values
• Use a qualified transmission builder when changing internal hard parts

Common Questions

What are transmission internals?

They are the parts inside a transmission or transfer case, including clutches, steels, bands, sprags, drums, shafts, gears, seals, and hydraulic control components.

What is a transmission sprag?

A sprag is a one way clutch that locks in one direction and freewheels in the other. It is a critical component in many automatic transmissions.

Do I need new clutches for a transmission rebuild?

Most rebuilds replace worn friction clutches and steels along with seals and other wear items. The correct kit depends on the specific transmission.

How do I identify a 4L60E or 4L80E?

Use the transmission identification, vehicle application, pan shape, case design, and service information. Do not rely on a visual guess alone.

Can a 68RFE handle more torque with internal upgrades?

Upgrades can improve capacity, but success depends on the complete combination including tuning, converter, valve body, cooling, and installation quality.

What is included in a master rebuild kit?

Contents vary, but many include friction plates, steel plates, seals, gaskets, bushings, and selected hardware. Read the individual kit contents carefully.

Should I replace the transmission cooler after a failure?

Cooler contamination can damage a rebuilt transmission. Flush or replace the cooler and lines according to the rebuilder recommendation.

Do transmission internals fit multiple years?

Some do, but variations in clutch count, sensor design, shaft spline, and calibration make year and transmission code verification essential.

Can I rebuild an automatic transmission at home?

Experienced builders with service data, clean workspace, measuring tools, and specialty equipment can. Complex performance builds are best handled by a qualified shop.

Can Black Ops Auto Works help identify internals?

Yes. Provide the vehicle details and exact transmission code or part number for fitment help.
