Description
Regulate the Correct Returnless Fuel Module

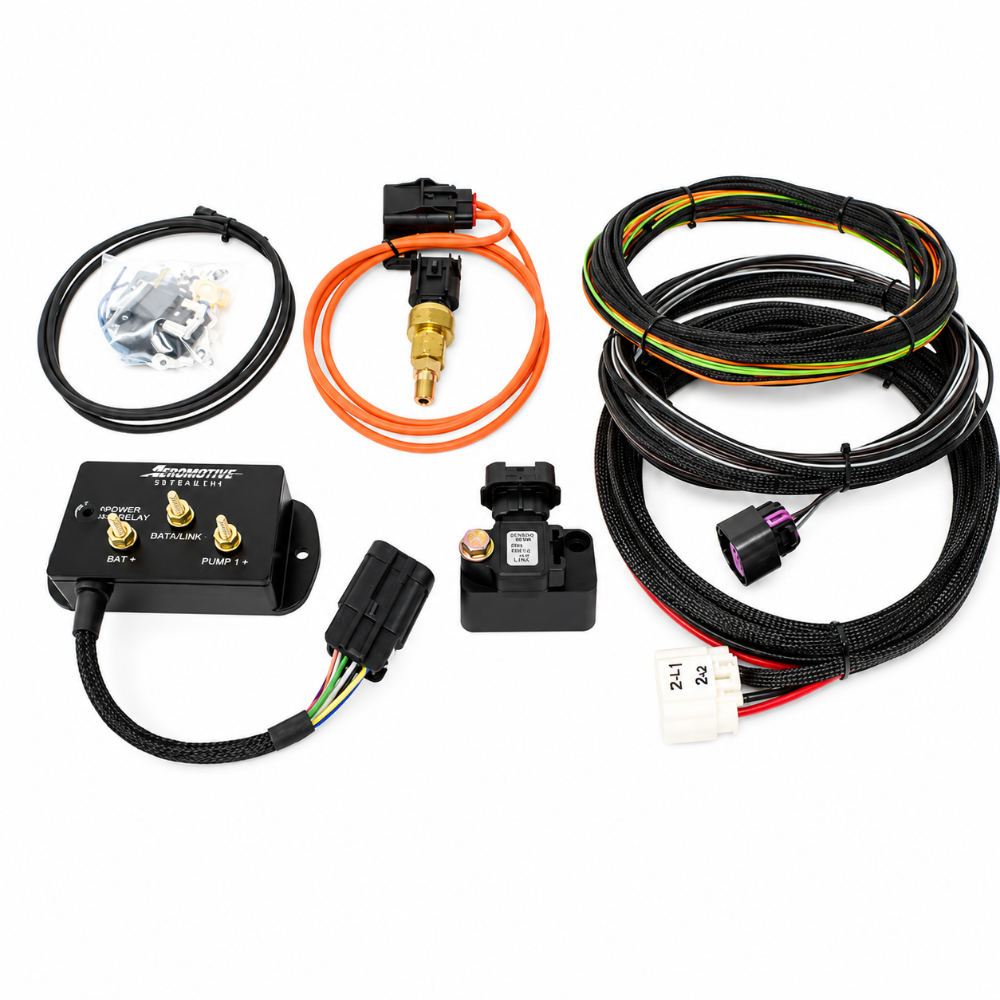

Aeromotive 66136 is the VaporWorx BoostWorx returnless PWM controller kit for the documented GM ZL1-style module configuration. It regulates fuel pressure through pump-speed control and fuel-pressure feedback; it is not a fuel pump or a complete hydraulic fuel system.
Key Features
- Closed-loop fuel-pressure feedback for the documented returnless fuel module.
- Constant or 1:1 manifold-referenced operation where permitted by the exact module/controller configuration.
- Supplied stand-alone MAP components keep controller manifold sensing separate from engine operation.
- ECM fuel-pump enable integration retains prime and shutdown behavior when correctly installed.
- Current primary specifies 10–22V operation and a 40A minimum continuous rating; required fuse size is a separate circuit-protection specification.
Fitment
The current primary page and exact manual cover GM Gen5/Gen6 Camaro, C7 Corvette, Aeromotive Super ZL1, CTS-V3 and many GM truck modules using brushed pumps. This is compatibility with the documented fuel modules, not a direct-fit vehicle installation approval or blanket brushless-pump support.
Match the actual module, pumps, electrical demand, hydraulic layout and ECM calibration. Module compatibility is not certification that the kit directly fits every vehicle using that module. Aeromotive restricts emission-controlled use to direct replacements matching OEM specifications.
Specifications
| Detail | Value |
|---|---|
| Brand | Aeromotive / VaporWorx |
| Manufacturer Part Number | 66136 |
| Component | Returnless fuel-module PWM controller kit |
| Pressure feedback | Fuel-pressure sensor near module outlet |
| Manifold reference | Supplied stand-alone MAP sensor, configuration dependent |
| Primary operating voltage | 10–22V; primary states below 10V at turn-on circuit causes shutdown |
| Primary current rating | 40A minimum continuous as published; verify actual pump/booster demand and circuit protection |
| Brass controller terminal torque | 10 in-lb maximum; follow exact manual for assembly |
| Condition | New |
The current page describes typical 42–60 PSI base settings; the exact manual allows initial pressure as low as 32 PSI and describes an approximate 60 PSI setup. These are operating examples, not one universal calibration or a guarantee that any module supports any pressure.
The eight-cavity table documents blue D for positive ECM enable and yellow H for negative enable, but a later step says a negative signal will not function. Confirm the actual controller revision and approved trigger path before wiring; do not resolve the contradiction by guessing a pin or using both signals.
For the documented module layout, pressure feedback controls pump speed without an external mechanical regulator or return line. Built-in final filtration makes an extra filter generally unnecessary; any added filter must not trap pressure with an internal check valve.
What's Included
- Controller and documented power/signal wiring for the selected fuel-module configuration
- Fuel-pressure feedback sensor and documented sensor wiring
- Stand-alone MAP sensor, mounting assembly, barb/hose and related wiring as documented
- Fused battery connection, ring terminals, heat-shrink/braid and mounting provisions described in the exact manual
Fuel module, pumps, tank, engine fuel rails, diagnostic pressure gauge and application-side plumbing are separate. Exact boxed item counts, harness lengths, sensor revision and every application adapter are not independently confirmed; do not infer a full hydraulic system or a GT500 conversion from a general family description.
About Aeromotive
Aeromotive develops performance fuel pumps, regulators, filters, rails, tanks, fittings, controllers, and complete fuel-system components for street, racing, and custom applications. Black Ops Auto Works organizes each listing by exact part number and available application data to support accurate system planning.
Related Parts
- Aeromotive exact module-controller product and specifications
- Aeromotive exact Rev. C installation and pressure-setup manual
- Browse Aeromotive fuel-system components
Frequently Asked Questions
What is the 66136?
It is an Aeromotive/VaporWorx returnless PWM fuel-module controller kit for the documented GM ZL1-style module configuration; a fuel pump, fuel module or tank is not included.
How does it regulate fuel pressure?
Fuel-pressure sensor feedback changes pump speed to maintain the selected pressure. The supplied stand-alone MAP assembly provides optional 1:1 manifold referencing only in approved configurations. This differs from a ReturnX speed controller used with a mechanical regulator.
Which fuel modules are supported?
The current primary page and exact manual cover GM Gen5/Gen6 Camaro, C7 Corvette, Aeromotive Super ZL1, CTS-V3 and many GM truck modules using brushed pumps. This is compatibility with the documented fuel modules, not a direct-fit vehicle installation approval or blanket brushless-pump support.
What fuel-pressure setting should I use?
The current page describes typical 42–60 PSI base settings; the exact manual allows initial pressure as low as 32 PSI and describes an approximate 60 PSI setup. These are operating examples, not one universal calibration or a guarantee that any module supports any pressure.
Can I leave the MAP sensor disconnected?
The documented constant-pressure mode leaves the MAP assembly/wiring disconnected. Manifold-referenced operation requires the supplied sensor matched to the controller and the corresponding ECM calibration.
Where does the fuel-pressure sensor mount?
Near the fuel-module outlet using a suitable 1/8-NPT female tap. Mounting it at the engine fuel rail can make the controller chase injector pressure pulses. A convenient gauge diagnostic port serves a different purpose.
What source qualifications need attention?
The eight-cavity table documents blue D for positive ECM enable and yellow H for negative enable, but a later step says a negative signal will not function. Confirm the actual controller revision and approved trigger path before wiring; do not resolve the contradiction by guessing a pin or using both signals.
What plumbing and electrical checks are required?
For the documented module layout, pressure feedback controls pump speed without an external mechanical regulator or return line. Built-in final filtration makes an extra filter generally unnecessary; any added filter must not trap pressure with an internal check valve. Use only the approved positive or negative ECM-enable path for the actual controller revision. Preserve the ECM's prime and engine-off shutdown behavior; do not use continuous ignition power. Direct battery wiring and the exact circuit protection are required; no chassis-ground substitution.
Installation Instructions
- Have a qualified technician verify the exact module, controller tune, engine requirements and manual before altering the fuel system. Depressurize the system and disconnect battery power.
- Mount the controller on a suitable flat surface near the battery, away from heat; use direct battery power and negative connections with the documented fused link and protected routing.
- Install the feedback sensor near the module outlet in the specified 1/8-NPT female provision. Support hoses so their weight and strain cannot break plastic module outlets.
- Use the supplied MAP assembly at the correct manifold source only when the selected configuration requires manifold referencing. Resolve the sensor/connector qualifications above before energizing.
- Use only the approved positive or negative ECM-enable path for the actual controller revision. Preserve the ECM's prime and engine-off shutdown behavior; do not use continuous ignition power. Respect the 10 in-lb maximum for brass terminal nuts and the exact wiring diagram; do not copy another controller's connector or fuse selection.
- Use the exact manual's flushing procedure, fuel level and refill pauses to avoid running the module dry. Reconnect the system, check every joint for leaks and measure pressure with a gauge.
- Set pressure according to the exact engine/module requirements and controller instructions. Verify stable pressure under changing load, correct ECM-controlled shutdown and all module pressure limits before use.
