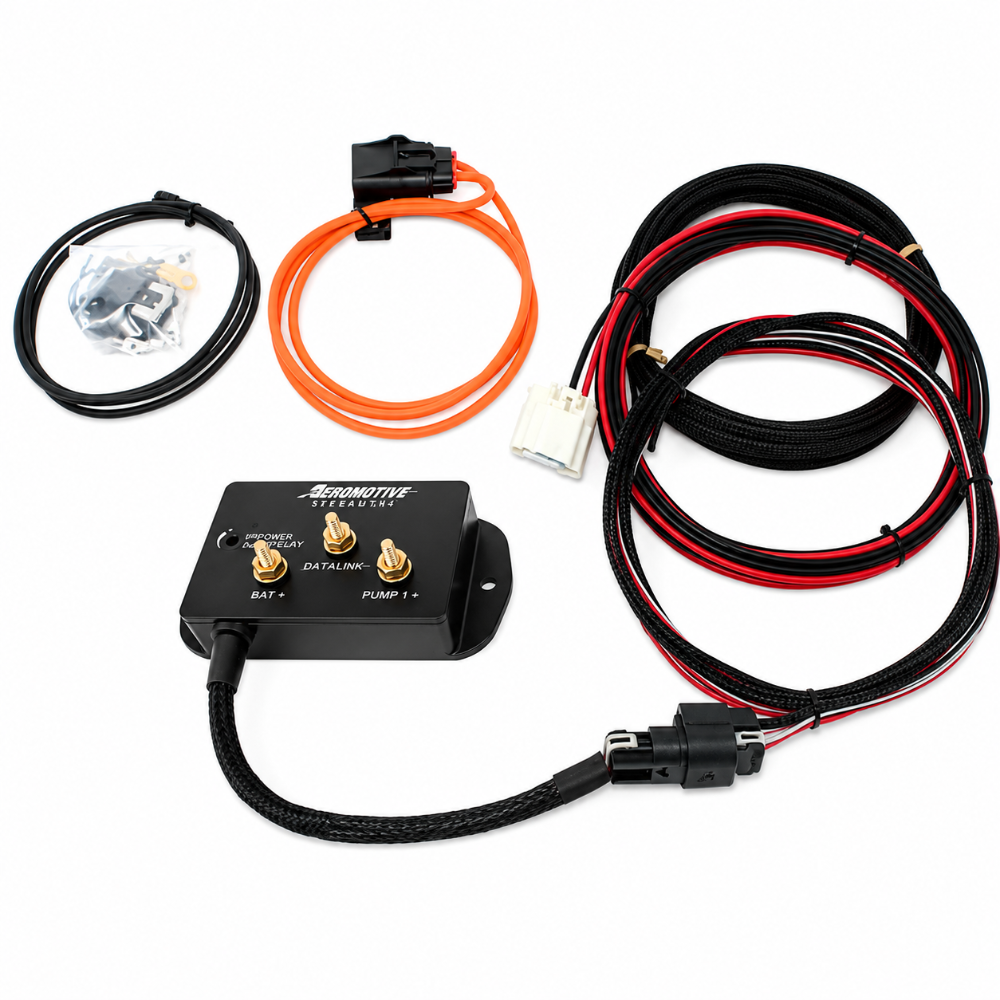

Aeromotive VaporWorx DualX OEM Ally Returnless Pulse Width Modulation Fuel Module Controller Kit
Click to zoom in
View vehicle applications

Description

Match the Controller to the Fuel-System Strategy

Aeromotive 66182 is an Ally DualX power-driver kit that follows a positive or pull-to-ground PWM command. In an OEM layout the FSCM/FPDM remains the master regulating fuel pressure and driving the primary pump, while Ally supplies the secondary pump.

Key Features

  • Power-sharing driver follows the OEM master or an approved aftermarket ECM pulse output.
  • In the OEM layout the secondary pump/module runs whenever the primary runs. This is not the Auto-On 4/5 PSI boost-staged strategy. When driven by an aftermarket ECM, the ECM must provide the appropriate PWM command map and the hydraulic system needs its external pressure regulator.
  • Pump configuration and actual hardware calibration must match the installation.
  • ECM-controlled prime/shutdown behavior and the exact protected battery wiring remain essential.

Fitment

For the documented OEM fuel-module/FSCM arrangement, including the CTS-V2-specific dual-pump examples, match the actual module and wiring. The current primary also describes aftermarket ECM pulse-output use with mechanically regulated pumps; this is not automatic closed-loop fuel-pressure regulation supplied by the Ally itself.

This is a system component; no blanket vehicle year/make/model application is established. Aeromotive restricts emission-controlled use to direct replacements matching OEM specifications.

Specifications

Detail Value
Brand Aeromotive / VaporWorx
Manufacturer Part Number 66182
Component Ally DualX PWM Pump Driver controller kit
Command / pressure strategy OEM FSCM/FPDM or approved aftermarket ECM PWM command
Operating voltage Current primary lists 10–22V
Current / protection Current primary lists 10–22V and 40A minimum continuous rating. The manual diagram specifies 40A circuit protection but conflicts with a 240A text line; resolve the actual installation specification before power is applied.
Brass terminal maximum 10 in-lb per exact manual
Condition New

The OEM FSCM/FPDM and its pressure feedback determine pressure in the supported piggyback arrangement. Ally is not a stand-alone pressure controller and does not add a CAN interface merely because the OEM master retains its own diagnostics.

The manual's wiring step calls a two-cavity harness red/yellow, while its diagram and pulse-selection text specify grey for positive pulses and yellow for negative. Its preparation step prints 240A fuse, while the wiring diagram clearly specifies 40A. Treat these as source conflicts, not permission to install a 240A fuse or guess a wire from color alone; confirm actual harness and approved circuit protection.

Keep the FSCM pump ground/low-reference circuit isolated from the Ally pump negative and chassis. Combining them can cause a short-to-ground diagnostic fault. For OEM modules, follow their built-in filtration/check-valve requirements; for aftermarket ECM/pump use, retain a suitable mechanical pressure regulator.

What's Included

  • Ally DualX controller
  • Documented battery, secondary-pump and pulse-input wiring
  • Fused battery-connection provisions, terminals, protective braid/heat shrink and mounting items described in the exact manual

Pumps, tank, hanger, OEM FSCM/FPDM, external hydraulic components, fuel-pressure gauge and engine calibration are separate unless expressly supplied in a different complete system. Exact boxed hardware counts, connector revision and every application-side fitting are not independently certified.

About Aeromotive

Aeromotive develops performance fuel pumps, regulators, filters, rails, tanks, fittings, controllers, and complete fuel-system components for street, racing, and custom applications. Black Ops Auto Works organizes each listing by exact part number and available application data to support accurate system planning.

Related Parts

Frequently Asked Questions

What is the 66182?

It is the Aeromotive/VaporWorx ally dualx pwm pump driver controller/driver kit, not a pump, hanger or complete fuel system.

Which pumps or modules are supported?

For the documented OEM fuel-module/FSCM arrangement, including the CTS-V2-specific dual-pump examples, match the actual module and wiring. The current primary also describes aftermarket ECM pulse-output use with mechanically regulated pumps; this is not automatic closed-loop fuel-pressure regulation supplied by the Ally itself.

How are additional pumps commanded?

In the OEM layout the secondary pump/module runs whenever the primary runs. This is not the Auto-On 4/5 PSI boost-staged strategy. When driven by an aftermarket ECM, the ECM must provide the appropriate PWM command map and the hydraulic system needs its external pressure regulator.

What pressure should I set?

The OEM FSCM/FPDM and its pressure feedback determine pressure in the supported piggyback arrangement. Ally is not a stand-alone pressure controller and does not add a CAN interface merely because the OEM master retains its own diagnostics.

What source differences require confirmation?

The manual's wiring step calls a two-cavity harness red/yellow, while its diagram and pulse-selection text specify grey for positive pulses and yellow for negative. Its preparation step prints 240A fuse, while the wiring diagram clearly specifies 40A. Treat these as source conflicts, not permission to install a 240A fuse or guess a wire from color alone; confirm actual harness and approved circuit protection.

What bypass or ground arrangement is required?

Keep the FSCM pump ground/low-reference circuit isolated from the Ally pump negative and chassis. Combining them can cause a short-to-ground diagnostic fault. For OEM modules, follow their built-in filtration/check-valve requirements; for aftermarket ECM/pump use, retain a suitable mechanical pressure regulator.

What electrical limits apply?

Current primary lists 10–22V and 40A minimum continuous rating. The manual diagram specifies 40A circuit protection but conflicts with a 240A text line; resolve the actual installation specification before power is applied. Use direct battery connections and the exact manual's 10 in-lb maximum for brass terminal nuts.

Is it a universal vehicle installation kit?

No. Confirm the exact controller, pump/module, feedback or command source, wiring, hydraulic layout and ECM calibration. Related system examples do not establish year/make/model fitment or guaranteed horsepower capability.

Installation Instructions

  1. Have a qualified technician verify the actual controller revision, pump/module, sensor or PWM-command source, system plumbing and ECM calibration. Resolve the source differences above before installation.
  2. Depressurize the fuel system, disconnect battery power and remove circuit protection. Mount near the battery on a suitable flat surface away from heat and protect wiring against chafing.
  3. Route direct battery power/negative for the Ally and its separate secondary pump. Keep the OEM FSCM pump ground/low reference isolated; use only the approved positive or negative pulse input, never both.
  4. Follow the exact wiring diagram and the 10 in-lb maximum for brass terminal nuts. Confirm circuit protection for the actual hardware rather than interpreting a conflicting source line as an approved rating.
  5. Keep the FSCM pump ground/low-reference circuit isolated from the Ally pump negative and chassis. Combining them can cause a short-to-ground diagnostic fault. For OEM modules, follow their built-in filtration/check-valve requirements; for aftermarket ECM/pump use, retain a suitable mechanical pressure regulator.
  6. Use the exact manual's fuel-fill, priming, flushing and refill-pause procedures; prevent dry running. Inspect for leaks and verify pressure with a gauge.
  7. Verify correct command tracking, separate pump operation and OEM prime/shutdown behavior; any aftermarket ECM duty map must reach the required output before high engine demand.
