Aeromotive VaporWorx Ford Mustang GT Returnless Pulse Width Modulation Fuel Module Controller Kit

OEM-Style Returnless Fuel Control for the Ford Mustang GT Coyote Platform

The Aeromotive AER66131 VaporWorx Ford Mustang GT Returnless PWM Fuel Module Controller brings electronic, manifold-referenced fuel pressure management to Coyote-powered Mustang GT builds using the low-cost Motorcraft PFS1215 fuel module. The AER66131 replaces the function of a traditional mechanical fuel pressure regulator and return line by electronically controlling the PFS1215 fuel module's pump speed based on a 1:1 manifold pressure signal from the included stand-alone MAP sensor. The system supports base fuel pressures between 42 and 60psi and maintains accurate fuel pressure tracking up to 25psi of boost, making it suitable for naturally aspirated Coyote builds, supercharged GT applications, and Ford Performance Controls Pack crate engine installations where a returnless, manifold-referenced fuel system is required. No return lines, external regulators, or Fuel Pump Driver Module are needed.

Key Features

• Complete returnless PWM fuel control for Ford Mustang GT using Motorcraft PFS1215 fuel module
• Manifold-referenced 1:1 fuel pressure control via included stand-alone MAP sensor
• 42-60psi adjustable base fuel pressure with extended range capability
• Supports up to 25psi of forced induction
• Compatible with all Gen 1-3 naturally aspirated and supercharged Coyote engines
• Compatible with Ford Performance Controls Pack Coyote crate engine applications
• Can also be used in constant pressure mode by removing MAP sensor connection
• OEM Delphi/Aptiv connectors for factory-quality wiring integration
• No return line, external regulator, or FPDM required

Fitment

Specifications

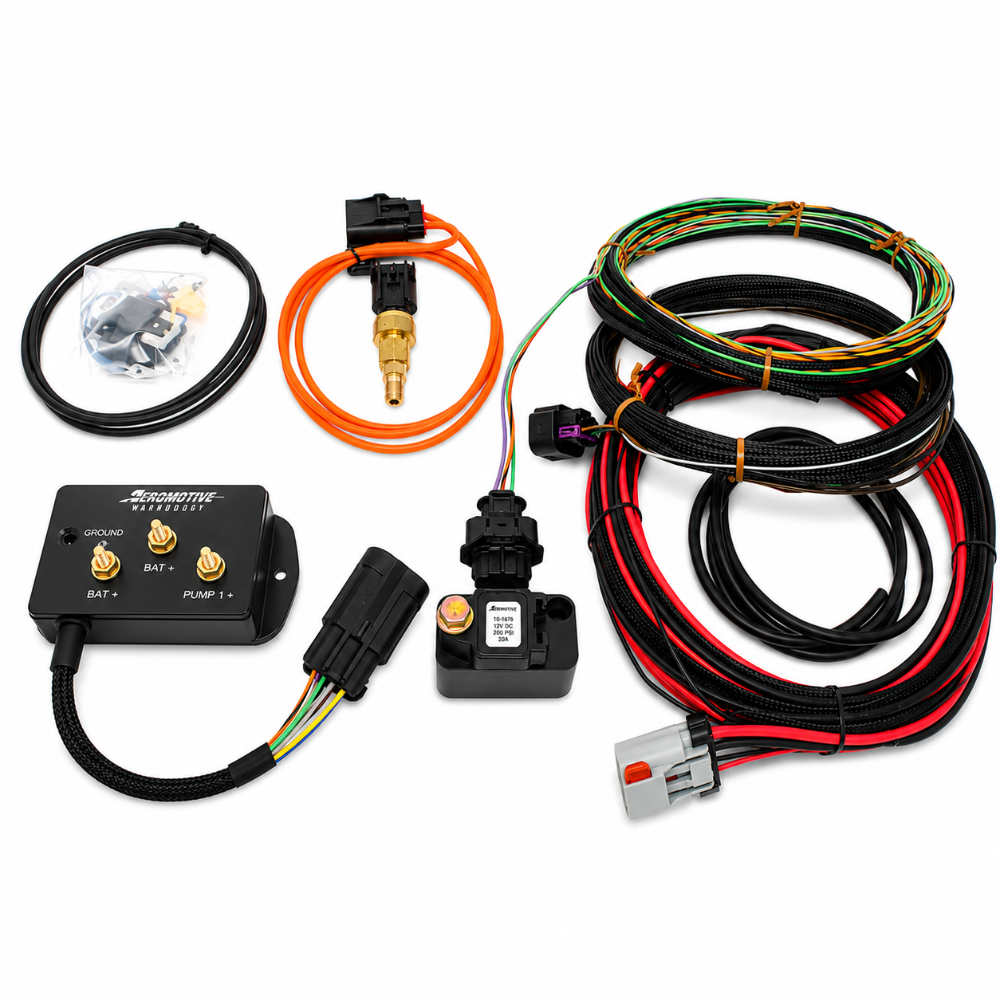

What's Included

• AER66131 PWM fuel pump controller module
• Stand-alone MAP sensor and mounting hardware
• OEM Delphi/Aptiv wiring harness with PFS1215-compatible connectors
• All installation hardware
• Aeromotive/VaporWorx installation documentation

About Aeromotive

Aeromotive is a US-based performance fuel system manufacturer producing pumps, regulators, and controllers for street performance and motorsport applications. The VaporWorx line represents Aeromotive's electronic PWM fuel pump controller technology, developed to bring OEM-grade returnless fuel system management to the aftermarket. The AER66131 is part of the VaporWorx BoostWorx product family targeting specific OEM fuel module platforms including the Ford Mustang Coyote program.

Frequently Asked Questions

The AER66131 is designed for use with the Motorcraft PFS1215 fuel module, which is available as a low-cost OEM part from Ford dealers. The PFS1215 is compatible with Gen 1 through Gen 3 Coyote naturally aspirated and supercharged Mustang GT builds. The AER66131 uses OEM Delphi/Aptiv connectors that are specifically tailored to the PFS1215 module's electrical interface.

Yes. The AER66131 satisfies the fuel pressure requirements of all versions of the Ford Controls Pack for the naturally aspirated Coyote crate engine. The Ford Controls Pack specifies a return-type regulator for manifold referencing. The AER66131 provides the same manifold-referenced fuel pressure behavior electronically, allowing the system to function correctly within the Controls Pack architecture without a traditional return system.

Yes. Removing the MAP sensor vacuum line or disconnecting the MAP sensor wiring from the AER66131 places the controller in constant pressure mode. In this mode, the system delivers a fixed fuel pressure regardless of manifold pressure, which is useful for naturally aspirated applications or builds that do not require manifold referencing.

The AER66131 supports up to 25psi of forced induction when used with the Motorcraft PFS1215 fuel module. Above 25psi, additional fuel system capacity beyond what the PFS1215 module can provide would require a multi-pump solution such as the Aeromotive AER66142 triple pump controller.

The AER66131 controller itself does not contact fuel and is not affected by fuel type. However, the Motorcraft PFS1215 fuel module must be verified for E85 compatibility before use in high-ethanol applications. Consult with Aeromotive technical support regarding E85 use with the PFS1215 module specifically before building an E85 fuel system around this controller.

The AER66131 is calibrated to behave like a traditional manifold-referenced mechanical fuel pressure regulator. From the ECM's perspective, the fuel system behaves identically to a return-style system. A tune is not strictly required to install the AER66131, but dialing in injector pulse width and fuel pressure targets for the specific build is always recommended when modifying any fuel delivery system for a forced induction application.

The AER66131 is configured for a 42-60psi base fuel pressure at idle as shipped. The controller has an adjustment potentiometer that allows the base pressure to be set within the operating range to match the specific engine's fuel pressure requirements. Extended range adjustment is also available beyond the standard 42-60psi window for specialty applications.

Yes. The AER66131 is specifically designed for the Gen 1-3 Coyote Mustang GT platform using the PFS1215 module. Other BoostWorx controllers target different fuel module configurations or different Mustang trim levels such as the GT500. Verify the specific part number matches your fuel module and engine generation before ordering.

Installation Instructions

1. Install the Motorcraft PFS1215 fuel module into the fuel tank per Ford service documentation if not already installed.
2. Mount the AER66131 controller in a protected, ventilated location away from direct heat sources.
3. Connect the AER66131 main power and ground leads to the vehicle battery using the supplied OEM Delphi/Aptiv connectors.
4. Connect the AER66131 fuel module output harness to the PFS1215 module connector using the OEM-style plug.
5. Install the stand-alone MAP sensor on an intake manifold vacuum port using the supplied mounting hardware.
6. Connect the MAP sensor signal wire to the designated input on the AER66131 harness.
7. Route all wiring away from heat sources and secure with appropriate fasteners or zip ties.
8. Connect the AER66131 ignition turn-on circuit to a switched ignition power source.
9. Set the base fuel pressure using the adjustment potentiometer to the target pressure for your application.
10. Start the vehicle and verify fuel pressure at idle with a fuel pressure gauge. Confirm 1:1 manifold referencing by monitoring pressure change under throttle and boost conditions.
