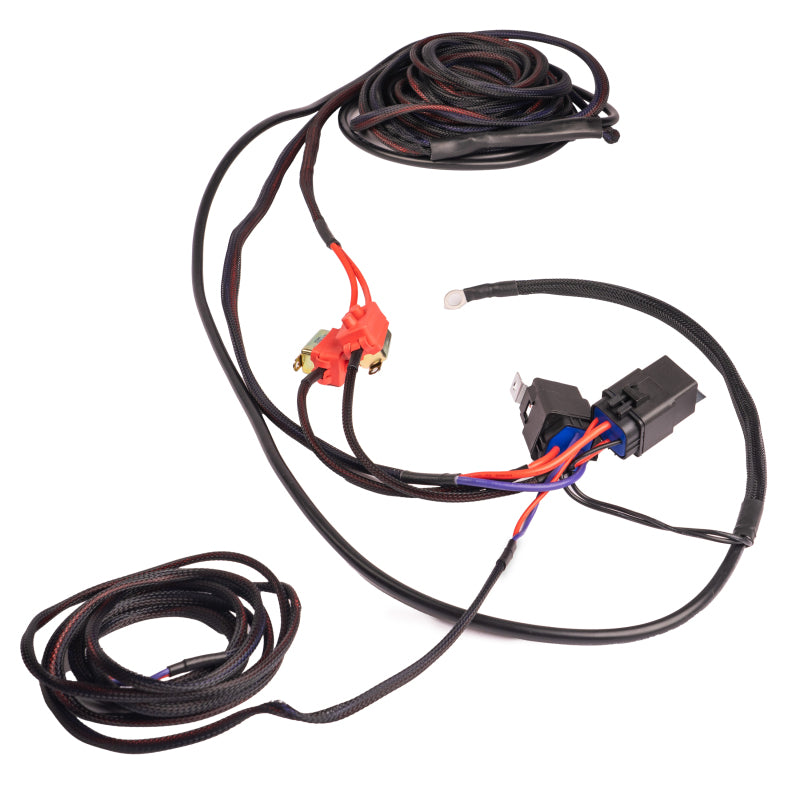

This Aeromotive wiring or control component supports a specific fuel-pump electrical configuration. Confirm system voltage, current draw, wire gauge, relay or controller requirements, pump count, and installation diagram before ordering. Kit Includes: 2 x 30 Amp 12 VDC Automotive Relay 2 x 30 Amp 12 VDC Circuit Breaker 20' overall length for full size vehicles 6 to 10-gauge power and ground wires
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| Universal or specification-matched application. Verify every pressure, flow, fuel, port, electrical, dimensional, and system requirement. | |||
Specifications
| Brand | Aeromotive |
|---|---|
| Manufacturer Part Number | 16312 |
| Product Type | Wiring Harnesses |
| Condition | New |
| Configuration | Wiring Harness Kit - Dual Fuel Pump |
What's Included
One Aeromotive wiring harnesse in the exact configuration and quantity identified by this listing. Additional fittings, hoses, filters, wiring, relays, regulators, brackets, seals, tuning, and hardware are included only when expressly stated.
About Aeromotive
Aeromotive engineers performance fuel pumps, regulators, filters, tanks, rails, fittings, and control hardware for correctly designed street, racing, and powersports fuel systems.
Important Disclosures
- California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
Related Parts
- Aeromotive Fuel Pump Deluxe Wiring Kit
- Aeromotive Fuel Pump 60A Deluxe Wiring Kit
- Shop the complete Aeromotive collection
Frequently Asked Questions
What electrical load must be planned for the Wiring Harness Kit - Dual Fuel Pump?
Match the exact dimensions, interfaces, operating range, materials, and manufacturer application for this part number.
Are supporting parts included?
Only items expressly listed for this exact configuration are included. Fittings, wiring, lines, seals, brackets, and hardware may be separate.
Is professional installation recommended?
Yes when the work affects fuel, pressurized fluid, electrical supply, calibration, or safety-critical mounting.
What should be tested before driving?
Inspect mounting and clearance, pressure- or leak-test the system, verify electrical operation where applicable, and correct every fault before use.
Installation Instructions
- Confirm Aeromotive part number 16312, the complete system design, fuel or fluid type, and all required supporting components.
- Disconnect the battery and confirm the pump's voltage and maximum current requirements.
- Install the specified fuse, relay or controller, wire gauge, grounds, connectors, and trigger circuit using protected routing away from heat and abrasion.
- Verify polarity, continuity, voltage drop, and secure terminals before energizing the pump.
- Test pump control and fuel pressure, then inspect the harness for heat or movement after the initial operating cycle.
