Description

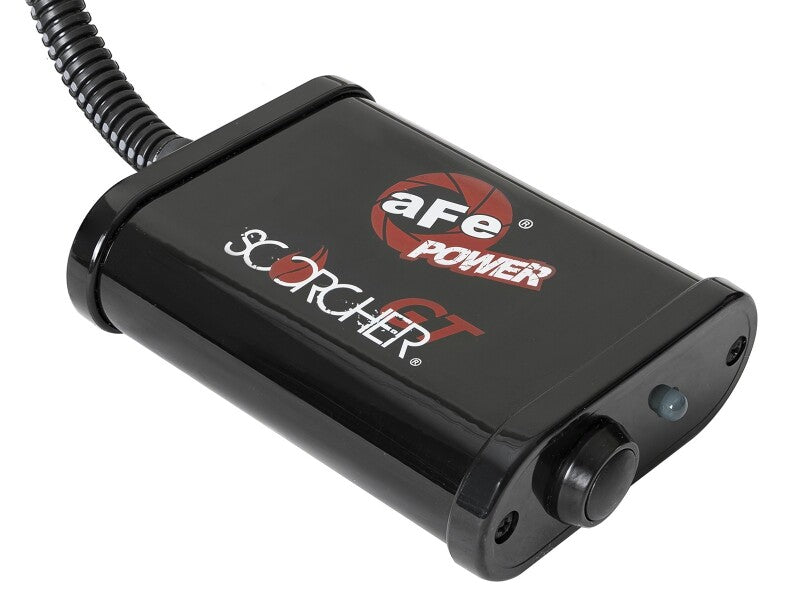

SCORCHER GT MAF Module for 4Runner and FJ Cruiser 4.0L V6
The aFe 77-46010 SCORCHER GT is an in-line Mass Air Flow sensor module for the listed naturally aspirated 4.0L V6 applications. It uses a case-mounted on/off button and blue LED, with factory-style connectors at the MAF circuit. This selected module has no four-mode cabin switch. aFe does not recommend using it with another tuner or power module.
Key Features
- Selected aFe SCORCHER GT module 77-46010.
- Alters the Mass Air Flow sensor signal using factory-style connectors without modifying the original harness.
- Black powder-coated aluminum extrusion enclosure.
- Case-mounted on/off button and blue power LED; no in-cabin four-position switch is listed.
- The selected guide permits switching on or off while the vehicle is running or the ECU remains on.
- Manufacturer estimates about ten minutes for installation; actual vehicle access can differ.
- Manufacturer identifies compatibility with its Momentum GT intake, Magnum FLOW OE replacement filter and Silver Bullet throttle-body spacer; these are separate products.
- aFe does not recommend combining this device with other tuners or power modules.
- Selected modified 2020 4Runner chart marks approximately +10 hp and +12 lb-ft at 4,428 rpm, not peak-to-peak differences or an every-vehicle guarantee.
- Current manufacturer page states it is not CARB exempt and is unavailable for California purchase or use on California DMV-registered vehicles.
Fitment
The current exact manufacturer table supports 2010–2024 Toyota 4Runner and 2010–2014 FJ Cruiser with the gas 4.0L V6. It separately identifies 2015–2023 FJ Cruiser as a non-US model; no later US assignment is inferred from the broader FJ headline. The older selected manual covers both models through 2023, while the current table extends 4Runner to 2024. All original named scopes below are supported by the full exact selected retailer table; the Trail rows retain the 2017–2020 gap. No 2.7L four-cylinder, later turbocharged 4Runner or unrelated engine is inferred.
| Years | Make | Model | Submodel |
|---|---|---|---|
| 2017-2024 | Toyota | 4Runner | TRD Off-Road |
| 2018-2024 | Toyota | 4Runner | TRD Off-Road Premium |
| 2015-2024 | Toyota | 4Runner | TRD Pro |
| 2022-2024 | Toyota | 4Runner | TRD Sport |
| 2020-2021 | Toyota | 4Runner | Venture |
| 2010-2014 | Toyota | FJ Cruiser | Base |
| 2023 | Toyota | 4Runner | 40th Anniversary Edition |
| 2010-2024 | Toyota | 4Runner | Limited |
| 2020-2021 | Toyota | 4Runner | Nightshade |
| 2010-2024 | Toyota | 4Runner | SR5 |
| 2018-2024 | Toyota | 4Runner | SR5 Premium |
| 2010-2016 | Toyota | 4Runner | Trail |
| 2021-2022 | Toyota | 4Runner | Trail |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 77-46010 |
| Product type | In-Line Modules |
| Selected service module | R77-46010; quantity one |
| Sensor circuit | MAF on the intake tube; one sensor jumper pair |
| Control | On/off button on module case; blue LED indicates on |
| Mounting supplies | Two 2-inch hook-and-loop pieces 05-01244; four cable ties 05-60167 |
| Selected compatibility note | aFe Momentum GT cold-air intake, Magnum FLOW OE replacement filter and Silver Bullet throttle-body spacer; not included |
| Dyno comparison at 4,428 rpm | 203.90 versus 193.52 hp, +10.38 hp; 241.85 versus 229.56 lb-ft, +12.29 lb-ft |
| Dyno vehicle and conditions | 2020 Toyota 4Runner; Momentum GT intake, OE exhaust and OE wheels/tires; third gear, 2,000 rpm start, two small fans and one large fan; Dynojet 424xLC Linx, SAE smoothing 5 |
| Dyno date / correction qualifications | Module run July 24, 2023, SAE factor 1.05; baseline July 19, 2023, factor 1.03. Different dates and correction factors qualify the comparison. |
| Peak-value distinction | Peak power 234.59 versus 233.57 hp and torque 242.16 versus 235.87 lb-ft occur at different rpm; the marked +10/+12 claim is at a stated rpm |
| US / non-US application distinction | 4Runner 2010–2024; FJ Cruiser 2010–2014 US coverage, separately 2015–2023 non-US FJ manufacturer rows |
| Emissions restriction | Not currently CARB exempt; unavailable for California purchase or use on California DMV-registered vehicles per current manufacturer page |
| UPC | 802959778838 |
What's Included
- The 77-46010 kit includes one module R77-46010 with its MAF jumper harness.
- Two 2-inch hook-and-loop pieces 05-01244.
- Four cable ties 05-60167. No cabin switch, Bluetooth controller, replacement MAF sensor, air filter, intake coupler or throttle-body spacer is listed in this selected bill.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Manufacturer selected MAF module, current applications and compatibility notes
- Manufacturer selected twelve-page bill and installation guide
- Manufacturer modified 2020 4Runner dyno chart and conditions
- Exact selected named-application table
- Shop the aFe Power collection
FAQ
What is the 77-46010?It is one SCORCHER GT module with a MAF jumper harness, two 2-inch hook-and-loop pieces and four cable ties. A button on the case turns it on or off and a blue LED indicates on. Match the listed 4.0L V6 application and actual MAF connector.
Is it a four-mode turbo-boost module?This selection alters the MAF sensor signal on the listed naturally aspirated 4.0L V6. Its control is an on/off button on the case with a blue LED. The selected bill and guide do not include a four-mode cabin switch, Bluetooth controls, MAP/TMAP jumper pair or turbo-boost settings.
Which FJ Cruiser years are US applications?The current selected manufacturer table lists 2010–2014 FJ Cruiser without a non-US qualifier and separately marks 2015–2023 as non-US. The existing US Base row remains 2010–2014. The broader FJ headline and older manual do not extend that US named assignment. Current 4Runner model coverage is 2010–2024 with the 4.0L V6.
Does +10 hp mean a 10 hp peak power increase?No. The selected 2020 4Runner chart uses a Momentum GT intake with OE exhaust and wheels/tires. At 4,428 rpm it marks 203.90 versus 193.52 hp and 241.85 versus 229.56 lb-ft. Peak-value differences are 1.02 hp and 6.29 lb-ft at different rpm. Runs have different dates and SAE factors, so this is not a stock-car or every-vehicle guarantee.
What ECU-sleep procedure comes before MAF disconnection?Open the hood, close and lock the doors, then wait 30 seconds when cold or 20 minutes when warm. If warm and unable to wait, the guide gives battery disconnection as an alternative. Do not open doors or start the vehicle while the sensor is disconnected, because this may cause a check-engine light.
How is the MAF jumper connected?Locate MAF on the intake tube, press the original connector release and slide it off. Connect the female module connector to the MAF sensor and the male module connector to the female engine harness. Match actual keyed connectors, fully seat them and do not reverse or force the connections.
Where should the module mount and when can it be switched?Choose a dry location away from extreme heat and moving parts. The selected guide illustrates the passenger-side inner fender and directs securing the wiring with the supplied ties. Its case button can turn the module on or off while the vehicle is running or while the ECU is still on; the blue LED indicates on.
Can it work with intake parts or another tuner, and what restrictions remain?The exact manufacturer page identifies compatibility with its Momentum GT intake, Magnum FLOW OE replacement filter and Silver Bullet throttle-body spacer, which are separate parts. It does not recommend use with other tuners or power modules. Current California purchase and registered-vehicle restrictions apply; no generic EPA tag is treated as an exemption, and no blanket warranty or ECU-undetectability guarantee is added.
Installation Instructions
- Confirm aFe 77-46010 against the exact vehicle, 4.0L V6 engine and MAF connector. Inventory the actual components and read the complete selected guide and current vehicle service requirements.
- Read all twelve pages, inventory the module, two hook-and-loop pieces and four ties, and verify the exact 4.0L V6 application and MAF connector. Do not work on a hot engine. Current 4Runner coverage extends through 2024 while the older manual ends in 2023; later non-US FJ rows do not extend US named fitment.
- Put the ECU to sleep: hood open, doors closed and vehicle locked; wait 30 seconds when cold or 20 minutes when warm. If warm and unable to wait, the selected guide offers battery disconnection. Do not open doors or start the vehicle while the sensor is disconnected.
- Locate the Mass Air Flow sensor on the intake tube. Press the original connector’s release and slide it off the sensor without forcing it.
- Insert the MAF jumper between the sensor and original engine harness: female module connector to MAF sensor, male module connector to female engine harness. Compare with the selected installed diagram and confirm fully engaged keyed connections; they usually snap when seated.
- Choose a dry location away from extreme heat and moving parts. The guide illustrates the passenger-side engine-bay inner fender. Secure the module and route the harness safely using the supplied mounting material and cable ties. Check the actual vehicle clearance.
- Press the button on the module case to switch it on or off. The blue LED indicates on. The guide permits switching while the vehicle is running or while the ECU remains on. Follow the actual vehicle’s service requirements when restoring a battery connection used as the warm-engine alternative. No numeric fastener torque, fixed mileage check, fuel-grade change, cabin-switch route, spark-plug change or sensor-coding procedure is supplied.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
