Protect Your ARB Zenith Bumper on the 2024-2026 Toyota Tacoma
The ARB 6178714 bash plate kit adds a formed 3mm steel protection panel beneath the ARB Zenith winch bumper on a compatible 2024-2026 Toyota Tacoma. Its removable design protects vulnerable front components while retaining access to the winch for service.
Key Features
- Kit 6178714 is designed specifically for the ARB Zenith winch bumper
- Laser cut, press formed, and folded 3mm steel construction
- Protects vulnerable components beneath the front bumper
- Removable design provides access to the winch for service
- Mounting provisions support the factory radar, parking sensors, and fog lights
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2024-2026 | Toyota | Tacoma | Limited |
| 2024-2026 | Toyota | Tacoma | SR |
| 2024-2026 | Toyota | Tacoma | SR5 |
| 2024-2026 | Toyota | Tacoma | Trailhunter |
| 2024-2026 | Toyota | Tacoma | TRD Off-Road |
| 2024-2026 | Toyota | Tacoma | TRD PreRunner |
| 2024-2026 | Toyota | Tacoma | TRD Pro |
| 2024-2026 | Toyota | Tacoma | TRD Sport |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 6178714 |
| Product type | Zenith bumper bash plate kit |
| Compatible bumper | ARB Zenith winch bumper 3423230 |
| Position | Front |
| Material | 3mm steel |
| Standard finish | Silver |
| UPC | 9332018155061 |
| Warranty | 3 years |

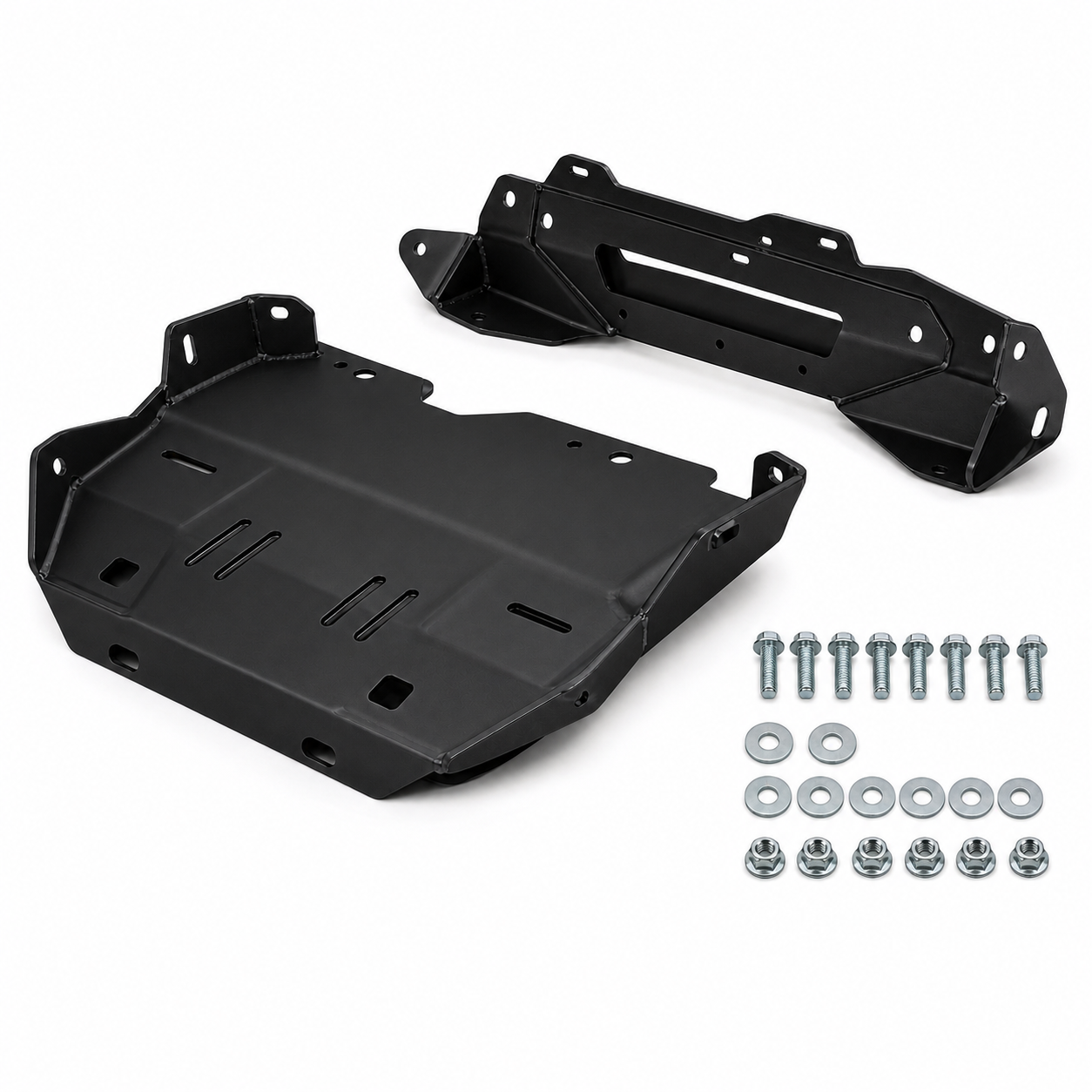

What's Included
- 1 ARB 6178714 Tacoma Zenith bash plate kit
- 1 main bash plate, part 4655693
- 1 upper winch cradle, part 37501167
- 8 M10x1.5x30 flange bolts
- 2 M10x25x3 washers and 6 M10x30x4 washers
- 6 M10x1.5 flange nuts
NOTE: Image above is for Refrence only and NOT what you will recieve.
About ARB
ARB develops vehicle protection and recovery equipment for four wheel drive applications. The Zenith system uses application specific bumper, mounting, and protective components engineered to work together on the supported vehicle.
FAQ
What is the 6178714?
It is the removable front bash plate kit used with the ARB Zenith winch bumper on a compatible 2024-2026 Toyota Tacoma.
Is the Zenith bumper included?
No. The Zenith winch bumper is a separate component with manufacturer part number 3423230.
Which Tacoma trims are supported?
Verified applications include Limited, SR, SR5, Trailhunter, TRD Off-Road, TRD PreRunner, TRD Pro, and TRD Sport trims for 2024-2026.
Can this bash plate be installed without the vehicle fitting kit?
No. The complete Zenith bumper installation also requires the vehicle specific fitting kit.
What is the bash plate made from?
It is made from laser cut, press formed, and folded 3mm steel.
Which factory components mount to the bash plate?
The installation transfers the factory radar, inner parking sensors, and fog lights to mounting locations in the bash plate assembly.
Does the bash plate support a winch fairlead?
Yes. Supported winch installations position the hawse or fairlead through the bash plate as directed in the ARB fitting guide.
Is professional installation recommended?
Yes. Installation is part of the complete Zenith bumper procedure and involves body trimming, sensor transfer, component alignment, and specified fastener torques.
Installation Instructions
- Confirm the package label identifies ARB 6178714 and read the complete ARB Zenith fitting guide before starting.
- Install and align the compatible Zenith bumper and vehicle fitting kit according to the ARB procedure.
- Transfer the radar, inner parking sensors, fog lights, and licence plate bracket to the bash plate assembly.
- Connect the radar, parking sensors, and fog lights before positioning the bash plate.
- Secure the bash plate to the winch cradle and bumper mounting points with the supplied M10 hardware.
- Align the plate parallel with the adjacent bumper edges, then tighten the fasteners to the specified torque.
- Set the radar face to 90 degrees from level ground within the specified tolerance.
- Verify sensor, radar, fog light, and winch operation before driving.
