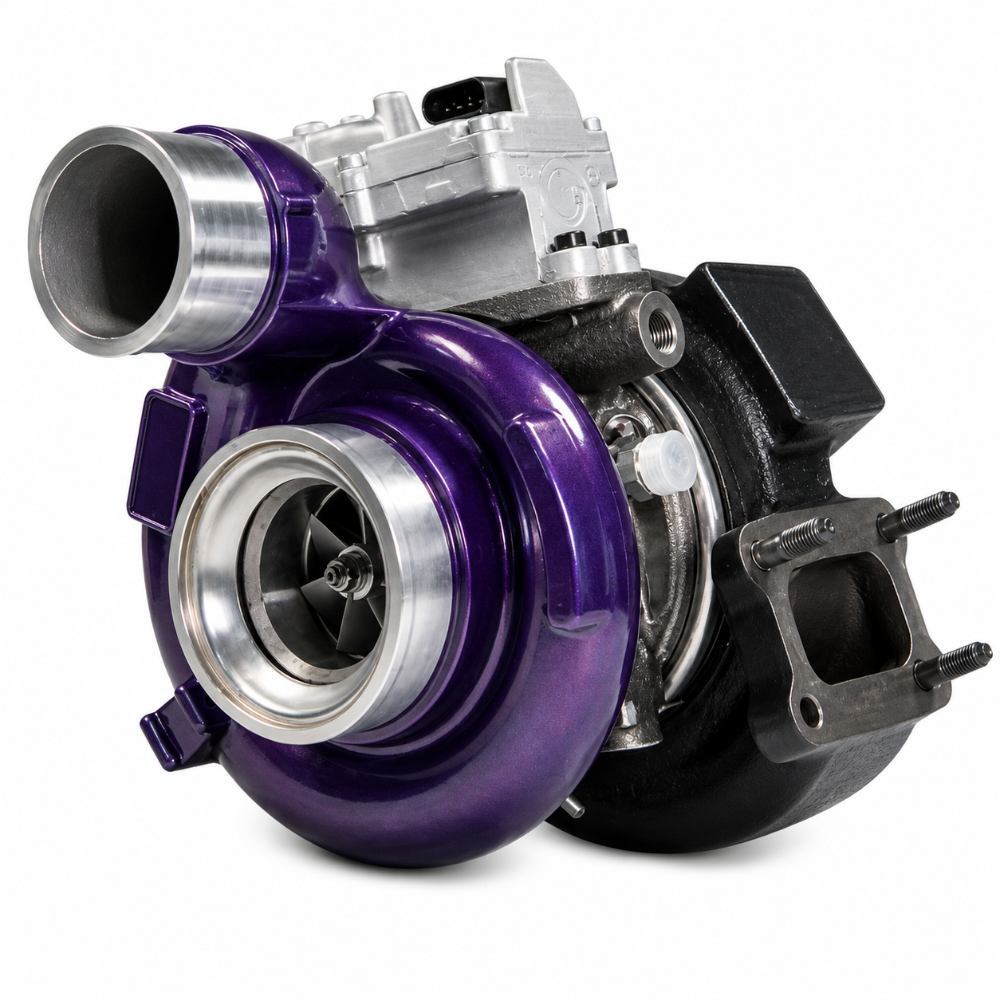

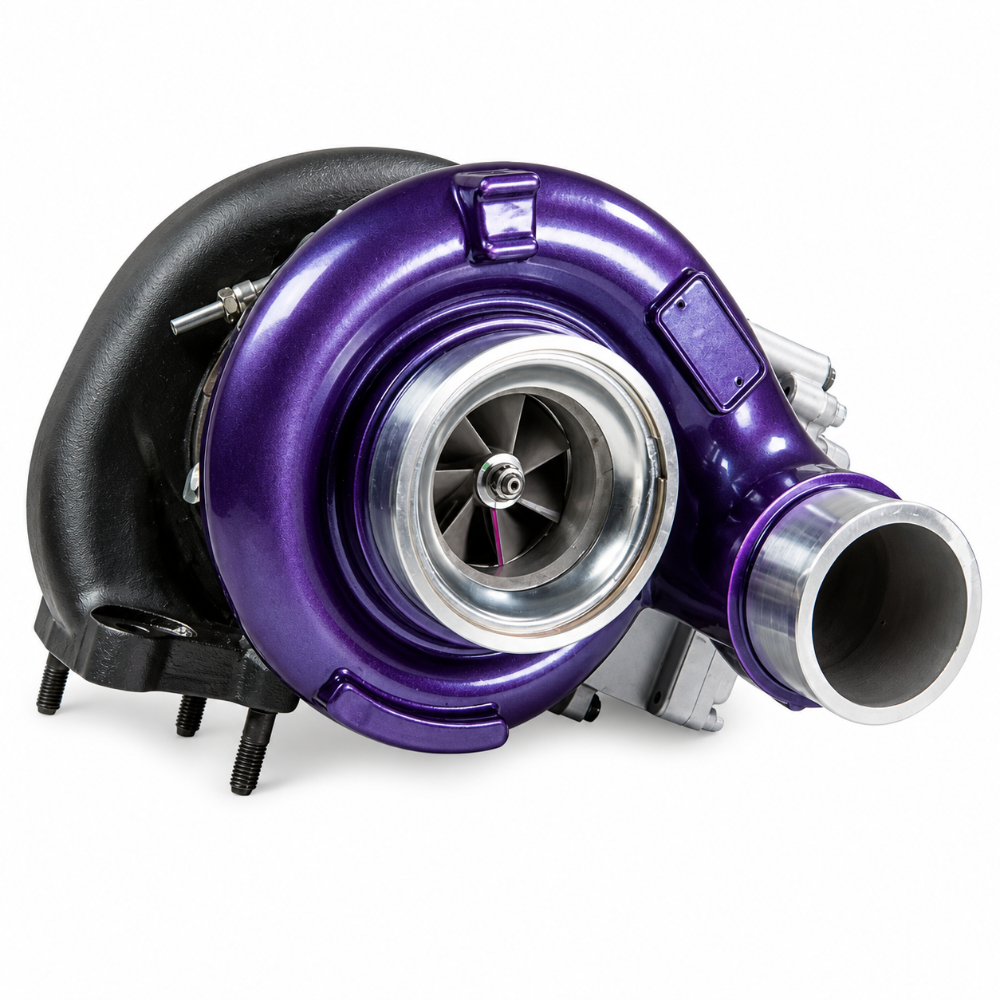

ATS Diesel Aurora 3000 VFR Variable Geometry Turbocharger for 2013–2018 Ram 2500/3500 6.7L Cummins
The ATS Aurora 3000 VFR is a high-performance, direct bolt-on replacement turbocharger for the 2013–2018 Ram 2500 and 3500 equipped with the 6.7L Cummins diesel engine.
This upgraded turbo features a larger billet compressor wheel and a mixed-flow turbine design that significantly improves spool-up time and throttle response compared to the factory Holset HE351VE.
It supports up to 650 rear-wheel horsepower while maintaining excellent drivability and towing capability. The variable geometry turbine (VGT) retains the factory actuator for precise boost control across the entire RPM range.
Key Features

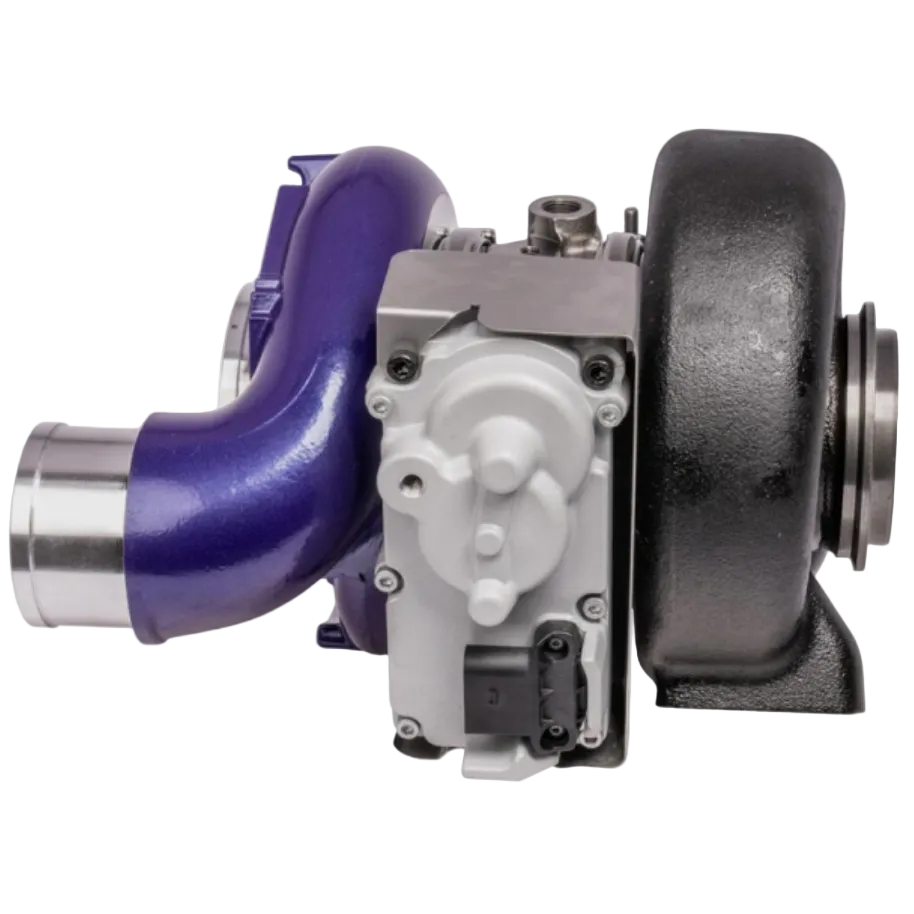

- Variable Geometry Turbine (VGT) – Retains the factory actuator for instant boost response and precise control with minimal turbo lag
- Billet Compressor Wheel – 58mm inducer, 9-blade design capable of flowing 65 lbs/min of air and spinning up to 160,000 RPM
- Mixed-Flow Turbine Wheel – 73/90mm Inconel wheel designed to handle extreme heat and high boost levels
- 360-Degree Stator Ring – Improves exhaust flow efficiency and can reduce EGTs by up to 200°F under load
- Direct Bolt-On Design – Matches OEM mounting points, piping, and electronics with no modifications required
- High Horsepower Capability – Supports up to 650 rear-wheel horsepower while maintaining street manners
Specifications
| Detail | Value |
|---|---|
| Brand | ATS Diesel |
| Type | Aurora 3000 VFR Variable Geometry Turbocharger |
| Compatibility | 2013–2018 Ram 2500/3500 6.7L Cummins |
| Compressor Wheel | 58mm Billet 9-Blade |
| Turbine Wheel | 73/90mm Mixed-Flow Inconel |
| Max Horsepower Support | Up to 650 RWHP |
| Country of Origin | United States |
| Warranty | 2-Year Unlimited Mileage Warranty |
Whats Included
- ATS Aurora 3000 VFR Turbocharger
- All Necessary Gaskets and Hardware
- Installation Instructions
Product Notes
- Direct replacement for the factory Holset HE351VE VGT turbo
- No core charge required
- EPA compliant for all 50 states
- Professional installation recommended
This Part Fits
| Year Range | Make | Model | Notes |
|---|---|---|---|
| 2013–2018 | Ram | 2500 6.7L Cummins | All submodels |
| 2013–2018 | Ram | 3500 6.7L Cummins | Pickup & Cab Chassis |
| 2013–2018 | Ram | 4500 / 5500 6.7L Cummins | All configurations |
Why Choose ATS Diesel?
- Industry leader in high-performance Cummins diesel upgrades
- Engineered and tested in-house on real-world Cummins platforms
- Built with aerospace-grade materials for extreme durability
- Proven in both street trucks and competition sled pulling applications
Frequently Asked Questions
- Q: Will this turbo fit my 2015 Ram 3500 6.7L Cummins?
- A: Yes, it is a direct bolt-on replacement for all 2013–2018 Ram 2500 and 3500 models with the 6.7L Cummins engine.
- Q: Does this turbo require any tuning?
- A: No tuning is required for normal operation. However, if you add supporting modifications (such as link pipes or intake), tuning is recommended for optimal performance.
- Q: How much power can this turbo support?
- A: The Aurora 3000 VFR is capable of supporting up to approximately 650 rear-wheel horsepower with proper supporting modifications.
- Q: Is this a variable geometry turbo?
- A: Yes. It retains the factory VGT actuator for precise boost control and quick spool-up across the RPM range.
Shipping & Handling
- Method: UPS Freight or LTL Carrier
- Availability: In stock – ships same or next business day
- Packaging: Double-walled cardboard box (22" x 18" x 18")
- Weight: 42 lbs (product) / 48 lbs (shipping)
