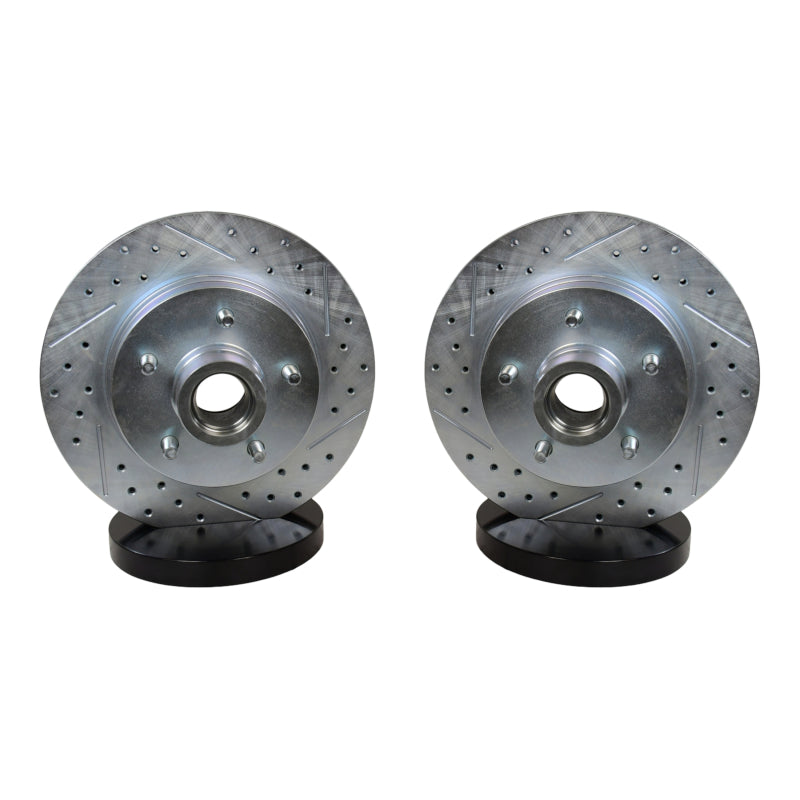

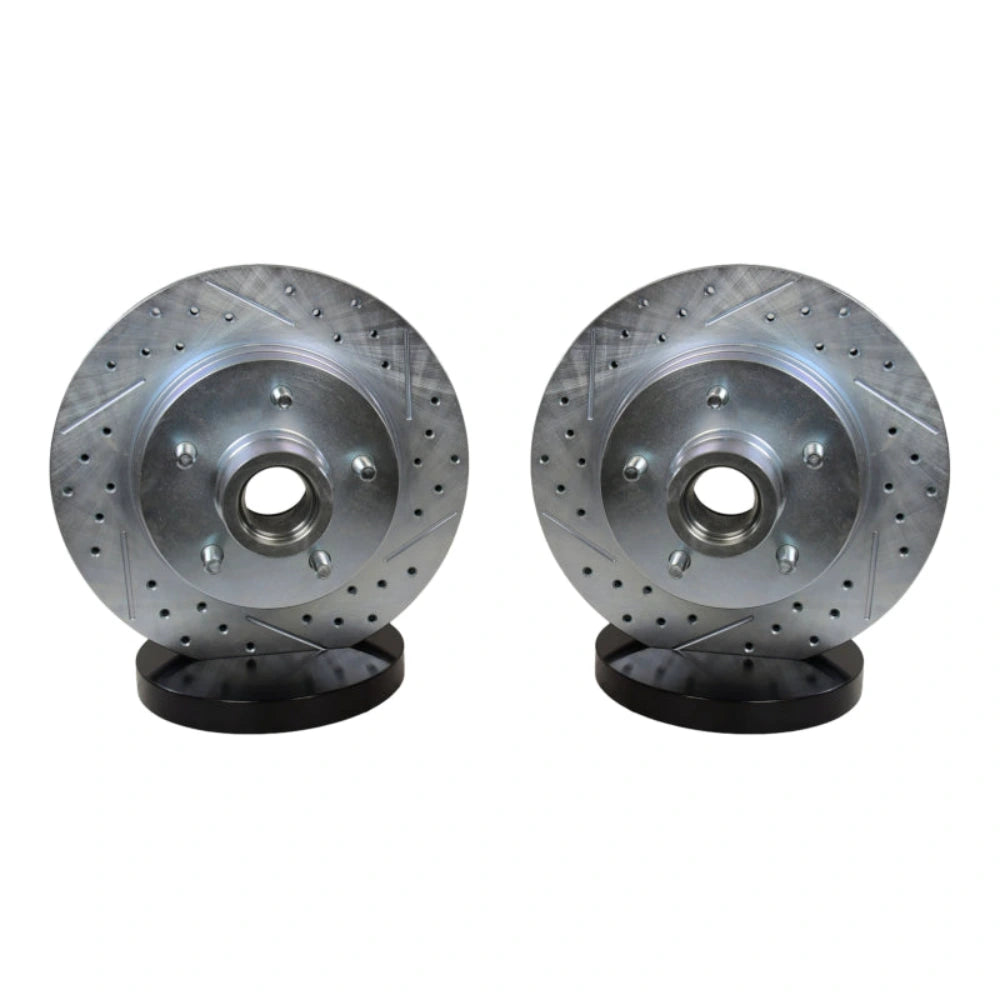

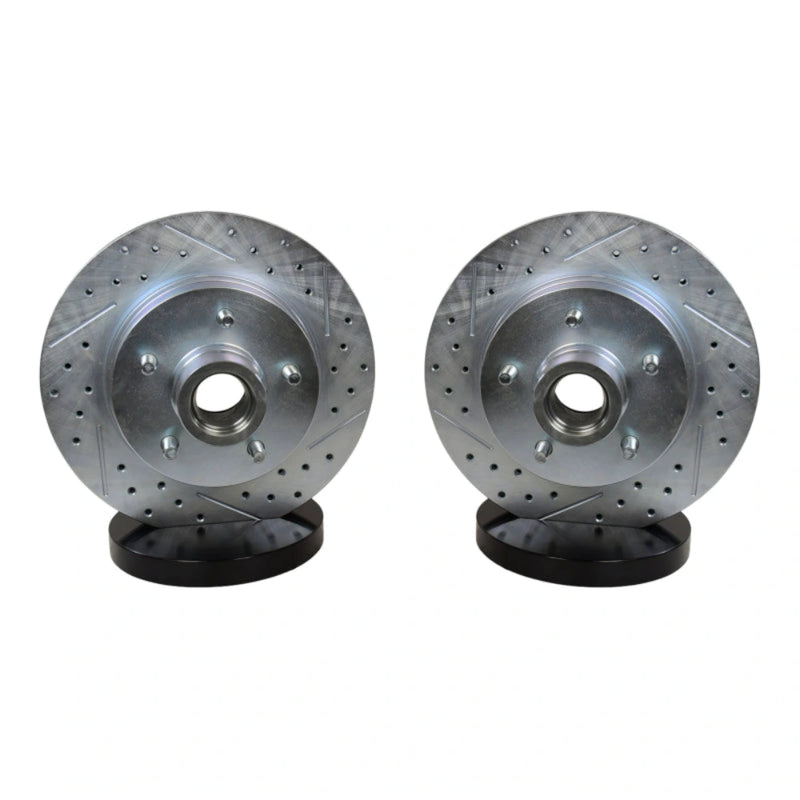

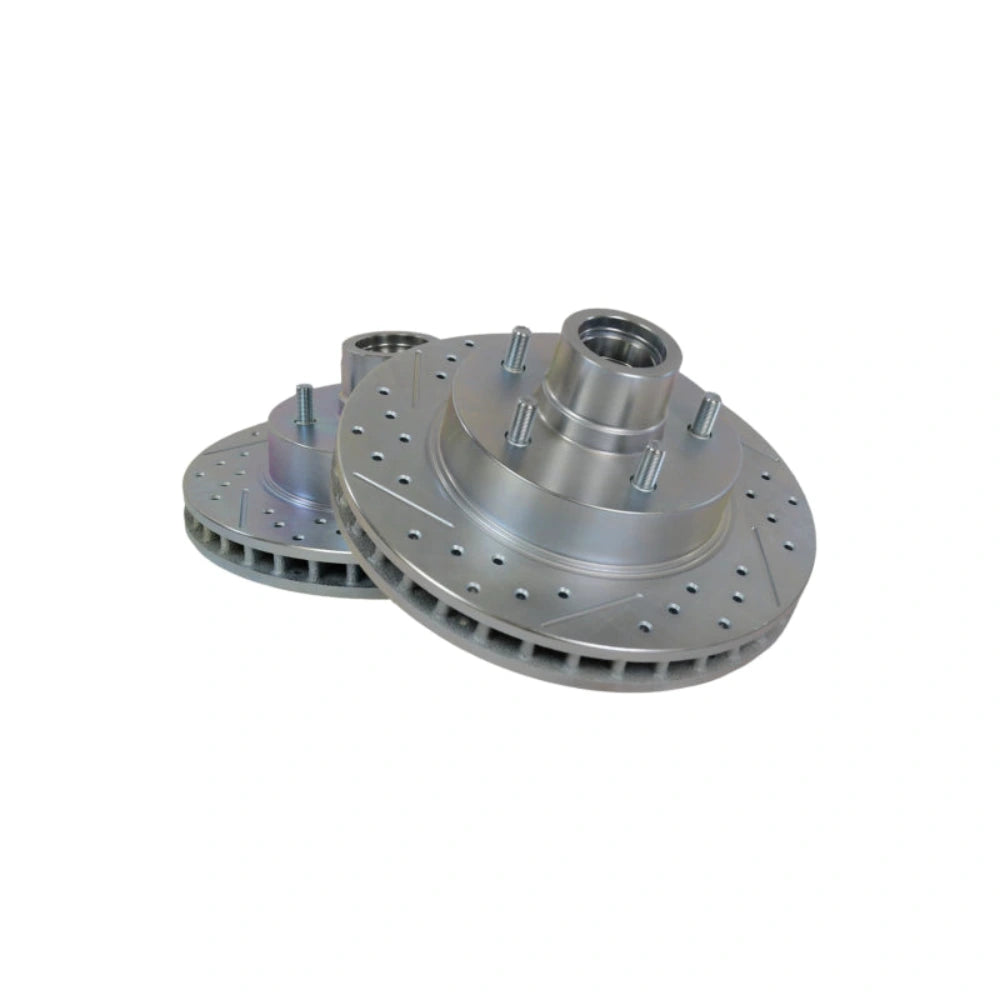

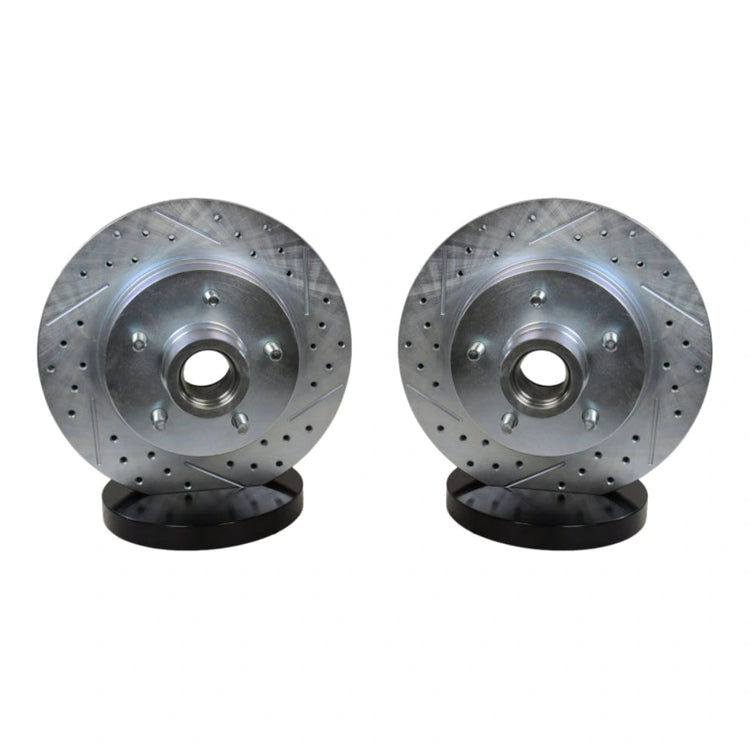

Baer Claw performance front rotors provide a direct replacement for select 1969 through 1991 Buick, Chevrolet, GMC, Oldsmobile and Pontiac applications. The 05516-020 set uses a mill balanced, vented cast iron rotor with a directional slotted and cross drilled surface, zinc plated finish and chamfered holes.
| Year Range | Make | Model or Scope | Position | Notes |
|---|---|---|---|---|
| 1969-1991 | Buick | Various select applications | Front | Confirm exact vehicle application before ordering |
| 1969-1991 | Chevrolet | Various select applications | Front | Confirm exact vehicle application before ordering |
| 1969-1991 | GMC | Various select applications | Front | Confirm exact vehicle application before ordering |
| 1969-1991 | Oldsmobile | Various select applications | Front | Confirm exact vehicle application before ordering |
| 1969-1991 | Pontiac | Various select applications | Front | Confirm exact vehicle application before ordering |
Baer lists this part for various applications rather than a single model list. Confirm the vehicle year, make, model, engine, drivetrain and existing rotor dimensions before ordering the Baer 05516-020 set.
| Detail | Value |
|---|---|
| Product line | Baer Claw Performance Rotors |
| Manufacturer part number | 05516-020 |
| Rotor position | Front |
| Product format | Disc brake rotor set |
| Quantity | Pair |
| Outside diameter | 11.87 inches |
| Nominal thickness | 1.28 inches |
| Discard thickness | 1.210 inches |
| Overall height | 4.96 inches |

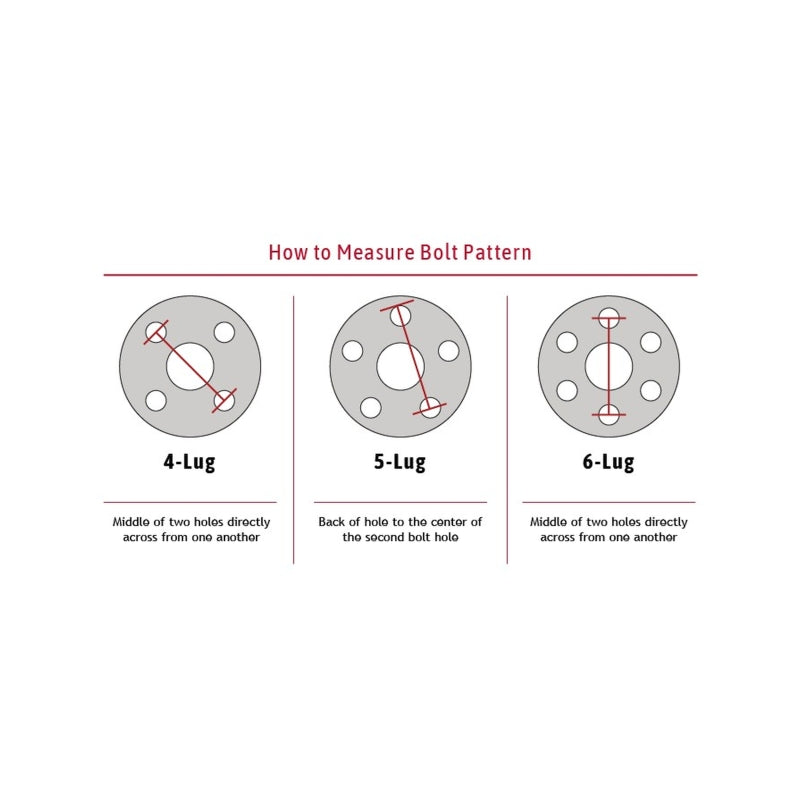

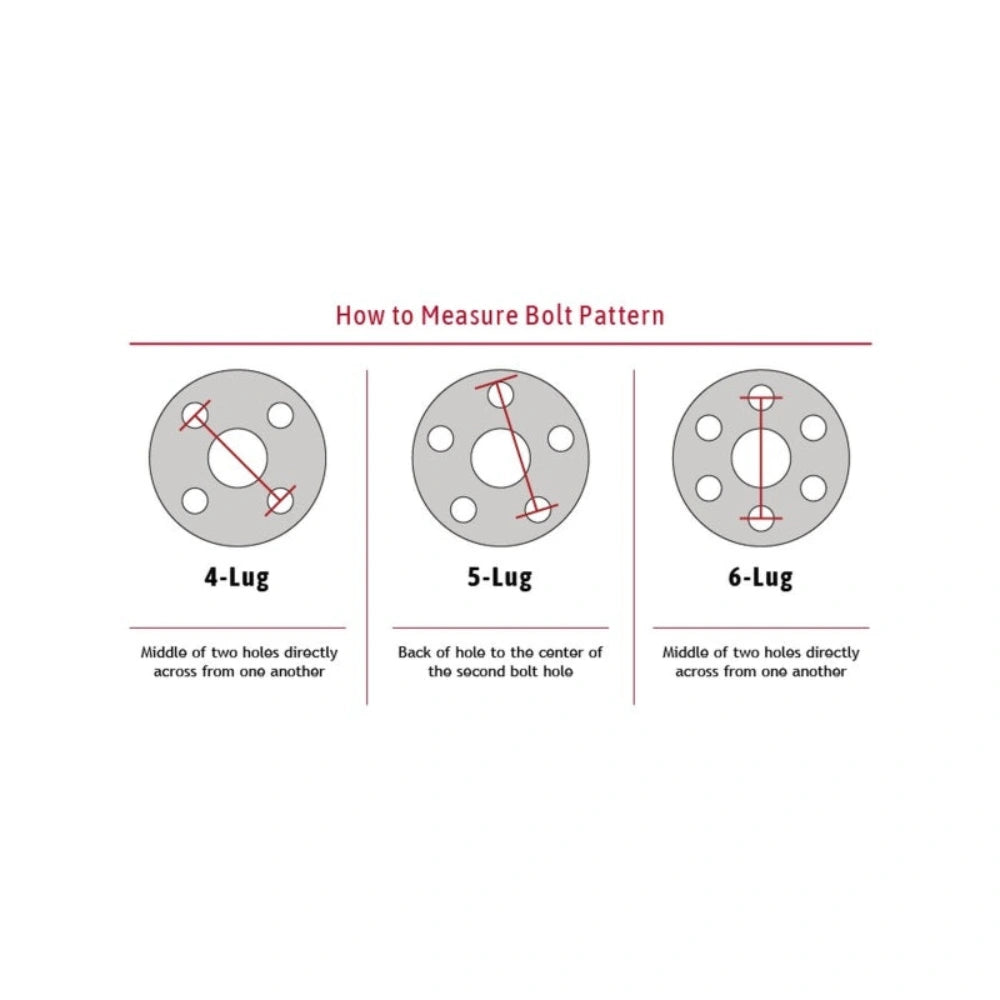

| Mounting bolt circle | 5.0 inches |
| Mounting bolt holes | 5 |
| Stud thread size | 1/2-20 inches |
| Construction | Full cast |
| Material | SAE-ASTM GRADE G3000 grey cast iron |

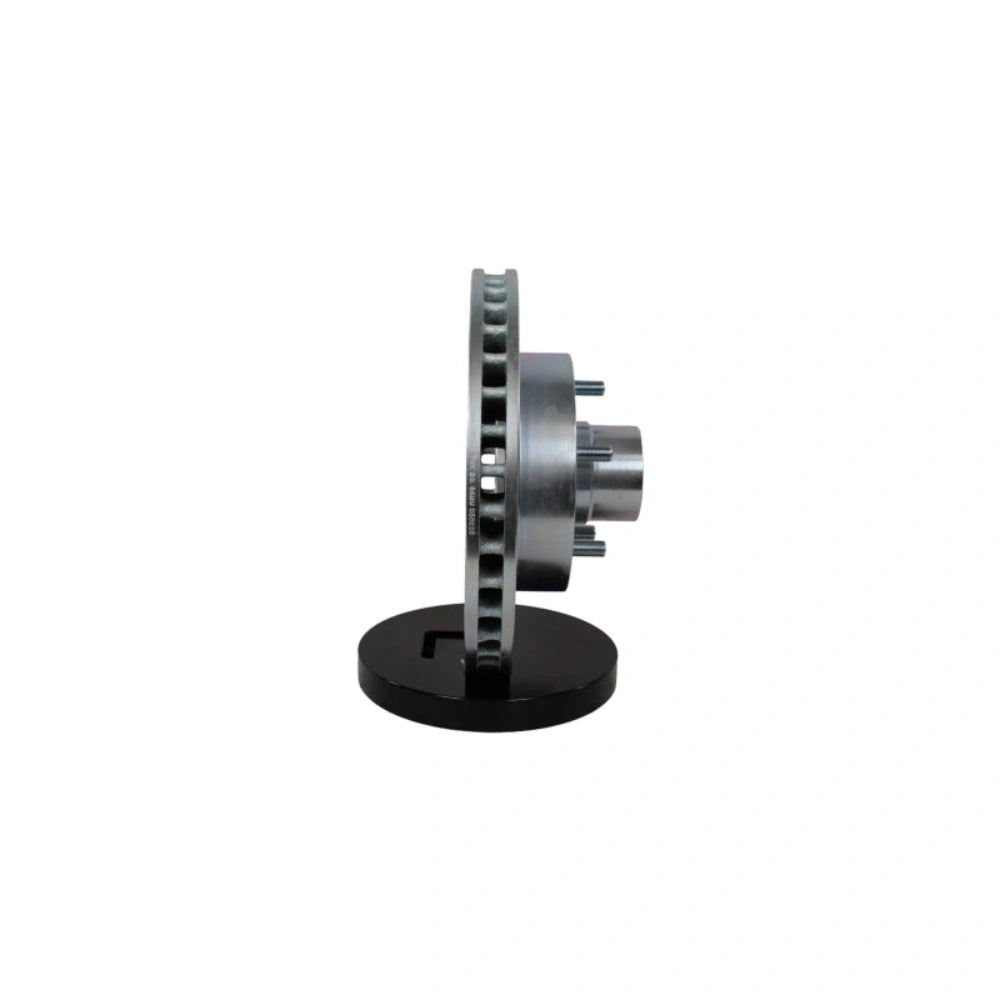

| Rotor type | Conventional, vented and directional |
| Surface type | Slotted and cross drilled |
| Finish | Zinc plated |
| ABS tone ring | Not included |
| Bearings | Not included |
| Races | Included |
| UPC | 844165001096 |
| Warranty | Manufacturer's limited one year warranty |
Baer Brakes develops performance brake components for classic and modern vehicles. The Claw line combines drilled and slotted rotor surfaces with vented cast construction and zinc plated finishes for direct replacement applications. Baer identifies this configuration as 05516-020.
This is a front disc brake rotor set for select Buick, Chevrolet, GMC, Oldsmobile and Pontiac applications from 1969 through 1991.
What vehicles does this rotor set fit?It fits various select applications from the listed makes and years. The manufacturer does not provide a single model list on the product page, so verify the vehicle and existing rotor dimensions before ordering.
Is this a front or rear rotor?It is a front rotor set for the applications listed in the fitment table.
Are the rotors sold individually?No. The package is a pair intended for one axle.
What are the rotor dimensions?The outside diameter is 11.87 inches, nominal thickness is 1.28 inches, discard thickness is 1.210 inches, and overall height is 4.96 inches.

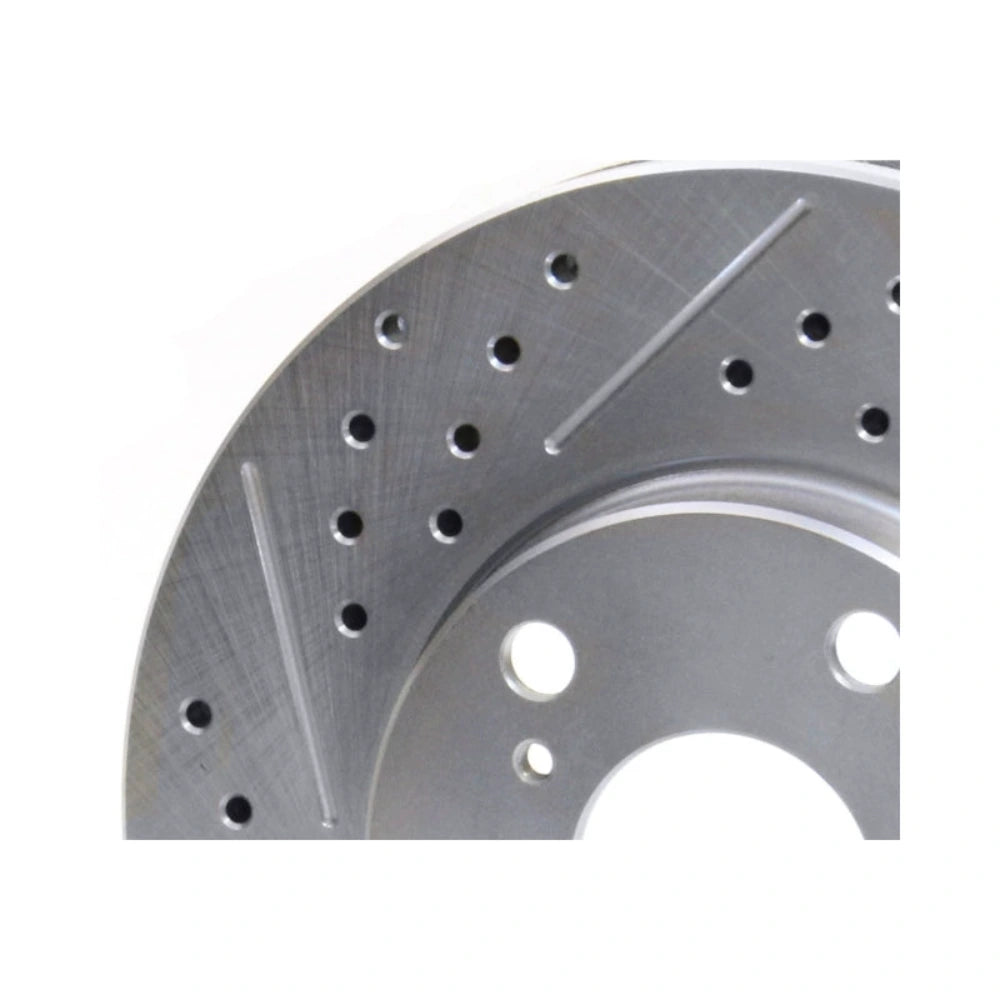

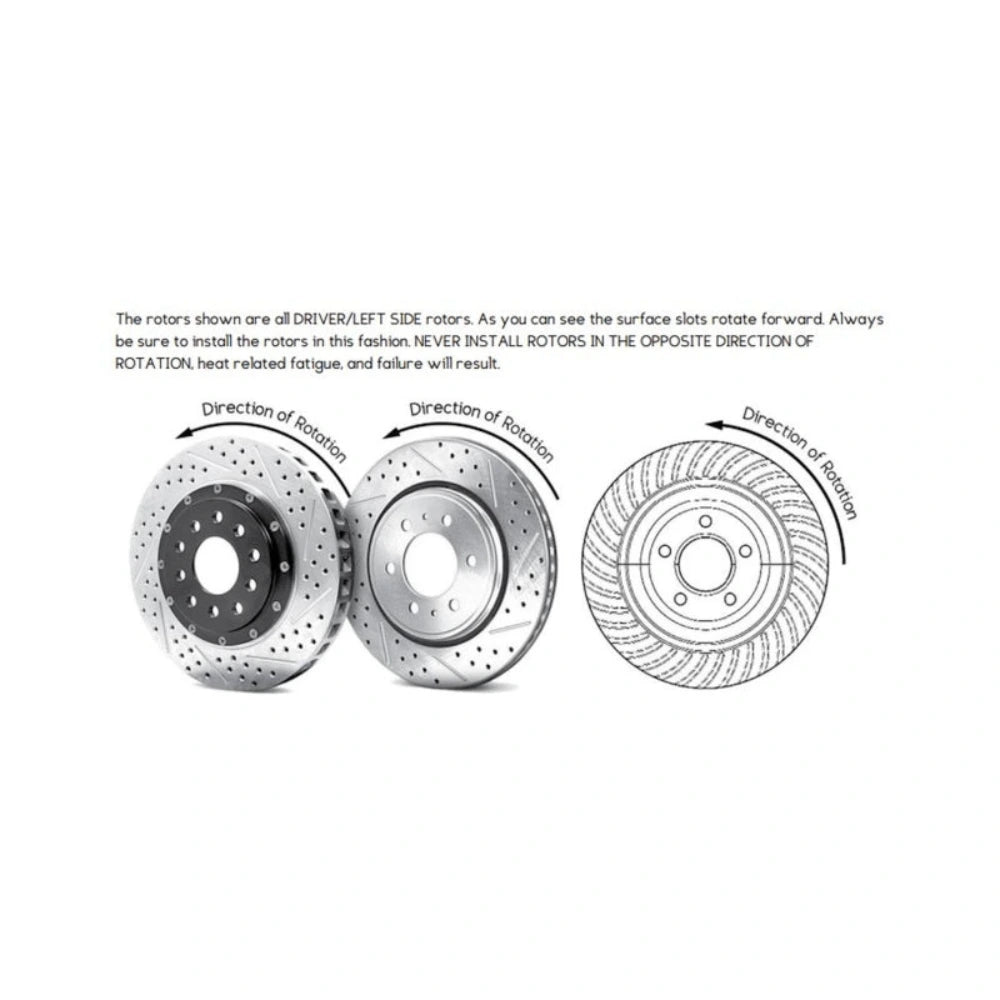

What surface design do the rotors use?The friction surface is directional, slotted and cross drilled. The holes are chamfered to help minimize stress at the hole edges.
Is the finish corrosion resistant?Yes. The rotors use a zinc plated finish and a rust resistant coating.
Are bearings or an ABS tone ring included?No. Bearings and an ABS tone ring are not included. Races are listed as included by the manufacturer.
What brake system do these rotors use?They are conventional vented disc brake rotors with a five lug mounting pattern. Confirm the vehicle's brake hardware and dimensions before installation.
What warranty applies?The manufacturer lists a limited one year warranty. Keep the purchase record and follow the manufacturer's warranty process.
What should I verify before ordering?Confirm the year, make, model, engine, drivetrain, front position, outside diameter, thickness, overall height and mounting pattern against the vehicle.
WARNING: This product can expose you to chemicals including Toluene Diisocyanate and Nickel, which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
